Kubota B6000/B6000E Tractor Service Manual, 1970–1980 (P/N 70000-70168)
52 Pages • 1 Printable PDF (English) • Download

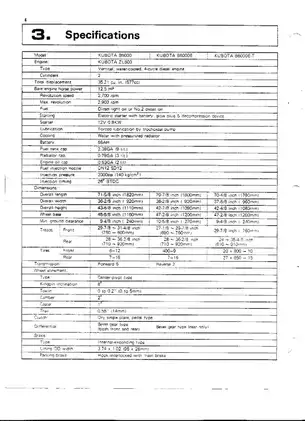

Kubota Models Covered & Key Technical Specifications
Models: B6000, B6000E, B6000E-T (specifications and shared maintenance standards)
Sub-models / Variants: 4WD (B6000), 2WD (B6000E, B6000E-T)
Model Years: 1970–1980 (1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980)
-
Engine: Kubota ZL600 2-cylinder diesel
-
Displacement: 577 cc
-
Power Output: 12.5 HP at 2,700 rpm (bare engine)
-
Injection Pressure: 2,000 psi (140 kg/cm²)
-
Electrical System: 12V 0.8KW starter, 65AH battery
-
Hydraulic Pump Capacity: 10.8 liters/minute
-
PTO Speeds: 560, 840, 1,350 rpm (at 2,700 engine rpm)
-
Transmission: Selective type, 6 forward, 2 reverse speeds (B6000, B6000E, B6000E-T)
-
Brakes: Internal-expanding type

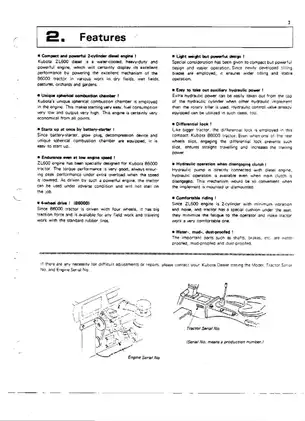

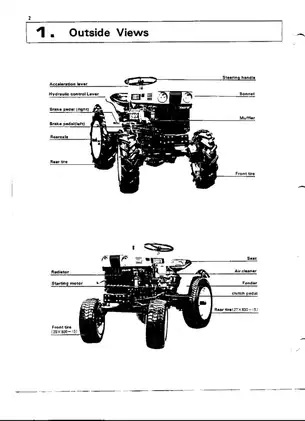

Kubota Manual Features & Selected Content Preview
This Kubota tractor service manual (P/N 70000-70168) covers the B6000 4WD and B6000E 2WD compact tractors with the ZL600 diesel engine. It also provides B6000E-T specifications and maintenance standards shared with the B6000E.
PDF Search and Wiring Diagram Detail
Text search and diagram legibility: PDF text search and embedded bookmarks are unavailable. Zooming makes most wire codes easier to read, though some small switch-contact and terminal markings remain difficult to distinguish.

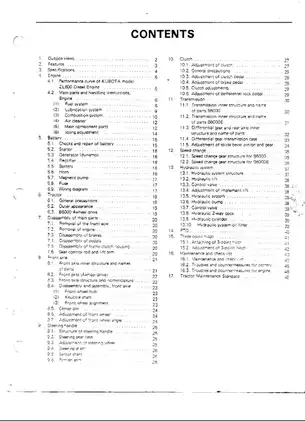

The download is one printable, English-language 52-page PDF, including 49 pages of manual content, the front cover, the contents page, and the back cover.
Engine, Drivetrain, and Hydraulic Lift Service
The topics below are selected workshop procedures and references. The manual also shows the fuel-system bleed points and covers engine idle adjustment.
-
Engine and fuel system: Engine removal, injector spray-pattern testing, shim-based injection timing adjustment, cold valve-clearance checks, and cylinder-head and crankshaft assembly.
-
Front axle and steering: Driven front-axle disassembly, two-wheel-drive hub and knuckle service, toe-in adjustment, and steering gear-case service.
-
Clutch and brakes: Clutch and brake pedal adjustments, release mechanism checks, brake disassembly, and differential-lock pedal adjustment.
-
Transmission and differential: Separate B6000 and B6000E gear layouts, differential and transmission case disassembly and reassembly, and spiral bevel gear setup.
-
Hydraulic lift and PTO: Gear pump and control valve operation, single-acting cylinder, implement lift adjustment, PTO shaft dimensions, and B6000 three-point hitch installation.
-
Electrical troubleshooting: Wiring diagram with wire-color codes and switch contacts, starter brush data, generator and rectifier specifications, and battery fault charts.
This manual suits mechanics and experienced owners who are comfortable with tractor disassembly and measuring gear, shaft, and bearing clearances.
ZL600 Injection, Engine Assembly, and Cooling
The fuel schematic and engine performance curve accompany the service instructions. The fuel section describes the Model PFR injection pump and nozzle holder, including how to check fuel atomization and how timing shims affect the injection point.
The pump precautions explain how overtightening the delivery-valve holder can crack the housing or bind the control rack. They also caution against disturbing sealed pump adjustments.
Engine assembly coverage includes cylinder-head tightening, crankshaft bearing assembly, gear-train timing marks, valve timing, and the decompression device. The lubrication section shows how the trochoidal pump supplies oil to the crankshaft and rocker arms.
A fan-belt tension diagram supports cooling and generator-drive checks. The service manual refers readers to the separate Instruction Manual for additional radiator precautions and guidance on coolant additives.
Axle, Steering, Clutch, and Transmission
Separate transmission and shift-gear drawings help identify the B6000 front-drive hardware and the B6000E gear layout before teardown. Step-by-step instructions cover differential and transmission case disassembly and reassembly, with shim selection, backlash checks, and tooth-contact checks for the spiral bevel gears.
The front axle section distinguishes the driven axle assembly from the two-wheel-drive hub and knuckle arrangement. Steering procedures cover the steering shaft, sector shaft, gear case, and pitman arm alignment.
The dry single-plate clutch section explains how insufficient pedal free play loads the release bearing and can lead to bearing seizure or scorched disc facings.
Hydraulic Lift, PTO, and Three-Point Hitch
The hydraulic diagrams show oil routing and control-valve operation, including relief-valve adjustment and the external two-way cock. On the B6000, the lift shares oil with the transmission and the engine-driven pump operates even with the clutch disengaged.
The PTO section supplies shaft dimensions and speed references. Implements that require the three-point hitch apply to the B6000 only. The hitch section covers installation and adjustment of the upper link, lift rods, and check chains.
Electrical Fault Tracing and Maintenance Standards
The wiring diagram shows the starting, lighting, charging, and glow-plug circuits. Component sections cover the starter, generator, silicon-diode rectifier, and magnetic fuel pump.
The battery and engine troubleshooting charts link symptoms to likely causes and checks, including hard starting, low power, sudden stopping, and abnormal exhaust.
Chassis tables give dimensions, clearances, backlash, and wear limits for gears, shafts, bearings, brakes, and clutch components. The manual includes tightening torques and identifies where hardened 7T bolts are used. The maintenance checklist covers oil, coolant, battery, filters, and lubrication points.
Safety note: Use secure supports during disassembly, and follow the manual’s handling precautions and torque specifications when servicing heavy components or pressurized hydraulics.
Sample Valve, Transmission Oil, and Steering Data
The ZL600 valve adjustment procedure specifies a clearance of 0.0079–0.0098 in (0.2–0.25 mm) with the engine cold.
The maintenance checklist lists a transmission case oil capacity of 2.38 gal (9 L). The chassis tables list a 15:1 steering gear ratio for the B6000 and the B6000E (T) group.
