Kubota L210 Tractor Service & Repair Manual (OEM)

• Covers the Kubota L210 tractor equipped with the Z1100-A 2-cylinder diesel engine and 6-speed transmission.
• This 124-page PDF service reference documents factory-recommended tolerances and assembly specifications for the L210 series build.
• Includes factory engineering data, maintenance benchmarks, and exact settings required for system-level diagnostics.
• Contains over 70 illustrated mechanical diagrams, exploded system views, and technical specification tables.
• Details the power take-off (PTO) gear system, differential lock mechanism, ball screw steering, cell starter motor, DC charging dynamo, voltage regulator, and Dowty hydraulic pump.
• Features electrical wiring diagrams, fuel consumption curves, bolt tightening torque charts, checks and lubrication tables, hydraulic piping schematics, longitudinal cross-section views, and exploded gear pump views.

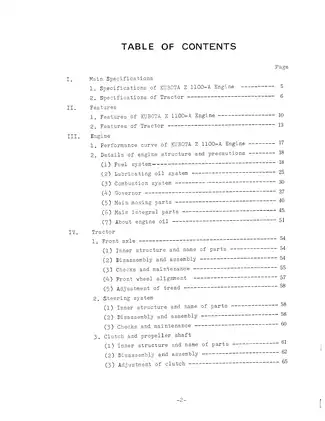

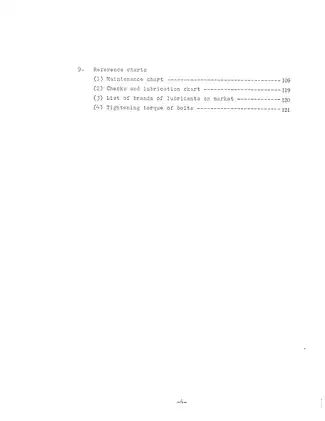

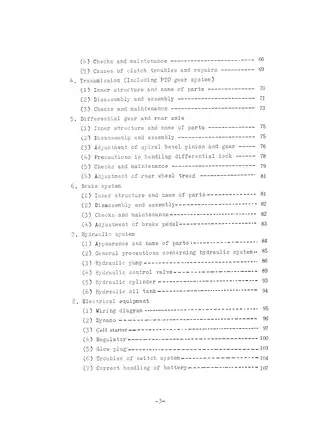

Component and System Documentation

The Kubota L210 service manual provides structured technical summaries for primary tractor systems, serving as an essential resource for comprehensive repair and troubleshooting. This includes the Z1100-A diesel engine, front axle geometry, steering assembly, manual transmission, and the hydraulic lifting device. You will find structural assembly details, checking procedures, and maintenance intervals for core components like the fuel injection pump, lubricating oil system, and electrical charging circuit. It outlines essential engine timing marks, valve clearances, and standard piston dimensions. Specific settings for the hydraulic control valve and brake system are also covered, giving mechanics the exact numbers needed on the workbench. It includes step-by-step instructions for tasks that typically require expensive dealer service, such as calibrating the fuel injection timing, adjusting the spiral bevel pinion backlash, setting the clutch release lever height, and overhauling the hydraulic pump. Having these exact factory clearances and dimensional limits prevents trial-and-error component fitting, allowing mechanics to accurately shim the differential or rebuild the steering gear box without risking costly comebacks. Please note that improper adjustment of heavy machinery systems poses severe risks; mechanical work should only be conducted by, or under the guidance of, qualified professionals.

Technical Data Preview

Engine timing is documented precisely at 24 degrees before top dead center. When the engine is cold, intake and exhaust valve clearances must be set to 0.008–0.010 in (0.2–0.25 mm). Flywheel bolt torque requires 79.5–86.7 lb-ft. For cylinder head installation, tightening values are firmly set at 148–155 lb-ft for nuts 1 and 2, and 36–43.5 lb-ft for nut 3. System capacities are clearly stated; for instance, the cooling system holds 7.5 liters. Fuel injection nozzle pressure operates at 1990 psi. Proper maintenance relies entirely on these factory benchmarks to preserve the tractor's longevity.
