2007 Kubota B2320, B2620, B2920 & B2320NARROW Tractor Operator's Manual (P/N 6C300-6311-6)

This 2007 Kubota operator's manual (Code No. 6C300-6311-6) covers daily operation and scheduled maintenance for B2320, B2620, B2920, and B2320NARROW compact tractors with HST or manual transmissions.

Searchable Text, Service Bookmarks and PDF Contents

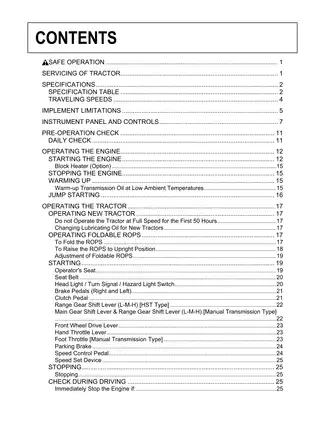

Finding maintenance topics: The main text supports PDF search, with embedded bookmarks for chapters and individual service topics. Cover text and some labels within illustrations are outside text search.

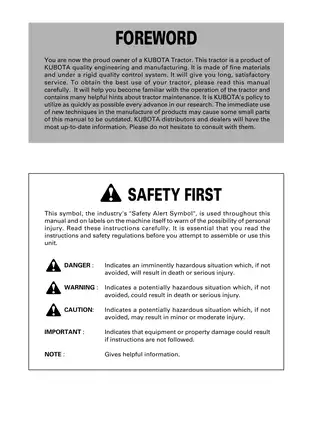

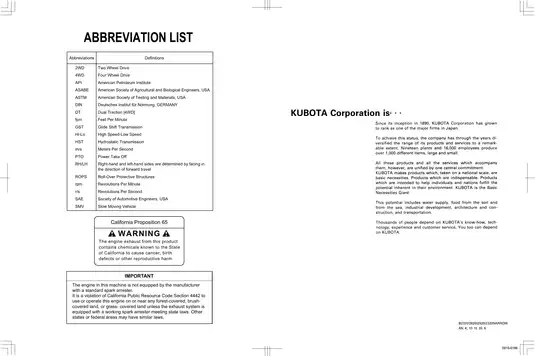

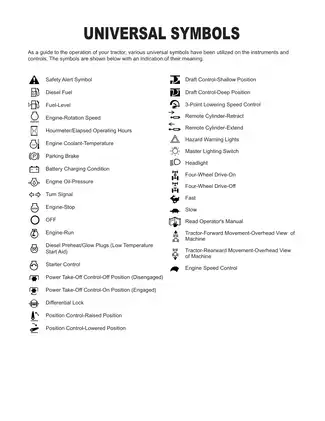

Supplied as one printable English PDF, the 88-page manual includes one combined front-and-back cover page, seven preliminary pages, eight Safe Operation pages, and 72 numbered main pages. These are all included in the total.

Operating Controls, Implement Setup and Scheduled Service

The selected coverage below highlights operating and maintenance topics. Additional sections explain jump starting and preparing the tractor for storage and return to service.

• Controls and interlocks: Instrument identification, Easy Checker(TM) warnings, Operator Presence Control (OPC) tests, starting-system checks, and PTO engagement.

• Hydraulics and attachments: Hitch adjustment, position and quarter-inching controls, auxiliary outlets, optional dual remote hydraulics, and implement restrictions.

• Engine and fuel maintenance: Oil and filter replacement, air cleaner servicing, fuel filter cleaning and replacement, and fuel-system bleeding.

• Cooling system care: Radiator screen cleaning, hose inspections, fan belt adjustment, cooling-system flushing, and coolant changes.

• Drivetrain service: Clutch and brake pedal adjustment, transmission fluid changes, HST and hydraulic filter replacement, and front axle maintenance.

• Wheels and ballast: Tire pressure tables, wheel tread arrangements, wheel-fastener torque data, front weights, and rear ballast options.

Written for tractor owners and operators, the manual explains regular maintenance and directs major service and parts requirements to a Kubota dealer.

Transmission Layouts and Starting-System Checks

The specification tables distinguish the covered engine and transmission combinations. B2320DTN-1 is shortened to B2320DTN in the operating sections; its manual gearbox and the B2320DT gearbox provide nine forward and three reverse speeds. HST versions have three travel ranges.

Separate Foot and Hand Controls illustrations identify each transmission layout. Starting-system tests cover the manual gear-selector switch or HST speed-control pedal switch, along with PTO and operator-seat interlocks.

Hitch Controls and Remote Hydraulics

Position control applies to B2320DTN and B2320HSDN; the remaining variants use a quarter-inching valve. The Hydraulic Control Unit Use Reference Chart relates attachment types to top-link mounting positions and check-chain settings, helping owners choose the hitch arrangement for their implement.

For tractors equipped with dual remote hydraulics, the manual explains loader valve movement, float, and regeneration. Control Lever and Hydraulic Hose Connections illustrations accompany port-flow tables and a Colored Coupler table identifying cylinder connections.

The hydraulic motor warning explains how an unsuitable connection can damage motor seals when regeneration is selected. The valve-lock warning also makes clear that locking the lever cannot prevent attachment leak-down or provide support during maintenance or repair.

PTO Equipment, Wheel Settings and Ballast

PTO instructions distinguish rear and mid-PTO use and explain stationary operation. Mid-PTO coverage excludes B2320DTN. Operating guidance also addresses differential lock engagement and the HST speed set device; foldable ROPS instructions exclude B2320DTN and B2320HSDN.

Rear wheel tread adjustment is documented for the narrow variants. Front tread is fixed, and the other models also have fixed rear tread. Wheel and tire tables separate USA configurations from those supplied elsewhere.

Ballast sections distinguish front-end weights, rear tire liquid ballast, and optional rear wheel weights for the narrow tractors. Front tires must not contain liquid ballast. Attachment tables specify drawbar loads and model-dependent limitations for loaders and other implements.

Maintenance Procedures and Troubleshooting Limits

Service Intervals and Lubricants, Fuel and Coolant tables organize scheduled work, lubricant requirements, and capacities. Engine oil quantities include the filter and vary by engine; transmission quantities distinguish manual and HST versions.

Step-by-step instructions cover fuel-system bleeding, pedal adjustments, cooling-system flushing, front axle pivot adjustment, and front axle oil changes. HST transmission filter replacement has its own procedure, separate from the hydraulic filter instructions. Fuel filter notes explain why dirt or water can accelerate wear in the fuel pump and injection nozzles.

The Engine Troubleshooting table pairs starting difficulties, low power, unexpected stopping, smoke, and overheating with possible causes and corrective measures. Electrical material covers battery care, wiring inspections, fuse locations, and the Protected circuit table; electrical wiring schematics are not included.

Service scope: This operator's manual does not provide internal engine or transmission overhaul procedures. Valve-clearance adjustment, injection-nozzle pressure testing, and injection-pump checks are assigned to a Kubota dealer.

Examples of Pedal and Fan Belt Adjustment Data

Clutch pedal free travel is specified as 20–30 mm (0.8–1.2 in.), while brake pedal free travel is 30–40 mm, measured at the top of the pedal stroke. The brake instructions require equal free travel at both pedals.

The fan belt section gives a deflection range of 7–9 mm (0.28–0.35 in.) under moderate thumb pressure at the middle of the span between pulleys.
