Kubota B2320 / B2620 / B2920 Tractor Workshop Manual (2008–2015)
406 Pages • 1 Printable PDF (English) • Download
Kubota Models Covered & Key Technical Specifications
Models: B2320, B2620, B2920
Sub-models / Variants: B2320DT (engine: D1005-E3-D22), B2320HSD (engine: D1005-E3-D22), B2620HSD (engine: D1105-E3-D22), B2920HSD (engine: D1305-E3-D22)
Model Years: 2008–2015 (2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
-
Engine: 3-cylinder diesel, E-TVCS
-
Engine Displacement: 1001 cm3 (D1005), 1123 cm3 (D1105), 1261 cm3 (D1305)
-
Horsepower: 17.2 kW to 21.6 kW (23 HP to 29 HP)
-
Rated Revolution: 2800 rpm
-
Transmission: B2320DT: Gear shift (9 forward, 3 reverse); B2320HSD, B2620HSD, B2920HSD: Main-hydrostatic with 3-range gear shift
-
Steering: Integral type power steering
-
Fuel Tank Capacity: 26 L (6.9 U.S. gals)

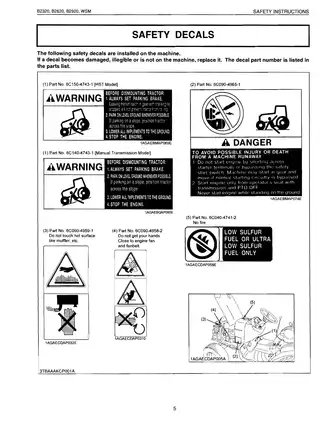

Kubota Manual Features & Selected Content Preview
Kubota workshop service manual (WSM) for the 2008–2015 B2320, B2620, and B2920 compact tractors. Engine coverage is matched to the D1005-E3-D22, D1105-E3-D22, and D1305-E3-D22, respectively.
Searchable Text and Wiring-Diagram Limitations
Search and diagram detail: OCR text supports searches across the service chapters, with recognition errors in some labels; embedded bookmarks link to General and the nine system sections. Small wire codes require zooming, and part of the controller area is clipped in the main wiring drawing.
A 406-page PDF in English, supplied as one printable file, including 31 blank separator and end pages.
Diesel, Drivetrain and Hydraulic Repair
The following selected coverage highlights outline the main workshop work. Other topics include tire and tread setup and implement-limit tables.
-
Engine repair: Compression testing, engine separation, cylinder-head and valve work, timing-gear service, piston and connecting-rod inspection, crankshaft service, and injection-nozzle testing.
-
Transmission and PTO: Clutch adjustment and alignment, HST neutral and maximum-speed adjustment, relief-pressure checks, internal transmission disassembly, differential service, and rear/mid-PTO power flow.
-
Axles and brakes: Rear-axle service, front-axle bevel-drive setup, wet-disc brake inspection, and brake-linkage adjustment.
-
Steering and hydraulics: Pump flow testing, power-steering body repair, relief-valve checks, lift-arm adjustment, and three-point hydraulic cylinder and control-valve service.
-
Electrical diagnosis: Tractor wiring, OPC circuits and switch-state charts, plus tests for the starter, safety switches, controller, dynamo, regulator, lighting, gauges, and Easy Checker circuits.
-
Maintenance and reference data: Scheduled service, lubricant/fuel/coolant charts, component torque tables, service specifications, wear limits, and dedicated engine and tractor tools.
Because major jobs call for tractor splitting, supported heavy assemblies, hydraulic pressure or flow testing, and precision measuring tools, this manual is suited to professional technicians and experienced owners with the necessary shop equipment.
Powertrain Variants and Loader-Valve Coverage
Gear-drive procedures apply to the B2320DT; the B2320HSD, B2620HSD, and B2920HSD sections cover the hydrostatic drivetrain. The electrical chapter distinguishes the manual-transmission main-shift safety switch from the HST pedal switch.
Hydraulic circuit pages show manual configurations with and without a front-loader valve and the HST configuration with a loader valve. Dedicated front-loader control-valve removal and internal service procedures are marked except B2320DT.
Engine Diagnosis and Internal Repair
The engine chapter covers injection timing, pump-element and delivery-valve fuel-tightness checks, nozzle spray-pattern testing, oil-pressure checks, and cooling-system pressure tests.
Step-by-step procedures cover engine removal and installation and internal disassembly and reassembly. Dimensional inspection covers crankshaft journals, piston rings, camshaft lobes, and the oil pump, with factory dimensions and wear limits.
Injection-pump diagnosis is included, but internal pump overhaul is referred to a Kubota-authorized pump service shop.
Troubleshooting tables link starting, overheating, and irregular-running symptoms with probable causes and related checks. They give you a way to compare the complaint with test results before choosing a repair.
Drivetrain, Axle and Hydraulic Inspection
Drivetrain procedures include separation at the clutch housing, HST, center frame, and transmission assembly. Internal HST checks cover center-section faces, cylinder blocks, thrust components, and pump and motor shafts; differential inspection includes backlash and bearing checks.
Axle and brake chapters give component-level checks for front bevel gears, rear-axle bearings, brake discs, friction plates, and linkage wear.
The HST section warns that an incorrectly raised relief setting can damage the transmission and recommends valve replacement instead of routine readjustment.
Hydraulic-pump chapters call for flow testing before teardown. Because disassembly can compromise the pumps’ original performance, assembly replacement is preferred unless emergency repair is unavoidable.
Circuit Drawings, Test Data and Tools
Diagnostic illustrations include HST neutral/forward/reverse oil-flow views, manual and hydrostatic transmission/PTO power-train diagrams, tractor hydraulic circuits, and sectional views of the three-point control and relief valves.
The main wiring drawing is split across PDF pp. 359 and 361, with the right-hand portion first. The wire-color key follows on PDF p. 363.
Reference tables include component clearances, fluid capacities, adjustment data, and electrical resistance and continuity specifications.
Engine tools: Listed equipment includes the diesel compression tester 07909-30208 and nozzle tester 07909-31361.
Hydraulic test equipment: The manual identifies relief-valve pressure tester 07916-50045, flow meter and hose 07916-52791 / 07916-52651, and flow-meter adapter set 07916-54031. Fabrication drawings provide dimensions for making several less frequently used tools.

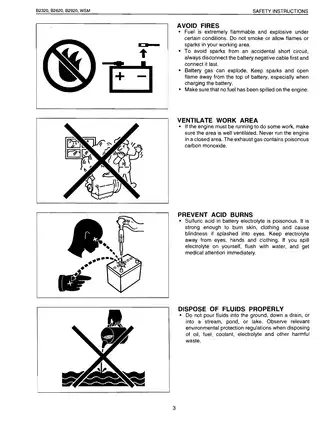

Attachment Scope and Safe Support
Repair chapters concern the tractor itself. Implement-limit tables cover compatible equipment, but mower decks, backhoes, loaders, and other attachments do not receive complete mechanical overhaul sections.

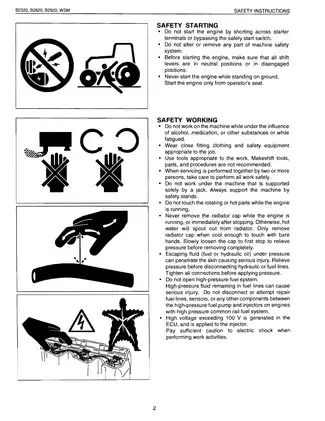

Before repair, lower attached equipment, relieve trapped hydraulic or fuel pressure, disconnect the battery ground, and support the tractor with safety stands rather than a jack alone.
Selected Valve and Injection-Nozzle Specifications
For the diesel engines covered here, the valve-clearance section specifies 0.145–0.185 mm with the engine cold. Its cylinder-position chart identifies which intake and exhaust valves are checked at each illustrated crankshaft position.
The injection-nozzle test lists an opening-pressure range of 13.73–14.70 MPa, with spray-pattern and seat-leakage checks described alongside it.
