2002 Kubota L2250 / L2550 / L2850 / L3250 Tractor Operator's Manual (P/N 32430-1972-1)

Kubota’s operator’s manual covers the L2250, L2550, L2850 and L3250 tractors, including standard 2WD/4WD configurations and the L2550GST/L2850GST 4WD versions. This May 2002 printing carries Code No. 32430-1972-1.

• Engine and fuel: Cold-weather starting, fuel-line bleeding, fuel-filter cleaning, engine oil and filter service, and symptom-based engine troubleshooting.

• Transmission and PTO: Mechanical shuttle and GST operation, single- and dual-clutch controls, and rear- and mid-PTO selection for the applicable configurations.

• Hydraulics and implements: Position and draft control, three-point hitch and drawbar setup, hydraulic block outlet connections, and implement limitation tables.

• Controls and chassis: Clutch and brake pedal adjustment, toe-in, front-axle back-and-forth play, wheel spacing, tire pressure, and ballast guidance.

• Cooling and intake: Radiator draining and flushing, hose checks, radiator-screen cleaning, fan-belt tension adjustment, and dry air-cleaner element care.

• Electrical reference: Wiring diagram, fuse circuit assignments, battery maintenance, light-bulb replacement, and Easy Checker warning functions.

Written for tractor owners and operators, the manual explains everyday operation and routine maintenance while referring major service to a Kubota dealer.

Shuttle, GST and PTO Operation

Traveling Speeds tables match gears to the listed rear tire sizes, with separate shift-pattern illustrations for standard and GST controls. The clutch descriptions explain how a dual clutch separates transmission drive from PTO drive; the GST section explains live-PTO operation.

Mid-PTO instructions apply to equipped tractors. The L3250 has its own rear-PTO control description, and the specifications distinguish its single-speed arrangement from the two-speed rear PTO on the other listed models.

The GST warm-up guidance explains how inadequate cold-oil circulation can reduce hydraulic pressure and damage the hydraulic clutch or power steering.

Hydraulic Controls and Implement Setup

The three-point hitch section covers top-link mounting holes, lift-rod leveling, check-chain adjustment and drawbar use. The Hydraulic Control Unit Use Reference Chart relates implement type and soil condition to position or draft control, gauge-wheel use and hitch setup.

Hydraulic block outlet illustrations show auxiliary equipment connections for applications such as a loader or front blade. The Implement Limitations tables separate attachment weight, working width, drawbar load and lifting limits by tractor model, helping owners check a proposed attachment before fitting it.

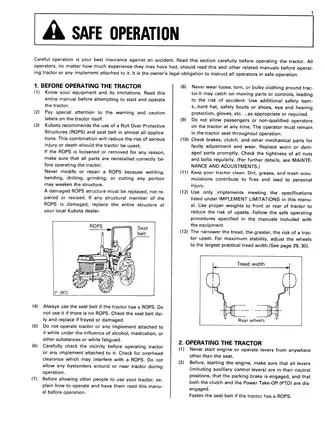

Review the manual’s safety guidance on PTO shielding and roll-over protective structures (ROPS) before operating the tractor or attached equipment.

Routine Service, Adjustments and Fault Checks

The maintenance checklist distinguishes initial service from recurring checks and identifies GST-specific magnetic-plug cleaning and paper-filter replacement. Fluid-service instructions cover the transmission/hydraulic supply, 4WD front axle and steering gear case, with separate steering gear box guidance for manual-steering tractors.

Illustrated adjustments cover single-clutch/GST and dual-clutch linkages, pedal travel for the wet-disk brakes, toe-in and front-axle play. Wheel-spacing diagrams identify the fixed L2250 2WD and 4WD front axles, alongside adjustable 2WD arrangements for the larger models.

The fuel-filter section warns that contamination introduced during service can accelerate wear in the fuel pump and injection nozzles. Storage and return-to-service instructions address the clutch, battery, cooling system and fluid checks.

The Engine Troubleshooting chart connects hard starting, low power, abnormal exhaust smoke and overheating with likely causes and corrective checks. It helps owners narrow an operating complaint to fuel supply, lubrication, cooling or starting conditions before arranging further service.

Internal engine and transmission repair requires separate workshop documentation. The maintenance checklist specifically assigns valve-clearance and injection-nozzle pressure checks to a Kubota dealer.

A Preview of Coolant, Oil and Tire Specifications

These examples are a small selection of the operating and maintenance specifications included in the manual.

Coolant capacity is 4.6 liters for the L2250 and L2550 and 5.6 liters for the L2850 and L3250, with the GST versions following their respective base-model capacities.

The Engine Oil Viscosity Chart allows SAE 10W or 10W-30 below 0°C (32°F). The tire table lists 100 kPa (14 psi) for its specified 4PR rear tires, with separate front-tire pressures by size.

PDF Viewing and Included Pages

Search, navigation and wiring detail: PDF text search and embedded bookmarks are not available. The wiring diagram is sideways in the file; its small wire codes and switch-terminal labels are readable when the page is rotated and enlarged.

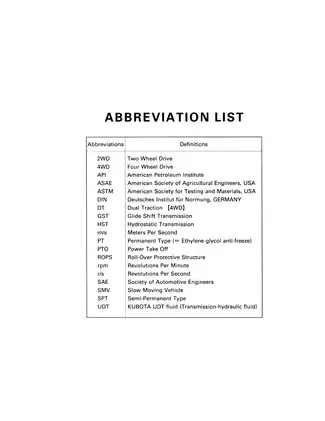

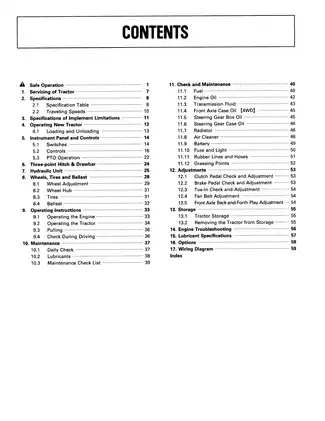

One printable English PDF contains 68 pages total: 59 numbered manual pages, a two-page index, four preliminary pages, one blank page, one unnumbered additional page and the back cover. All preliminary and additional pages are already included in this total.
