Kubota L-Series Tractor Parts Manual Collection 1977–2010

Use the tractor catalog for the machine’s parts and the matching loader or backhoe catalog for attachment components. Select each book by its stated model designation; the attachment catalogs do not apply to every tractor in the collection.

These are illustrated parts catalogs for identification and repair planning. They do not provide step-by-step overhaul procedures, diagnostic test specifications, or torque and bleeding instructions.

Searchable Parts Tables and PDF Bookmarks

Search and drawing detail: All PDFs have searchable section headings and parts-table text, plus embedded bookmarks. Small inset labels in some older wiring-parts views remain difficult to read when enlarged. The separate L295 (DT) wiring image is readable with zooming and rotation.

The ZIP contains 68 printable PDFs totaling 17,842 pages, including 66 parts-book instruction pages and one duplicate 408-page L3400DT/HST catalog. The 67 different catalogs total 17,434 pages. A separate L295 wiring diagram is supplied as a GIF image and is outside the PDF page count.

Tractor Drivetrain, Hydraulics and Attachment Parts

The selected coverage below highlights major assemblies. Further entries include model-specific ROPS and optional auxiliary-control-valve parts.

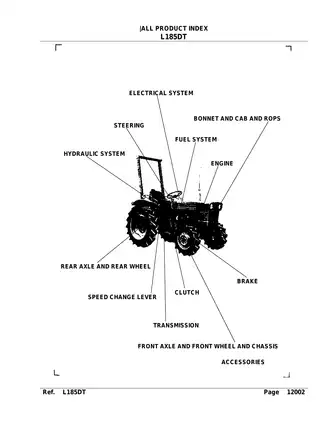

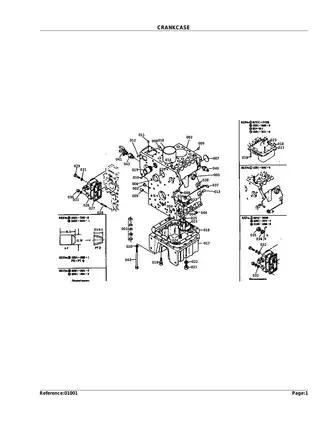

• Engine components: Exploded views and parts listings for crankcases, cylinder heads, pistons, crankshafts, fuel-injection components, lubrication, and cooling assemblies.

• Transmission and PTO: Gear-train, clutch, shift-fork, and PTO breakdowns, with separate manual, GST, and HST component sections where applicable.

• Axles, brakes, and steering: Differential, final-drive, brake-linkage, steering-gear, power-steering, and front-wheel-drive parts identification.

• Loader assemblies: Main and side frames, booms, buckets, control valves, hydraulic hoses, and cylinder component breakdowns in the included attachment books.

• Backhoe assemblies: Main and swing frames, booms, dippersticks, bucket links, stabilizers, steps, pins, bushings, retainers, and mounting hardware.

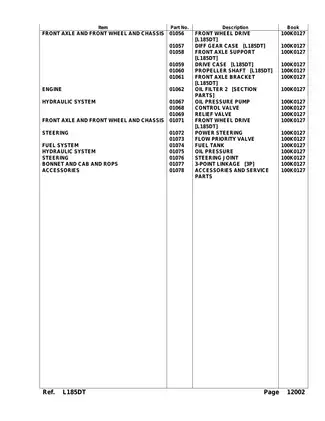

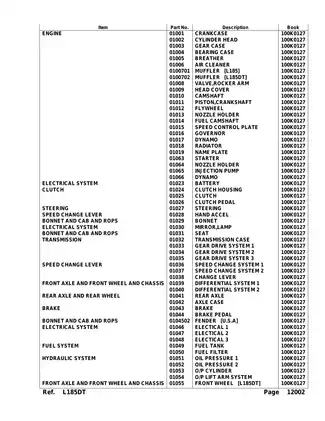

• Parts-table references: Illustration reference numbers, Kubota part numbers, quantities, serial applicability, interchangeability codes, remarks, size callouts, and component-weight columns.

Suited to owners and parts technicians who can identify assemblies from exploded views and match replacement parts to serial-dependent catalog entries.

Serial-Specific Parts Selection

The serial-applicability and interchangeability columns help match a replacement to the machine’s production version before ordering. The interchangeability key distinguishes two-way substitutions from “new for old,” “old for new,” and non-interchangeable parts.

In the BT1100 catalog, control-valve component sections divide at S/N 10019/10020, inlet/outlet plumbing at S/N 11635/11636, and standard LH/RH stabilizer-cylinder components at S/N 12381/12382. Certain label and identification-mark entries have non-interchangeable revisions from S/N 12446.

Dedicated OLD PARTS views retain earlier BT1100 main-frame, stabilizer-arm, stabilizer-hose, and label arrangements for comparison. Standard and optional stabilizer hardware require separate parts matching.

Internal Components and Hydraulic Routing

The combined transmission-variant catalogs distinguish assemblies by type. HST sections identify pump, motor, input-shaft, and valve components; GST sections separate hydraulic-clutch and transmission-control parts from manual-transmission arrangements.

The BT1100 cylinder pages break out tubes, rods, heads, pistons, plugs, nuts, retaining hardware, and seal kits. Its control-valve sections identify inlet, outlet, and mid-inlet sections; spool, relief, lockout, and shuttle-valve parts; and related seals, O-rings, wipers, caps, and tie rods. This supports repair planning when an individual internal part or seal package is needed.

Named BT1100 routing views include Hydraulic Hose (Inlet/Outlet), Hydraulic Hose (Swing), Hydraulic Hose (Boom/Dipperstick), Hydraulic Hose (Bucket), and Hydraulic Hose (Stabilizer). Remarks distinguish fitting and fastener callouts, including UNC, UNF, and NPTF threads.

The optional stabilizer-cylinder kit has separate LH/RH component pages and identifies added pipes, adapters, bushings, hose clamps, labels, and an assembly-manual part reference. Control levers, rubber stabilizer-pad options, English/French labels, and accessories/service parts are also listed.

Electrical Parts and Workshop Use

The L235, L275, and L355SS pages titled Wiring Diagram show wiring-harness components with corresponding parts lists. The separate circuit image is labeled L295 (DT) and includes wire-color codes, starting and lighting circuits, and switch-terminal charts.

Match cylinder and valve parts by serial applicability and interchangeability status rather than appearance alone. Weight columns include zero entries, which should not be treated as verified lifting weights. Use the applicable workshop instructions for hydraulic depressurization, supported lifting, torque, and final repair checks.

Selected Bucket Quantities and Fitting Threads

The BT1100 bucket table distinguishes the 12, 16, 18, 24, 30, and 36 designations. BUCKET 12 lists three teeth and three coiled spring pins, while BUCKET 24 lists five of each; the quantities depend on the selected bucket configuration.

The BT1100 main-frame table also identifies a 1/8-27 NPTF grease fitting alongside the separately specified mounting hardware.
