HP Color LaserJet 9500n/9500hdn Service Manual, 2000–2005 (P/N C8546-90956)

HP’s September 2003 first-edition service manual (P/N C8546-90956) covers the HP Color LaserJet 9500n (C8546A) and 9500hdn (C8547A).

Searchable PDF with Chapter Bookmarks

Navigation and diagram detail: Searchable text and embedded bookmarks provide access to chapters and subsections. Small wiring-diagram labels require zooming for comfortable reading.

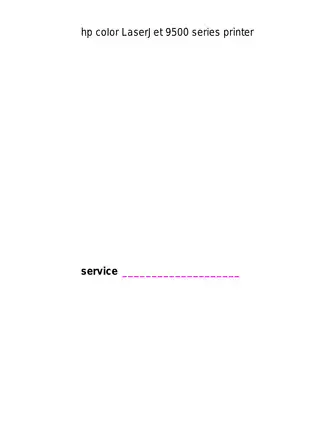

Supplied as one printable PDF in English with 533 pages in total, including two cover/title pages and 11 blank or header-only pages.

Print Engine Repair and Diagnostic Coverage

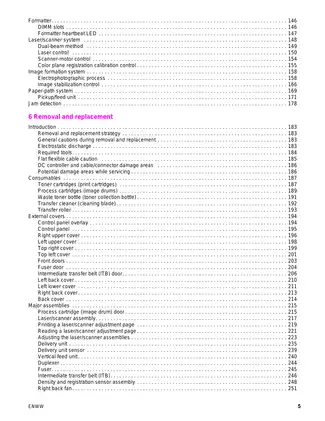

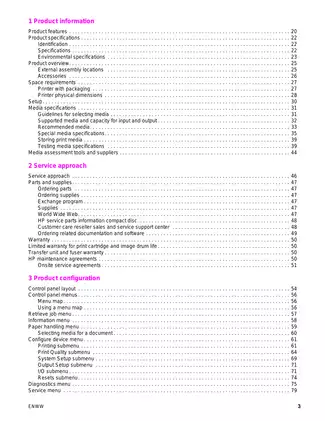

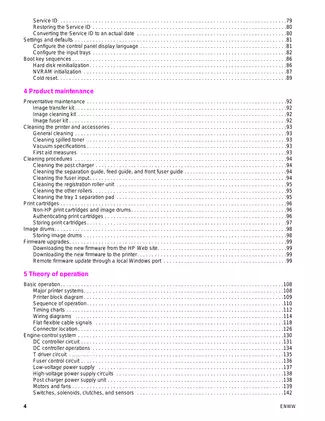

Selected coverage: The topics below are a sample of the manual’s contents, which also include media assessment and Jetdirect communication troubleshooting.

• Assembly repair: Illustrated step-by-step removal and replacement procedures for the fuser, intermediate transfer belt (ITB), secondary transfer assembly (T2), and paper pickup unit.
• Laser/scanner service: Adjustment-page interpretation and shim-based alignment, alongside assembly replacement.
• Fault isolation: An engine test print that bypasses the formatter, interactive sensor checks, and individual motor, clutch, and solenoid tests.
• Image-quality diagnosis: Print/Stop Test and Color Band Test procedures to locate defects at the transfer stages and diagnose high-voltage arcing.
• Electrical diagnosis: Four-part wiring diagrams, connector-location views, and DC controller flat flexible cable signal tables.

Intended for printer service technicians familiar with internal laser-printer diagnostics and electrostatic-discharge precautions, with service-menu functions reserved for authorized personnel.

Operational Overview and Diagnostics

Engine operation: Image-formation and paper-pickup coverage explains how the formatter, DC controller, and high-voltage power-supply PCA interact. Separate coverage addresses the T driver and low-voltage power supply.

The Power-on block diagram and A4 cassette-feed timing charts show how the engine-control system coordinates startup and print timing. The formatter-independent engine test helps distinguish print-engine problems from faults involving the formatter.

Print quality and jams: Sample defects cover ghosting, missing color planes, banding, and poor fusing. The Paper path jam sensors diagram accompanies jam-by-location tables, while event-log interpretation addresses intermittent failures and faults that may not appear on the control panel.

Laser Alignment and Assembly Repair

Removal and replacement coverage also reaches the registration and delivery assemblies. Separate procedures address the image-drum and print-cartridge drive assemblies, DC controller, and formatter PCB.

Alignment requirements: Laser alignment can be needed after replacement of the image-drum drive or image-drum door, as well as the laser/scanner itself. The manual documents the S-shims, adjustment plate, and spring tool used for this work.

The adjustment page requires letter- or A4-size media; A3 or 11-by-17 media gives invalid results. Separate theory sections explain automatic color plane registration (CPR), D-max density control, and D-half halftone calibration.

Reassembly cautions: A partially seated flat flexible cable can permanently damage cartridge e-labels. Laser/scanner shims positioned over mounting holes can be bent or damaged during reinstallation.

Model Configurations, Firmware, and Service Data

The 9500hdn adds an EIO hard disk, duplexer, tray 4, and additional memory over the 9500n’s standard configuration. Tray 4 has standalone running, motor, and sensor tests, backed by DIP-switch settings and service-light pattern interpretation.

Firmware updates: Documentation covers printer .rfu updates through local ports, FTP, LPR, and HP Web JetAdmin, with update-message and failure troubleshooting.

Service data: Procedures cover NVRAM initialization, cold reset, and hard-disk reinitialization. Service-menu coverage includes restoring page counts, the serial number, and Service ID after formatter replacement.

Engine Wiring, Fuser Control, and Parts Lists

The manual includes 322 numbered figures and 121 tables, alongside chassis dimensions, common fastener torque values, and electrical signal definitions.

Fuser and connector references: The Fuser control circuit diagram explains heater control, temperature feedback, and overheating protection. The FFC tables identify pin assignments, input/output direction, logic levels, and signal functions for DC controller connections.

Parts identification: Exploded assembly views and PCB assembly illustrations are paired with part descriptions, numbers, and quantities. Alphabetical and numerical master parts lists identify field replaceable units, while the illustrated tables distinguish separately serviced parts from items supplied in a larger assembly.

Voltage-specific power-supply listings help identify the appropriate electrical build. The repair approach is assembly-level replacement, with mechanical subassembly work where specified; HP does not support replacement of individual electronic components on the printed circuit assemblies.

The manual includes cooldown, electrical-disconnection, and electrostatic-discharge precautions for work around high-voltage modules and thermal components.

Examples of Repeating-Defect Measurements

The repeating-defect reference lists 45 mm for the charger roller and 98 mm for the OPC image drum. These spacings link recurring marks on the print to the relevant imaging component, with troubleshooting tables addressing possible contamination or surface damage.
