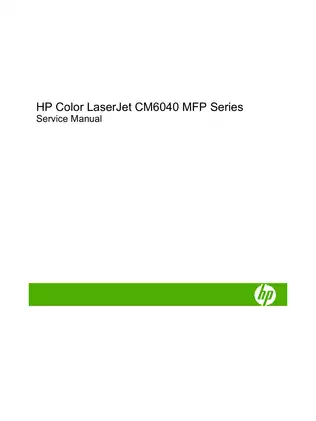

HP Color LaserJet CM6030/CM6040 MFP Service Manual – 2008 (P/N Q3938-90953)

HP’s 2008 factory service manual (P/N Q3938-90953, Edition 1) covers the Color LaserJet CM6030 MFP (CE664A), CM6030f MFP (CE665A), CM6040 MFP (Q3938A), and CM6040f MFP (Q3939A). The base models come with Trays 2 and 3. The f models add Trays 4 and 5 and analog fax.

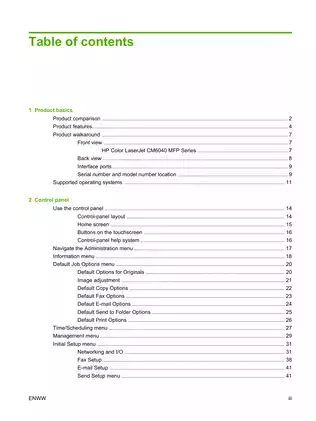

PDF Search, Bookmarks, and Page Count

Finding procedures and wiring details: Search the manual text or use the embedded bookmarks to jump to chapters, service procedures, and parts lists. Small pin and connector labels in the printer and finisher schematics are legible when zoomed. Some labels in the main printer circuit diagrams need to be located visually.

The manual comes as one printable, English-language PDF with 1,212 pages, including both covers, two blank pages, and 28 appendix pages.

Print Engine, Scanner, and Finisher Service

These selected service topics give a sample of the coverage. The manual also explains how to check device status through the embedded web server and verify SMTP and LDAP gateway addresses.

• Print engine: Removal and replacement of the fuser, transfer roller, intermediate transfer belt (ITB), secondary-transfer unit, laser/scanner assemblies, main drives, duplex units, and tray pickup mechanisms.

• Electrical diagnosis: DC-controller and formatter references, power-supply and cartridge-drive/interface PCA diagrams, and connector and signal maps for tracing motors, solenoids, switches, and sensors.

• Scanner and ADF: Optical-scanner carriage and inverter replacement, scanner-control board (SCB) jumper configuration, calibration, firmware updating, and automatic document feeder sensor and drive service.

• Fault isolation: Event-log and control-panel diagnosis, paper-path and manual sensor tests, component tests, print/stop and color-band tests, scanner tests, LED checks, and service-mode functions.

• Paper handling and finishing: Repair procedures for the CB473A and CB474A input stands, the intermediate paper transfer unit (IPTU), the CC517A stapler/stacker, and the CC516A booklet maker.

• Parts identification: Exploded views, replacement-kit tables, and alphabetical and numerical part-number indexes for the printer and accessories.

The manual suits printer service technicians who are familiar with laser printer operation and use engine diagnostics to isolate faults before replacing assemblies.

Image Formation and Paper Feed

The theory chapter follows the print cycle from pre-exposure, charging, and laser exposure through development, transfer, fusing, ITB cleaning, and drum cleaning. It explains developing-roller engagement, ITB detection, color registration, image stabilization, fuser temperature control, and high- and low-voltage protection.

Paper-path coverage runs from cassette lift, pickup, and paper-size and level sensing through multifeed and skew prevention, media sensing, loop control, duplex reverse and refeed, and jam detection. The general timing chart and product connector views help trace when a paper-path signal should occur and where it enters the controller.

Assembly Repair and Scanner Setup

HP documents field-replaceable unit (FRU) diagnosis and replacement, with some mechanical subassembly repair. Circuit-board work is covered at the assembly level. The tool list includes a magnetic #2 Phillips driver, a small flat-blade driver, needle-nose pliers, a penlight, and ESD protection. HP prefers a JIS #2 driver for the stapler/stacker.

The scanner carriage and inverter must come from the same supplier when either is replaced. HP uses lamp-cable color to identify the hardware and documents the matching SCB jumper configuration, calibration, and remote firmware update. The scanner image-data path diagram shows how the scanner boards pass image signals to the formatter.

The cartridge-drive gear alignment procedure warns that alignment pins left in place can damage the printer. The IPTU instructions show how to support the unit at the bench edge to protect its connector.

HP specifies disconnecting AC power for parts removal, observing ESD precautions, protecting flat flexible cables from bends, and letting the fuser cool. Powered diagnostics with the covers removed are reserved for trained service personnel. HP warns against touching power supplies while the printer is on.

Jam, Print-Quality, and Fax Diagnostics

The troubleshooting checklist and flowchart lead into configuration-page checks, event-code tables, zone-specific jam charts, print-quality test pages, and network and interface checks. Component tests can isolate cartridge and drum pairs, individual CMYK laser scanners, transfer and drum motors, fuser and duplex drives, and pickup motors and solenoids.

LED references cover the formatter, HP Jetdirect, SCB, and copy-process board (CPB). Service mode covers maintenance counts, serial number and service ID entry, event-log clearing, NVRAM initialization, and media-sensor calibration after secondary-transfer unit replacement.

For the f models, the manual covers fax setup, reports, T.30 tracing, and V.34 settings. HP directs detailed fax troubleshooting to the separate Analog Fax Accessory 300 documentation.

Finisher Adjustments and Parts Reference

Booklet-path cross sections, finisher controller schematics, and sensor and motor maps accompany the component tests. The adjustment procedures cover alignment, staple position, fold-to-stitch position, and stitcher setup.

The illustrated parts chapter runs through Figure 9-100. Its tables distinguish orderable parts from components supplied only within larger assemblies or kits. Appendix B covers physical, electrical, acoustic, and environmental specifications.

Sample Defect Spacing for Drum and Fuser Diagnosis

The repeating-defect ruler links marks spaced 94 mm apart to an image drum. In the fuser, it associates a 144 mm repeat with the pressure roller and a 148 mm repeat with the fusing roller. These references help narrow down which assembly to inspect when the same mark recurs down the page.
