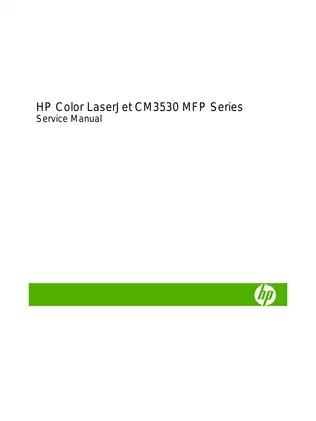

2008 HP Color LaserJet CM3530 MFP / CM3530fs MFP Service Manual (P/N CC519-91013)

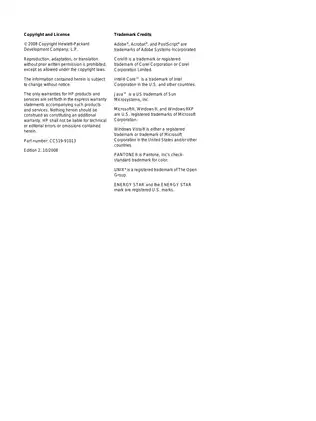

Covers the 2008 HP Color LaserJet CM3530 MFP (CC519A) and CM3530fs MFP (CC520A). This service and repair manual is publication CC519-91013, second edition, October 2008, with model-specific coverage for analog fax and the convenience stapler.

The English-language 630-page PDF contains the service chapters, parts lists, specification appendices, and index. Searchable text and PDF bookmarks support navigation.

• Print engine repair: Removal and replacement procedures for the fuser, intermediate transfer belt, secondary transfer assembly, toner-collection components, and main drive.

• Scanner and ADF: Scanner assembly and control-board replacement, document-feeder rollers and separation pad, plus scanner and ADF calibration procedures.

• Paper handling: Pickup, registration, delivery, and duplexing systems, including optional paper-feeder coverage, paper-path tests, jam diagnosis, and sensor checks.

• Electrical diagnosis: DC controller PCA tray, power-supply assemblies, connector references, manual sensor tests, and component tests for motors and other actuators.

• Print-quality troubleshooting: Print/Stop and color-band tests, repetitive-defect references, image-defect charts, and color-registration calibration for investigating recurring marks, bands, and missing colors.

• Parts identification: Exploded assembly views, service kits, and alphabetical and numerical parts indexes, with separate listings for model-specific and voltage-specific assemblies.

This manual suits printer service technicians familiar with HP LaserJet printing processes and the functions of the printer’s internal assemblies.

Print Engine, Transfer and Fuser Repair

The theory-of-operation chapter covers the engine-control system and laser/scanner modules. It breaks down the 10-step image-formation process into stages, including primary charging, laser exposure, development, and secondary transfer. Toner-collection mechanisms, fuser temperature control circuits, and ITB cleaning and automatic color-registration control are explained alongside pressure-roller and loop control in the paper path.

Removal and replacement coverage extends to the main-drive assembly, including cam alignment during installation. The procedures address field-replaceable units; HP does not support repairing individual subassemblies or troubleshooting down to individual components.

Working with internal power supplies and fuser assemblies involves high-voltage and thermal hazards. Energized service diagnostics are restricted to trained service personnel.

Scanner, ADF and CM3530fs Accessories

Scanner calibration addresses offsets in both flatbed and ADF scanning, while the ADF replacement section includes its calibration procedure. The scanner replacement assembly excludes the ADF, scanner control board, and control panel, a distinction that matters when identifying replacement parts.

The CM3530fs includes analog fax and a convenience stapler. Fax PCA and cable replacement, fax diagnostic menus, and fax reports are covered. Detailed fax troubleshooting is referred to the separate HP LaserJet MFP Analog Fax Accessory 500 Fax Guide.

Electrical Troubleshooting and Print Defects

Control-panel messages and event-log tables connect faults to diagnostic checks. Engine isolation, manual sensor tests, and component tests help distinguish control, drive, and paper-path problems before repair.

The DC controller PCA connector map identifies connections for electrical checks. The General circuit diagram spans two sheets; the Paper feeder circuit diagram covers the optional feeder. The General timing chart shows the sequence of engine activity.

For recurring marks, the Repetitive defects ruler relates defect spacing to the print cartridge, transfer components, or fuser. That comparison helps narrow the suspect assembly before parts selection.

Replacement cautions address the interconnect board’s stored engine data: transplanting a used board between printers can cause severe damage. Hard-drive replacement notes identify the risk of pulling the SATA connector base off the formatter PCA.

Parts, Maintenance and Specification Tables

The ADF/scanner assembly exploded view links components to its parts table. Fuser and low-voltage power-supply listings distinguish 110 V and 220 V versions, supporting correct parts selection for the printer’s electrical configuration.

Maintenance coverage includes fuser and scanner cleaning, memory expansion via SODIMM modules, hard-drive replacement, and firmware updates. Specification tables cover power consumption in watts, dimensions with doors and trays open, acoustic emissions, and environmental operating limits.

PDF Navigation and Page Count

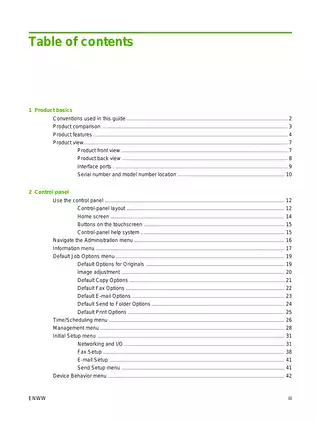

PDF bookmarks cover the chapters and many subsections. Body text and tables are searchable, but labels embedded in circuit drawings are not consistently searchable. Small connector and pin labels in dense schematics require zooming.

The 630-page total includes 28 preliminary pages, 598 numbered pages covering the chapters, appendices, and index, two outer covers, and two unnumbered blank pages. These are all included in the stated total.
