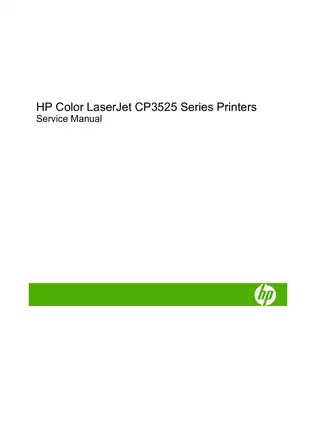

2008 HP Color LaserJet CP3525/CP3525n/CP3525dn/CP3525x Service Manual (P/N CC468-90963)

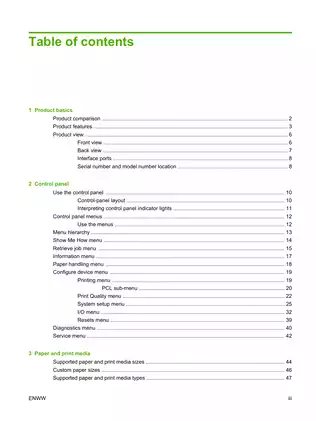

This 564-page PDF is the official HP Color LaserJet CP3525 Series Printer Service Manual, Part number CC468-90963, Edition 1, October 2008. It covers the CP3525, CP3525n, CP3525dn, and CP3525x and follows their shared 30-ppm print engine from operating theory through FRU removal, fault isolation, and parts identification. The depth is suited to service technicians and experienced printer repairers; HP specifically limits live diagnostics with the covers removed to trained service personnel.

• Exact configuration coverage: Identifies the CP3525 (CC468A), CP3525n (CC469A), CP3525dn (CC470A), and CP3525x (CC471A). It distinguishes embedded Jetdirect networking on the n/dn/x models, automatic duplex hardware on the dn/x models, and the additional paper-and-heavy-media Tray 3 and postcard-media insert supplied with the x model.
• Engine and image-formation theory: Maps the DC controller, upper and lower high-voltage power supplies, low-voltage power supply, dual laser/scanner assemblies, print cartridges, intermediate transfer belt (ITB), and on-demand fuser. It traces the ten-stage image path through pre-exposure, charging, laser exposure, development, transfer, separation, fusing, and cleaning, then separately explains color-registration and image-stabilization control.
• Major repair procedures: Provides illustrated removal and reinstallation coverage for the fuser, ITB, secondary transfer assembly, formatter and DC controller PCAs, registration assembly, power supplies, laser/scanners, cassette-pickup and lifter drives, main and fuser drives, delivery assembly, duplex drive, and optional feeder connector.
• Built-in diagnostics: Covers diagnostics mode, disable-cartridge-check operation, the engine-test button, paper-path and print/stop tests, two manual sensor-test groups, individual component actuation, formatter LED checks, event-log analysis, and the full control-panel messages table.
• Paper-path fault isolation: Traces Tray 1, Tray 2, and optional Tray 3 pickup, feed, lift, size/presence sensing, multifeed prevention, and jam detection. Separate duplex reverse and re-pickup coverage applies to the CP3525dn and CP3525x.
• Useful technical graphics: Includes the DC controller block diagram, high-voltage power-supply circuits, image-formation process, general timing chart, general circuit diagram, and paper-feeder circuit diagram, plus connector maps and exploded assembly views.

System Architecture and Repair Depth

The theory-of-operation chapter ties the operating sequence to the formatter, engine controller, solenoids, clutches, interlock switches, sensors, motors, and fans. It explains low-voltage protection and failure behavior, high-voltage bias generation, laser/scanner fault detection, fuser temperature control and protection, developing-roller engagement, ITB transfer-roller positioning, and the calibration patterns used for color-misregistration and image-density correction.

Chapter 6 then turns that system map into an FRU-level repair workflow. A parts-removal order, connector locations, required tools, ESD handling, reinstallation notes, and a post-service print-quality test support the illustrated procedures. Its 227 numbered figures cover tool identification, connector locations, access paths, removal steps, and critical reinstallation positions.

Diagnostics for Electrical, Mechanical, and Print Defects

The manual sensor tests cover TOP and loop sensing, fuser delivery and pressure release, duplex re-pickup, output-bin-full detection, primary-transfer-roller disengagement, door interlocks, and media sensing across all three trays. Component tests can independently exercise the ITB, cartridge and laser/scanner motors, fuser and pressure-release drive, developer disengagement, pickup mechanisms, duplex drive, clutches, and solenoids.

Print-quality diagnosis is handled through the repetitive-defects ruler, calibration, internal troubleshooting pages, diagnostics page, color-band test, and image-defects table. The print/stop test helps locate a defect or jam within the paper path. Control-panel messages, event-log definitions, and 14 cause-and-solution jam tables connect symptoms to specific sensors, connectors, motors, PCAs, and replacement assemblies.

Parts Identification and Scope

Chapter 8 contains 20 exploded parts figures covering external panels, the right door, five internal-component views, cassettes, pickup assemblies, registration, secondary transfer, delivery, the two-part fuser view, PCAs, and the optional paper feeder. Each exploded assembly is paired with item numbers, HP part numbers, and descriptions, followed by alphabetical and numerical parts indexes. The listings also distinguish simplex and duplex secondary-transfer kits and the applicable 110-volt and 220-volt fuser service kits.

The repair scope is limited to field-replaceable units. HP explicitly excludes repair of individual subassemblies and component-level troubleshooting from this publication, an important distinction for anyone expecting board-level repair data.

During internal repair, pre-folded flat-flex cables must not be straightened or left partly seated because this can short a PCA. The ITB and spongy roller surfaces are vulnerable to skin-oil contamination, and non-captive main-drive cams and cassette-pickup gears and springs must remain indexed to their reinstall views or the mechanisms can be assembled out of position.

Disconnect power for parts removal, allow the fuser to cool, use ESD protection around sensitive electronics, and never operate the printer with a laser/scanner protective cover removed.
