1995-1996 HP Color LaserJet / Color LaserJet 5/5M Service Manual (709 P.)

Complete technical service documentation for 1995-1996 HP Color LaserJet and Color LaserJet 5/5M printers covering troubleshooting, maintenance, parts diagrams, and repair procedures for 709 pages.

5.0starstarstarstarstar(1)
★ TOP SELLER
visibility Preview Available
Hewlett Packard 1995-1996 HP Color LaserJet / Color LaserJet 5/5M Service Manual (709 P.) manual page preview - page 1 of Number of pages: 696

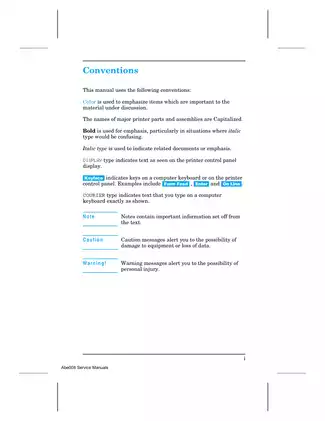

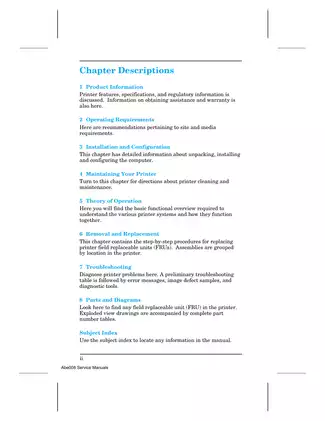

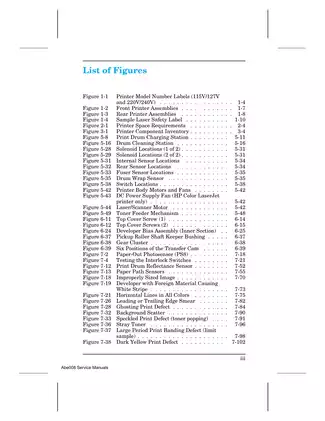

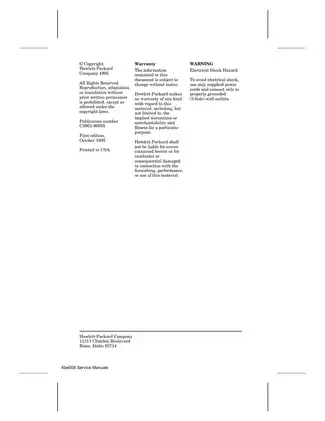

Sample pages from the 1995-1996 HP Color LaserJet / Color LaserJet 5/5M Service Manual (709 P.) manual

Hewlett Packard 1995-1996 HP Color LaserJet / Color LaserJet 5/5M Service Manual (709 P.) manual preview page 1 - thumbnail
Hewlett Packard 1995-1996 HP Color LaserJet / Color LaserJet 5/5M Service Manual (709 P.) manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$4.99 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
3 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Hewlett Packard Models Covered & Key Technical Specifications

Models: HP Color LaserJet, HP Color LaserJet 5, HP Color LaserJet 5M
Sub-models / Variants: C3100A, C3961A, C3962A
Build Years: 1995–1996
Technical Data:

  • Print Technology: Monochrome (10 ppm), Color (2 ppm), Color Transparency (1 ppm)
  • Resolution: 300 dpi with Resolution Enhancement (REt) and COLOREt high-quality color enhancement
  • Memory: Standard 8 MB (CLJ) or 20 MB/36 MB (CLJ5/5M), expandable to 84 MB/76 MB maximum
  • Printer Languages: PCL 5 Color Extension, Automatic Printer Personality Switching, PostScript Level II (standard or optional)
  • Duty Cycle: 15,000 pages per month (CLJ) / 30,000 pages per month (CLJ 5/5M)
  • Dimensions: 378 mm (H) x 603 mm (W) x 504 mm (D)
  • Operating Environment: 10° to 28°C (50° to 83°F), 20–70% relative humidity
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
23266 / Walter Edwards
File Size:
22.82 MB
File Type:
PDF
Language:
English
Pages:
Number of pages: 696 ,
Printable:
Yes
Category:
Copier
Last updated / verified
Jul 10, 2025

Hewlett Packard Manual Features & Content Preview

Inside the 1995–1996 HP Color LaserJet 5/5M Service Manual

  • This 1995–1996 HP Color LaserJet 5/5M service manual provides technical data for the C3100A, C3961A, and C3962A print platforms.
  • Official HP publication C3961-90955, first edition October 1995.
  • Contains 8 exploded-view part diagrams and 28 maintenance interval tables.
  • Accessible from your device as soon as the order is placed.
  • OCR text layer lets you jump to a torque spec by keyword.
  • This 696-page technical volume documents internal systems, assembly locations, and environmental operating thresholds for the original HP color printer series.

Operational Architecture and Diagnostic Scope

The 1995–1996 HP Color LaserJet 5/5M service manual outlines the functional theory of the printer, detailing the electromechanical interactions within the developer, toner, and transfer systems. The what an OEM service publication covers includes detailed breakdowns of the laser optics assembly, fuser station, and the control panel interface. Chapters provide reference material for site requirements, media specifications, and the configuration of network protocols including Novell NetWare and TCP/IP.

Technical Data and Maintenance Specifications

The manual documents precise operating thresholds, such as the fusing temperature of 200°C (392°F) required for consistent toner adhesion. Storage environment humidity levels for consumables are specified at 10–80% relative humidity to ensure shelf life. The 1995–1996 HP Color LaserJet 5/5M service manual lists the highest one-second average RMS current at 16.0 Amps for 120V configurations. Maintenance intervals are outlined for critical units, including the 80,000-page fuser life and 60,000-page transfer belt capacity. Comprehensive diagrams illustrate component locations for the main frame, developer drive, and laser/scanner assemblies, supported by exhaustive part number tables for field-replaceable units (FRUs).

Reference only — always consult a certified technician before performing service on this equipment.

Manual FAQ, Purchase & Download Details

Are performance and environmental specification tables included for the HP Color LaserJet 5/5M printer series? keyboard_arrow_down

Yes, this manual includes comprehensive specification tables covering printer dimensions, acoustic emissions, and operating environment requirements. These sections provide reference data such as temperature and humidity ranges for both storage and operation.

Does the document provide information on the various sensor locations, fans, and motor assemblies? keyboard_arrow_down

Manual contains detailed figures and lists identifying the locations and functions of internal sensors, fans, motors, and switches throughout the printer assembly.

Can I find exploded view drawings and part number tables for the field replaceable units in this manual? keyboard_arrow_down

Document includes a dedicated chapter for parts and diagrams that provides exploded view drawings for major printer assemblies. These visuals are accompanied by complete tables listing the part numbers for individual components.

Is the publication information for this manual clearly identified? keyboard_arrow_down

Manual is identified by the publication number C3961-90955 and represents the first edition printed in October 1995.

What kind of electrical and configuration information is available in the manual? keyboard_arrow_down

Manual lists technical details regarding power requirements, current settings, and interface configurations for the printer. It includes tables for supported media sizes, tray size switch matrices, and MIO configuration checks to assist in understanding the printer's functional setup. Additionally, it provides guidance on regulatory information and safety standards relevant to the device.
