HP LaserJet 5P/5MP & 6P/6MP Service Supplement Collection, 1995–1996 (P/N C3980-99001)
212 Pages • 1 Printable PDF (English) • Download
Hewlett Packard Models Covered & Key Technical Specifications
Models: LaserJet 5P, LaserJet 5MP, LaserJet 6P, LaserJet 6MP
Models & Model Codes:
LaserJet 5P — C3150A
LaserJet 5MP — C3155A
LaserJet 6P — C3980A
LaserJet 6MP — C3982A
Model Years: 1995–1996
-
Print Speed: 6 PPM (5P/5MP), 8 PPM (6P/6MP)
-
Resolution: 600 dpi with Resolution Enhancement Technology (REt)
-
Standard Memory: 2 MByte (5P/6P), 3 MByte (5MP/6MP)
-
Monthly Duty Cycle: Up to 12,000 pages
-
Interface Options: IEEE-1284 Parallel (B and C connectors), LocalTalk, SIR (Infrared; 5P/5MP), IrDA infrared (6P/6MP)
-
Operating Temperature Range: 59° to 89° F (15° to 32.5° C)
-
Power Consumption: 165 W (5P/5MP), 175 W (6P/6MP)
Hewlett Packard Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

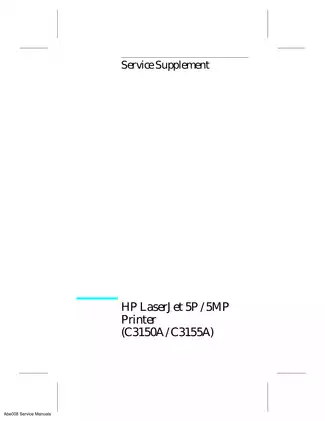

| HP LaserJet 5P/5MP Service Supplement, including the shared title page | 97 |
| HP LaserJet 5P/5MP & 6P/6MP Service Supplement — P/N C3980-99001, first edition, August 1996 | 115 |
The later supplement expands the earlier service material with revised controls, infrared specifications, jam recovery behavior, and model-specific replacement parts.
These publications cover service and repair information unique to the listed printers. Shared repair procedures refer to HP’s LaserJet 4L/4ML and 4P/4MP Combined Service Manual, which is required for those referenced procedures and is not included.
PDF Text Search and Wiring Detail
Search and diagram labels: Text in both supplements is searchable, although some drawing labels are graphics rather than searchable text. There are no embedded PDF bookmarks. Small connector and component labels in the two Main Wiring Diagrams require zooming.

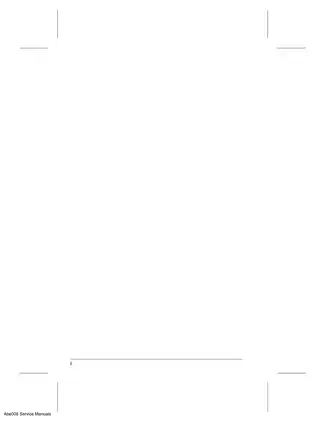

One printable, English-language PDF contains 212 pages total. That total already includes the shared title page, front matter, one reader comment sheet, and five blank or header-only pages.
Paper Feed, Component Replacement, and LED Diagnostics

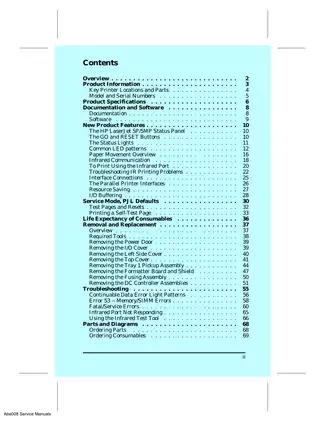

The following selected coverage highlights outline the service content rather than reproduce the full contents list. Other topics include consumable wear checks and accessory identification.
-
Model differences: Status panels, printer languages, memory configurations, infrared operation, jam recovery, and replacement-part distinctions between the earlier and later printers.
-
Component replacement: Step-by-step instructions for the power door, I/O cover, left side and top covers, Tray 1 pickup assembly and roller, formatter board and shield, fusing assembly, and DC Controller Assembly.
-
Fault isolation: Continuable data errors, Error 53 ROM/RAM and SIMM codes, fuser faults, main-motor failures, and formatter-related memory errors.
-
Paper-path references: The HP LaserJet 5P/6P Printer Paper Path identifies sensors PS1–PS5, solenoids SL1 and SL2, registration points, the fuser, delivery rollers, and DC Controller PCA.
-
Service configuration: PJL page-count settings, cold-reset defaults, diagnostic functions, test pages, continuous self-test, NVRAM initialization, Resource Saving, and I/O buffering.
-
Interface troubleshooting: IEEE-1284 B- and C-type parallel connections, LocalTalk, automatic I/O switching, IrDA protocol layers, host configuration checks, and Genoa infrared test-tool procedures.
-
Exploded parts references: Two sections with eight assembly views each provide item callouts and material lists, with later tables distinguishing the 6P/6MP replacement parts.
These supplements are best suited to technicians familiar with LaserJet print-engine service and software-based configuration through PJL commands.
Printer Languages, Controls, and Job Recovery
Languages and memory: The 5P/5MP uses Enhanced PCL 5, while the 6P/6MP uses PCL 6. The MP configurations also include PostScript Level 2. Resource Saving requires PostScript and at least 7 MB of memory; software-adjustable I/O buffering requires at least 6 MB.
Panel differences: The earlier printers have a RESET button. The later printers substitute JOB CANCEL and move the tray-status lights next to the trays. Self-test page illustrations and their keys explain configuration information, firmware identification, page counts, and Resolution Enhancement Technology settings.
Jammed-page recovery: With standard memory, the 6P does not automatically reprint jammed pages by default. The supplement explains the PJL REPRINT setting, memory expansion, and the printing delays that can result when automatic reprinting is enabled without added memory.
Infrared Communication and Host Checks
Infrared speed differs by generation: 115 kbps for the 5P/5MP and up to 4 Mbps for the 6P/6MP. The IR Data Flow illustration traces communication through the physical, Link Access Protocol, and Link Management Protocol layers.
The host checks address infrared COM-port assignment, IRQ settings, drivers, and DOS/Windows configuration. Interface Connections illustrates the cable connections, while the Genoa test-tool procedures distinguish host-side communication problems from printer-port faults.
LED Fault Isolation and Electrical Checks
The later supplement’s ten fault and electrical-check tables connect primary and secondary LED patterns with error families and component checks. Secondary Light Patterns explains the binary indication used to identify Error 53 hardware types, SIMM slots, and fault details.
Fuser diagnosis covers connector contact, thermistor resistance, and thermal-fuse continuity. Main-motor fault isolation extends to the DC Controller, gear train, cartridge rotation, fan, and Laser/Scanner Assembly.
Separate charts address SIMM parity and memory faults, internal RAM failures, scan-buffer errors, Video DMA timeouts, and Dynamic RAM Controller errors. The Main Wiring Diagram locates the related connectors, sensors, solenoids, and power-supply circuits.
Parts Selection and Repair Cautions
The parts tables distinguish model-specific assemblies and the 100–120V and 220–240V DC controllers, fusers, and fuser-film assemblies. These distinctions let technicians match replacement parts to the printer model and voltage configuration before ordering. The HP LaserJet 5P/6P Fusing Assembly exploded view links individual components to the accompanying material list.
Top-cover notes identify the Tray 1 paper-out flag as vulnerable to breakage if the cover is forced with the flag misaligned with the lift-plate groove. DC Controller cautions explain the risk of printer damage from its connections to the formatter and fuser; replacement-board notes identify the controller interconnect, Tray 1 Interconnect PCA, and cable that are not supplied with the new board.
The formatter-shield procedure specifies a TORX T-10 driver. Before service, unplug the printer and provide ESD protection for the PCAs; operating or servicing the Laser/Scanner Assembly with its protective cover removed risks exposure to the invisible laser beam.
Preview of Fuser Electrical Reference Values
For the covered fusers, the thermistor reference between J204-1 and J204-2 is approximately 440 kΩ at 20°C.
The thermal-fuse check at J103-1/J103-2 lists approximately 30 ± 5 Ω for 100–120 VAC units and 127 ± 5 Ω for 220–245 VAC units.
