2000–2002 HP LaserJet 1200 Series OEM Service Manual (P/N 9036)

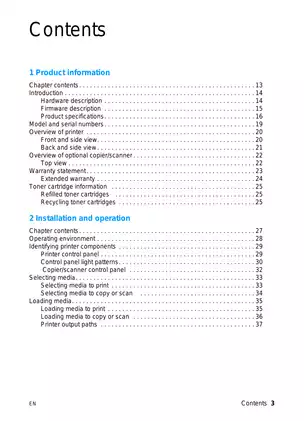

This HP factory service manual covers the HP LaserJet 1200 Series printer platform and the optional copier/scanner configuration associated with the LaserJet 1220. The 205-page PDF combines operating theory, field-replaceable-unit repair, fault isolation, wiring information, and illustrated parts data for technicians, independent repair shops, and experienced owners.

• Printer and copier/scanner coverage spans the formatter, engine control unit (ECU), laser/scanner, image-formation process, pickup and feed path, jam detection, and contact image sensor.

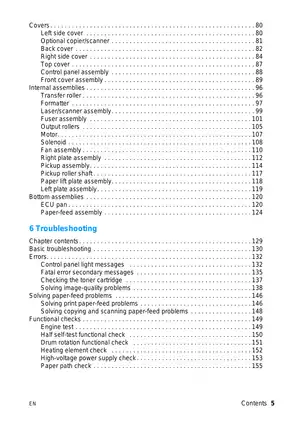

• Removal and replacement procedures cover the formatter, ECU pan, laser/scanner, fuser, transfer roller, motor, solenoid, fan, and major pickup, feed, output, and chassis assemblies.
• Factory functional checks include engine testing, half self-test diagnosis, drum-rotation verification, heating-element and high-voltage-supply checks, and paper-path observation.
• Fault-isolation tables cover control-panel and secondary fatal error messages, print/copy/scan image defects, paper and document-feed failures, memory faults, and interface issues.
• Service-mode material covers self-test reports, continuous self-test operation, NVRAM initialization, PJL factory variables, and stored page-count and configuration data.
• Diagnostic and parts references include paired main-wiring sheets, connector-location views, LED/jumper/switch locations, a repetitive-image-defect ruler, exploded assembly views, and alphabetical and numerical parts lists.

Technical Documentation Scope

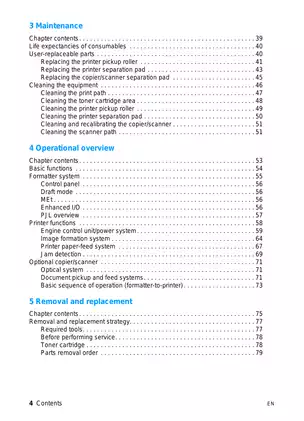

The operational overview shows how the embedded 32-bit Coldfire V3 formatter processor, ECU, and laser/scanner coordinate print data with mechanical timing. It follows the data path from the bidirectional ECP or USB interface through formatter processing, ECU control, laser modulation, image formation, pickup, transfer, fusing, and delivery. The formatter section also covers PCL/PJL behavior, MEt, Enhanced I/O, and Page Protect—useful when separating a data-path or memory problem from an engine-side fault.

The optional copier/scanner receives its own system coverage, including the LED array, contact glass, rod-lens array, sensor array, driver board, document motor, pickup and feed rollers, and document-top sensor. Coverage extends through formatter control, self-test reporting, image-quality diagnosis, feed troubleshooting, cleaning, calibration, removal, and parts identification.

The ECU chapter treats power distribution as part of the repair architecture. It maps AC, low-voltage DC, and high-voltage distribution, overcurrent protection, fuser control, and the loads supplied to sensors, motors, the fan, solenoid, formatter, and scanner circuits. The parts chapter distinguishes 110–127V and 220–240V engine-controller and fuser assemblies, a critical detail before voltage-specific repair parts are ordered.

Repair and Diagnostic Coverage

The troubleshooting chapter is organized around checks that isolate a failed system before parts are replaced. The engine test isolates the print engine from normal formatter processing, while the half self-test helps separate image-formation and development faults from transfer or fusing faults. Dedicated checks cover drum drive, the fuser heating element, toner-cartridge high-voltage contacts, spring-loaded high-voltage connector pins, and powered observation of motion through the pickup, transfer, fuser, and delivery path.

Configuration and firmware-related repair work is supported by internal self-test reports, factory NVRAM initialization, and PJL service commands for default paper, symbol-set, OEM, print-count, scan-count, and copy-count variables. Image-quality tables address toner specks, dropouts, vertical lines, gray background, smears, loose toner, repetitive defects, skew, curl, scanner streaks, and copy-density problems. Separate paper-handling tables cover pickup failures, multifeeds, jams, sensor faults, document-feed failures, and copier/scanner path problems.

Parts, Diagrams, and Service Limits

The publication contains 94 numbered figures and 35 tables. Particularly useful references include the printer unit functional block diagram, ECU-load diagram, laser/scanner operation view, high-voltage power-supply circuit, general timing diagram, and main-wiring sheets. Connector maps and exploded views cover the cover assemblies, internal components, electrical components, paper-pickup assembly, and fuser. Their material lists identify orderable FRUs; items without a reference designator or part number are not treated as field-replaceable.

The removal chapter is intentionally FRU-level. It documents access to and replacement of complete service assemblies rather than component-level PCB repair. Copier/scanner repair coverage reaches cleaning, calibration, feed diagnosis, separation-pad replacement, and complete attachment removal, but not an internal scanner overhaul. The listed equipment is standard bench gear: a #2 Phillips screwdriver, small flat-blade screwdriver, needle-nose pliers, ESD mat, and penlight.

Several repair notes flag easy ways to create a second fault. The toner cartridge has no light-blocking shutter, so leaving the drum exposed can permanently damage its photosensitive surface. The copier/scanner must be electrically disconnected before removal, and its locating tabs and rear pin can be bent or broken if the attachment is forced.

Disconnect AC power before removal work, use an ESD-protected workstation, and let the fuser cool. Some functional checks require live power, but the laser/scanner must never be operated or serviced with its protective cover removed.
