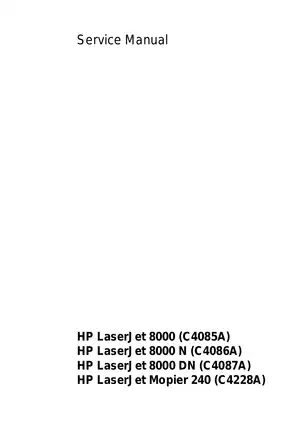

1998 HP LaserJet 8000 / 8000 N / 8000 DN / Mopier 240 Printer Service Manual PDF (P/N C4085-91017)

HP service manual P/N C4085-91017, first edition May 1998, covers the LaserJet 8000 (C4085A), 8000 N (C4086A), 8000 DN (C4087A), and HP Mopier 240 (C4228A) printers.

• Printer engine repair: Removal and replacement of the Fusing Assembly, Laser/Scanner, Main Gear Assembly, Main Motor, and Transfer Roller.

• Electronic assemblies: Formatter PCA, DC Controller, High Voltage Power Supply (HVPS), and Low Voltage Power Supply (LVPS) replacement procedures.

• Paper handling: Paper Input Unit (PIU), registration assembly, pickup and separation rollers, duplexer, envelope feeder, and tray alignment procedures.

• Accessory service: Detailed removal procedures for the 7-bin Tabletop Mailbox, Mailbox with Stapler, and 2 x 500-sheet Input Tray.

• Fault isolation: Engine Test, Event Log, Paper Path Test, Half Self Test, and image-quality troubleshooting tables.

• Service references: Wiring diagrams, controller input/output charts, exploded assembly views, and cross-referenced alphabetical and numerical parts lists.

Suited to printer service technicians familiar with electrical fault isolation and equipped with an ESD-protected workstation.

Print Engine and Image-Quality Diagnosis

The functional overview explains the image formation system, including the photosensitive drum, developing station, transfer roller, and fusing assembly. It follows how the formatter, DC controller, and laser/scanner drive coordinate the printing process.

The Engine Test bypasses the Formatter PCA, helping distinguish print-engine faults from formatter problems before replacement assemblies are selected. The Half Self Test and drum rotation check address image formation, transfer, and fusing faults. Image-quality tables cover fading, dropout, black lines, toner smear, and registration problems; the Repetitive Defect Ruler relates recurring marks to roller components.

Formatter replacement: Service Mode procedures cover restoring the page count, maintenance count, and serial number in NVRAM after board replacement. Control panel menus, configuration pages, and Cold Reset behavior are also explained.

Paper Paths and Accessory Repairs

Accessory procedures extend to delivery-head and flipper assemblies, stapler control electronics, and the stapler bed. Standalone motor, running, and sensor tests are provided for the 2 x 500-sheet Input Tray and 7-bin Tabletop Mailbox, with DIP-switch settings and LED fault patterns.

Accessory coverage: The 2000-sheet Input Tray has alignment and troubleshooting coverage here, but some pickup and vertical-transfer repairs are referred to the separate Service Manual Supplement for Paper-handling Accessories. Additional 8-bin Multibin Mailbox component information also refers to that supplement, which is not included.

Media tables cover capacities and supported paper weights for Trays 1 through 5, the envelope feeder, and duplexer. Site information addresses space, temperature, humidity, electrical requirements, and acoustic emissions.

Electrical References, Parts and Handling Notes

The Printer Functional Block Diagram, Low Voltage Power Distribution System, and General Timing Diagram explain system relationships. DC Controller Inputs and Outputs charts identify sensor and drive connections, while the Mailbox with Stapler Wiring Diagram covers its controller, motors, sensors, and switches. IEEE 1284 parallel-cable pin assignments accompany the interface information.

Parts identification: Exploded views connect assembly components to parts tables, with alphabetical and numerical cross-references. Voltage-specific descriptions distinguish electrical replacement parts. The Hardware Table identifies screw types, dimensions, and part numbers.

HP’s service approach centers on field-replaceable assemblies and selected mechanical subassembly repairs; replacement of individual components on printed circuit assemblies is not supported.

The transfer-roller caution explains how skin oils alter its electrical characteristics and impair image transfer. The Main Motor removal note warns that its steel drive shaft can damage the plastic gears.

Internal high-voltage components, the hot fuser, and the laser assembly require proper electrical isolation and the manual’s service precautions.

A Preview of Tray Adjustment and Maintenance Data

These examples represent a small selection of the manual’s adjustment and maintenance data.

For Trays 2 and 3 and the optional 2 x 500-sheet Input Tray, each adjustment notch changes tray position by 0.5 mm (0.02 inch). These settings address image-margin alignment; the 2000-sheet Input Tray uses a separate adjustment procedure.

The preventive maintenance section specifies a cycle of 350,000 images and identifies the kit’s fusing assembly, transfer roller, and feed/separation roller components.

PDF Search, Bookmarks and Included Pages

Text search and diagram detail: Main text supports searching, but some table passages and diagram labels are not searchable. Embedded bookmarks navigate many service sections, although several Product Information entries have invalid destinations. Small wiring and connector labels require zooming.

The English manual is supplied as one printable 518-page PDF. That total includes 24 pages of front matter, including four blank pages, 492 numbered pages, one additional wiring-diagram page, and the back cover.
