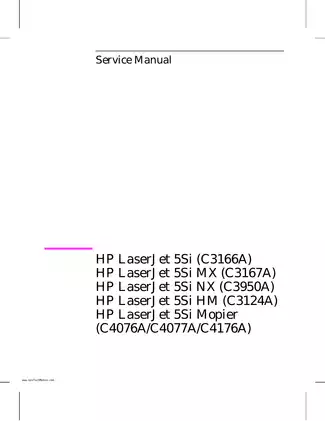

1997 HP LaserJet 5Si / 5Si MX / 5Si Mopier Printer Service Manual (P/N C4077-90960)

Hewlett-Packard publication C4077-90960, first edition September 1997, is the service manual for the 1997 HP LaserJet 5Si, 5Si MX, 5Si NX, 5Si HM, and 5Si Mopier.

The main printer wiring foldout (Figure 7-35, manual page 7-94) is absent from this PDF.

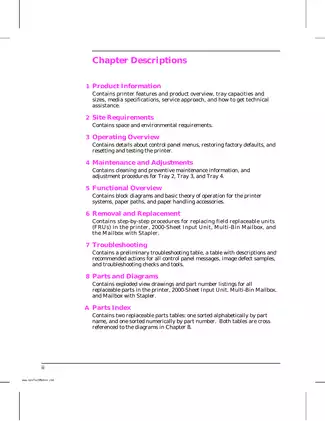

• Print-engine repair: Removal and replacement of the fusing assembly, laser/scanner, main motor and gear assembly, formatter, DC controller, and power supplies.

• Paper-handling service: Feed and separation roller replacement, tray alignment, duplex and envelope-feeder removal, plus 2000-sheet input unit, multi-bin mailbox, and stapler repair.

• Fault isolation: Engine tests, paper path tests, control-panel messages, error-log interpretation, image-defect diagnosis, and checks for recurring paper jams.

• Heavy-media coverage: HM fuser modes, Thermal Control PCA service, and model-specific paper-input, registration, formatter, and duplex components.

• Electrical references: DC controller input/output sheets, accessory wiring diagrams, sensor locations, and printer timing charts for tracing control signals and paper movement.

• Service settings and parts: Cold resets, NVRAM error handling, preventive maintenance kits, exploded view drawings, OEM part numbers, and cross-referenced parts indexes.

This manual is suited to printer service technicians familiar with electrical fault isolation and ESD-sensitive assemblies; HP reserves Service Mode for authorized service personnel.

Print-Engine Diagnosis and Repair

The Engine Test bypasses the Formatter PCA, helping distinguish print-engine faults from formatter-related problems before selecting a repair. Control-panel messages are cross-referenced with error-log entries for paper jams, fuser faults, laser/scanner failures, and memory errors.

Image-quality diagnosis includes the Half Self Test Functional Check, Drum Rotation Functional Check, High-Voltage Power Supply Check, and Repetitive Defect Ruler. The functional overview explains drum cleaning and conditioning through image writing, development, transfer, and fusing, including toner-cartridge contacts and Resolution Enhancement technology (REt).

Repair is primarily by replacement of field replaceable units (FRUs), with selected mechanical subassemblies serviced separately. HP does not support component replacement on printed circuit assemblies.

Formatter replacement includes restoring the page count, maintenance count, and serial number. The main motor removal section warns that its steel drive shaft can damage the plastic gears if handled incorrectly.

Paper Paths, Mailbox, and Stapler

Paper-path coverage follows Trays 1-4, the envelope feeder, and the duplex unit through to the output devices. The C-Link cabling diagram identifies the supported accessory connections; different connections change device numbering in the error log.

Accessory procedures extend to the Tray 4 pickup and vertical-transfer assemblies, mailbox delivery head, transport belt and encoder, anti-curl strings, and stapling bed. The stapler instructions warn that cables reinstalled too tightly can be damaged when the top cover opens.

Heavy-Media Differences and Maintenance

The 5Si HM (C3124A) uses a dedicated Formatter PCA with a Thermal Control PCA, plus distinct paper-input and registration assemblies. Its heavy-media duplexer is C4178A. The Multi-Bin Mailbox and stapler are not supported on the HM model.

The standard preventive-maintenance interval is 350,000 images; the HM interval is 250,000 images. The maintenance section identifies kit contents and cleaning methods; separate adjustments address image alignment from Trays 2, 3, and 4.

Reference tables cover electrical power specifications, acoustic emissions, media limits, and toner-cartridge life. Site requirements include temperature, humidity, and space planning for paper-handling accessories.

Electrical Diagrams and Parts Identification

The DC Controller Inputs and Outputs sheets and General Timing Diagram for LJ 5Si/5Si MX document signal relationships and operating sequences. Accessory drawings include the 2000-Sheet Input Unit Main Wiring Diagram, Multi-Bin Mailbox Main Wiring Diagram, and Stapling Unit Controller PCA Main Wiring Diagram.

Exploded views and parts tables distinguish voltage-specific assemblies and HM components. The I/O appendix covers parallel-cable pin assignments and 5Si MX network configuration for NetWare, TCP/IP, and EtherTalk.

Printer service involves high voltage and hot fuser surfaces; the manual includes power-isolation and laser/scanner precautions.

PDF Text Search and Diagram Readability

Text search covers the main text and parts tables, but many diagram labels are not searchable. There are no embedded PDF bookmarks, and small labels on the DC-controller and Tray 4 diagrams need zooming. This printable English file is a 408-page PDF, including 14 pages of covers and front matter, 34 pages of Appendices A-C, and the four-page subject index.
