Sharp MX-2600N/MX-3100N Copier Factory Service Manual (P/N 00ZMX3100/S1E)

• Covers Sharp MX-2600N, MX-3100N, MX-2600G, and MX-3100G digital full-color multifunction systems in a 460-page factory service PDF, published in 2008 and identified by Sharp document code 00ZMX3100/S1E.
• Distinguishes the N-model color WVGA control panel from the G-model monochrome HVGA panel, including their standard-versus-optional PCL, GDI, scanner, and RSPF equipment.
• Documents developing-unit setup, toner-density initialization, high-voltage adjustment for the main charger, developing bias, and transfer system, image-density sensor calibration, LSU skew correction, OPC drum phase, and color image registration.
• Details scanner and RSPF repair and alignment, including scanner parallelism and image distortion, CCD focus, scan magnification and off-center correction, RSPF height and diagonal alignment, document-size sensing, and touch-panel coordinate setting.
• Provides simulation diagnostics, self-diagnosis and trouble-code tables, jam history, maintenance counters, replacement workflows, firmware updates, and the MFP PWB replacement workflow.
• Includes system and PWB block diagrams, actual wiring charts, connector-level signal lists, sensor/switch and motor locations, and electrical/mechanical relation diagrams for the paper path, LSU, image process, transfer, fuser, duplex, and RSPF sections.

Contents and Scope

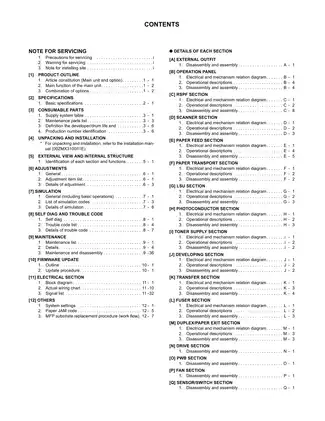

This is Sharp's after-sales service manual for the four listed models, not an operator guide. Its 12 main chapters run from configuration and specifications through adjustments, diagnostics, maintenance, firmware, electrical data, system settings, jam codes, and MFP PWB replacement.

Sections A-Q provide unit-level electrical/mechanical relation diagrams, operating descriptions, and disassembly/assembly material as applicable. Coverage includes the operation panel, RSPF, scanner, paper feed and transport, LSU, photoconductor, toner supply, developing, transfer, fuser, and duplex/paper exit assemblies, followed by the drive, PWB, fan, and sensor/switch sections.

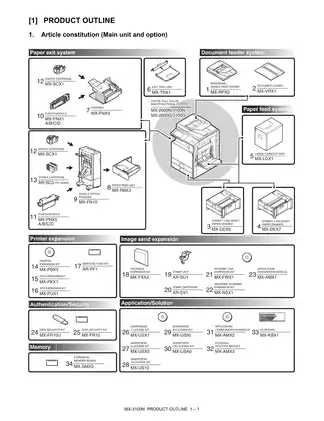

The option tables identify combinations such as the MX-RPX2 reversing single-pass feeder, MX-DEX6/MX-DEX7 paper drawers, MX-LCX1 large-capacity tray, MX-FNX9 inner finisher, and MX-FN10 saddle-stitch finisher, along with related punch, exit, printer, fax, security, and memory options. Unpacking and installation are not reproduced in this PDF; Sharp directs that work to the separate installation manual coded 00ZMX3100/I1E. Maintenance tables also reference a separate Parts Guide.

Specifications, Calibration, and Diagnostics

The model split matters before repair information is selected. The MX-2600N and MX-3100N use the 8.5-inch color WVGA panel and list PCL printing, network scanning, and the RSPF as standard. The MX-2600G and MX-3100G use the 8.1-inch monochrome HVGA panel, with GDI printing standard and PCL, scanner, and RSPF functions shown as optional. Specifications also cover the four-drum laser electrophotographic engine, two-component magnetic-brush development, intermediate transfer belt, heat-roller fuser, paper and document handling, controller interfaces, and separate copy and print resolution data.

The adjustment chapter is arranged as 27 numbered jobs. Sharp notes that unnecessary jobs may be skipped, but the selected work must remain in factory sequence. Print-engine coverage begins with the developing doctor gap, developing-roller main pole, and toner-density reference setting. It then moves through MC/DV and transfer high-voltage checks, process-control sensor calibration, LSU skew, OPC drum phase, print magnification, off-center, lead-edge position, and automatic or manual color registration.

Scanner repair coverage includes scanner-unit parallelism, main- and sub-scan distortion, CCD focus, platen and RSPF magnification, image centering, scan-start position, RSPF height, and diagonal alignment. Separate routines address copy and printer color balance, gamma, density, background reproduction, text/line edge response, fuser paper-guide position, document-size sensors, bypass and RSPF width sensors, and touch-panel coordinates.

Factory simulations support developer initialization, image-density sensor calibration, automatic drum-phase and registration adjustment, LSU skew test patterns, color-balance routines, and firmware loading. Named service aids include the UKOG-0318FCZZ image-sensor calibration jig, UKOG-0162FCZZ gray test chart, UKOG-0317FCZZ/UKOG-0317FC11 servicing color chart, and UKOG-0280FCZZ/UKOG-0280FCZ1 SIT chart. High-voltage sections provide adjustment ranges, monitor readings, check-pin locations, and PWB/component checks.

Electrical Reference, Maintenance, and Repair Notes

Diagnostic coverage goes beyond a code list. Simulations test motors, clutches, solenoids, lamps, sensors, paper transport, developing, and transfer operation. They also display jam and self-diagnosis histories and print stored adjustment, counter, and firmware data. Trouble-code entries pair faults with likely causes, check points, simulation references, and repair actions.

Maintenance sections cover drums and main chargers, developer and DV parts, transfer belts and rollers, fuser parts, feed and RSPF rollers, scanner optics, filters, fans, sensors, and required counter resets. This gives the repair shop both the scheduled service scope and the related component-level access information.

Electrical examples include the system block diagram, MFP controller PWB block diagram, PCU PWB block diagram, scanner control PWB block diagram, power-supply actual wiring chart, and RSPF wiring chart with connector and signal assignments. The signal list identifies device type, function, logic state, connector, pin, and controlling PWB. Firmware repair coverage includes media/USB, FTP, service Web-page updates, and emergency HDD program recovery.

Two manual-specific repair traps stand out. Loosening the CCD screws marked “X” can alter the base angle beyond field adjustment and force replacement of the complete scanner unit. The transfer-unit procedure requires the drum-positioning lock to be fully released before removal to avoid belt damage, followed by reinitialization after manual belt-tension release.

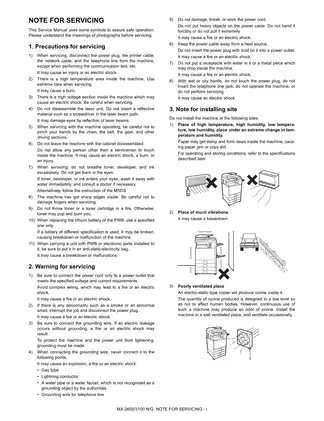

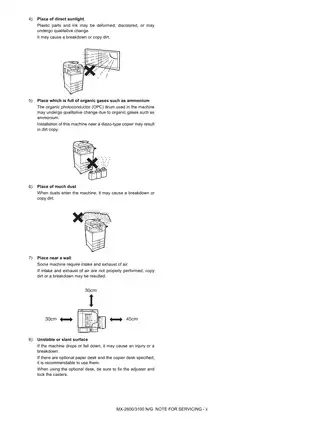

High-voltage circuits, hot fuser components, laser optics, rotating drives, and ESD-sensitive PWBs require proper copier-service safety practices. This material is intended for technicians and experienced repair personnel familiar with electrical isolation and live diagnostic precautions.
