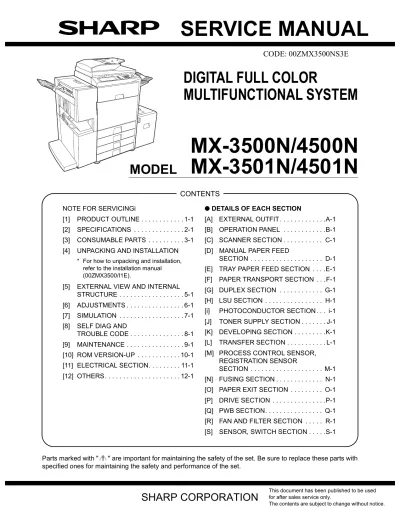

Sharp MX-3500N/4500N & MX-3501N/4501N Copier Service Manual, 2006 (P/N 00ZMX3500NS3E)

This Sharp Corporation service manual covers the MX-3500N and MX-4500N with RSPF, plus the MX-3501N and MX-4501N with DSPF Digital Full Color Multifunctional Systems. P/N 00ZMX3500NS3E carries a December 2007 printing date.

PDF Navigation and Page Count

Text search and wiring detail: The PDF has searchable text but no embedded bookmarks. Small connector and pin labels in dense wiring charts require zooming.

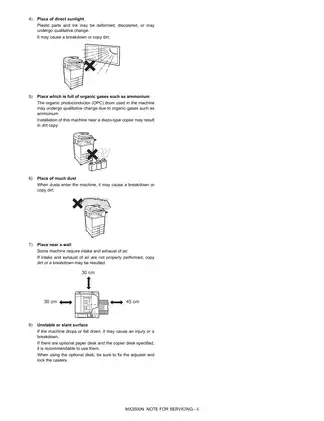

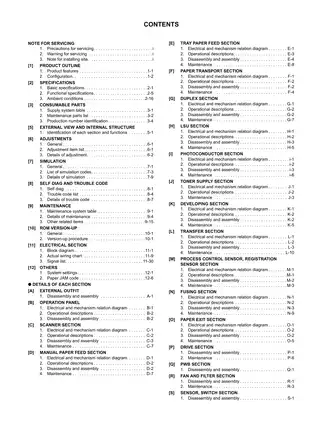

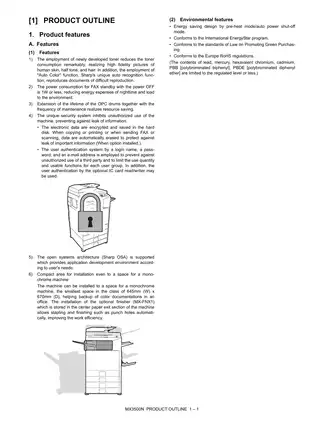

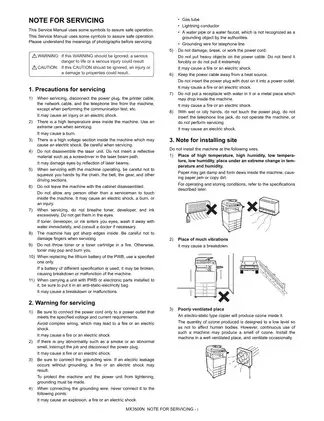

One printable 448-page PDF, including nine pages of front and back matter: the cover, contents, two service-safety pages, two memo pages, a lead-free solder page, a battery-safety page, and the final imprint.

Copier Repair, Image Calibration, and Fault Diagnosis

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Other topics include cooling-fan and filter replacement and administrator system settings.

• Photoconductor and developing units: Step-by-step replacement procedures for drums, main chargers, cleaning blades, developer, seals, and toner density sensors.

• Transfer and fusing: Primary and secondary transfer-belt removal and component replacement, with heat-roller, heater-lamp, thermistor, and fusing web-unit service.

• Paper feed and duplex: Pickup and separation rollers, torque limiters, registration rollers, ADU gates, and paper-exit shifter component repair.

• Image calibration: LSU image skew, OPC drum phase, image registration, and copy/printer color-balance adjustments, with automatic and manual methods.

• Self-diagnosis and simulations: Sensor-state checks, motor and clutch tests, trouble histories, and paper-jam code definitions.

It is suited to copier repair technicians familiar with service-mode diagnostics and electrical measurements.

Model Configuration and Feeder Scope

It maps out functional specifications, product layout, and system configuration for the different feeder variants. RSPF and DSPF specifications, electrical interfaces, and diagnostic simulations are included.

Feeder coverage has limits: Certain RSPF adjustments refer to the separate MX-RPX1 service manual; the DSPF reference is 00ZMX3501NS1E. Unpacking and installation are assigned to 00ZMX3500/I1E. Those companion manuals are not part of this PDF.

Scanner Service and Component Replacement

Beyond routine maintenance, the repair sections cover scanner drive-wire installation, lamp and CCD-unit removal, and scan-focus and distortion adjustment.

Drive and toner supply: Toner-supply descriptions trace the cartridge shutters and transport pipes. The drive and PWB sections address motor, control-board, and HDD replacement.

Post-repair calibration: Adjustments are tied to specific events such as developer, photoconductor, sensor, or control-board replacement. These adjustment lists help technicians identify which calibrations apply after a component change.

The manual distinguishes SIM25-2 developer initialization from ongoing process control and gives CCD gamma calibration, document-size sensor adjustment, and touch-panel coordinate setting. The image density sensor calibration procedure specifies jig UKOG-0318FCZZ; CCD gamma adjustment uses SIT chart UKOG-0280FCZZ or UKOG-0280FCZ1.

Component precautions: Loosening the marked CCD-base screws can put the optics beyond field adjustment, requiring complete scanner replacement. The transfer-unit precautions address primary-belt damage when the drum-positioning lock remains engaged during removal.

Diagnostics, Wiring, and Firmware

Trouble-code entries explain detection conditions, likely causes, and the relevant checks. Examples include F2 toner/process-control faults, H2–H4 fusing-temperature and thermistor faults, and U2 memory/EEPROM errors.

HDD read/write checks support storage diagnosis, while SIM56-2 backup and restore covers stored machine data, including user authentication and the address book.

Electrical documentation includes the System block diagram, Serial communication diagram, and separate AC power-line diagrams for the 120V and 200V series. The Fusing unit section (P3) wiring chart includes connector pin-location views; Scanner section 1/2 (P17) traces the scanner connections. Signal tables identify component functions and connector-level states.

ROM Version-Up documents firmware loading through a USB-connected PC, USB memory, FTP, and the service web page, with version-compatibility checks and emergency recovery procedures.

Maintenance Planning and Service References

The maintenance sections identify service-life criteria for drums and developer, with cleaning, inspection, lubrication, and replacement tables. Regional listings distinguish consumables and service kits.

Drum life varies with rotations, job size, and the color/black-and-white workload; color-output maintenance intervals are reference values rather than fixed replacement cycles.

Reference sections also document regional power requirements and shifter specifications, alongside toner sensor sensitivity, scanner exposure, and high-voltage adjustment tables.

Before internal repair, technicians must follow the manual’s electrical-isolation precautions. The high-voltage sections and hot fusing assembly present separate shock and burn hazards.

Developing-Unit Adjustment Preview

The developing doctor-gap specification is 0.40 ± 0.05 mm, checked at positions 40–70 mm from each end of the doctor blade.

For developing-roller main-pole alignment, the manual specifies 37.8 ± 0.5 mm between the marked pole position on the roller surface and reference point A on the developing-unit frame. These mechanical checks address low or uneven image density, blurred prints, and toner dispersion.
