John Deere 675 & 675B Skid Steer Loader Technical Manual, 1987–1994 (P/N TM1374)
267 Pages • Printable PDF • 16.26 MB • Download
John Deere Models Covered & Key Technical Specifications
Models: 675, 675B
Model Years: 1987–1994 (1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994)
Serial Numbers: 380001–475000 (675, Single Switch Seat), 475001-up (675B, Deluxe Seat)
675B Operator Presence System, Rectangular Connector: 010001–110029 (without Construction Package), 010001–115032 (with Construction Package)
675B Operator Presence System, Round Connector: 110030-up (without Construction Package), 115033-up (with Construction Package)
Wire Harness Diagrams: 380000–750000 (without Construction Package), 010001-up (with Construction Package)
Hydraulic Schematics: 675; 675B S/N -10000 and S/N 10001-up
-
Engine: Yanmar 4TN82ESP diesel
-
Engine Displacement: 110.8 cu. in. (1816 cc)
-
Operating Power: 38.8 hp at 2800 rpm
-
Hydraulic Pump Output: 14 gpm at 2800 rpm
-
Fuel Tank Capacity: 16.1 gal (61 L)
-
Cooling System Capacity: 3.4 gal (12.9 L)
-
Transmission: Hydrostatic
John Deere Manual Features & Selected Content Preview
John Deere technical manual TM1374 (September 1994) covers the 675 and 675B skid steer loaders with the Yanmar 4TN82ESP four-cylinder diesel. Machine-level repair sections are paired with operational checkout and system diagnosis.
PDF Search, Diagram Detail, and Page Count
Search and illustration limits: English text search is not usable, and there are no embedded PDF bookmarks. Small wiring and harness labels remain partly difficult to read when enlarged. Several pages carry large PROOF markings; some engine removal and installation illustrations are replaced by “ART NOT FOUND” placeholders.
The download is one printable, 267-page PDF, including the cover, one largely blank separator page, and two hydraulic schematic sheets at the end.
Engine, Hydrostatic Drive, and Loader System Coverage
The following selected contents outline the main workshop coverage. Other topics include bucket-capacity references and cold-weather lubrication guidance.
-
Engine and fuel systems: Engine and radiator removal and installation, throttle-linkage adjustment, fuel-transfer-pump testing, fuel-tank and sender service, and fuel-system bleeding.
-
Engine diagnosis: Cooling-system pressure tests, compression checks, engine-oil-pressure testing, idle-speed adjustment, and injection-pump timing inspection.
-
Hydrostatic drive: Pump and motor teardown, component inspection, reassembly, post-repair start-up procedures, and pump/motor efficiency testing.
-
Final drive, steering, and brakes: Drive-chain, idler, axle, and spring-dampener repair, steering-neutralizer overhaul, and park-brake inspection and adjustment.
-
Loader hydraulics: Charge-pump, control-valve and cylinder repair, boom-lockout diagnosis, relief-pressure and flow tests, cycle-time checks, and boom/bucket drift diagnosis.
-
Electrical systems: Starting, charging, preheat, fuel-shutoff and operator-presence tests, supported by configuration-specific wiring diagrams and component-location drawings.
John Deere wrote this manual for experienced service technicians; its diagnostic sections assume familiarity with the machine and its systems.
Engine Installation, Fuel Service, and Repair Limits
Engine work includes mount inspection, spring-dampener spline preparation, and alignment with the hydrostatic pump. Radiator inspection addresses damaged fins, seams, mounting pads, and cooling-system leaks.
Fuel-system procedures cover transfer-pump and shutoff-solenoid replacement, fuel-tank inspection, and fuel-gauge sending-unit replacement. Engine checkout charts connect starting, performance, temperature, and fuel-delivery complaints with the appropriate diagnostic tests.
Internal engine work: This is not a complete internal Yanmar engine overhaul manual. Internal engine work and starter, alternator, and voltage-regulator repair are referred to CTM-3, which is not included.
Hydrostatic Pumps, Motors, and Final-Drive Versions
Step-by-step procedures cover tandem-pump separation, back-plate service, needle-bearing replacement, reassembly, and rejoining the pumps. Motor coverage adds internal inspection, shim-pack selection, and rolling-torque checks.
Chain and idler compatibility: The manual distinguishes Daido and KCM chains and earlier and later idler assemblies. The wider KCM chain requires the updated idler arrangement. AM121454 left-hand and AM121455 right-hand chain-adjustment kits are identified for the relevant upgrades.
Drive-gear service, front and rear axle work, chain-case access, chain installation, tension adjustment, and post-repair checks are covered. The chain case also serves as the hydraulic reservoir, so its repair instructions address metal debris and weld-spatter contamination.
The hydrostatic-motor back plate must not be forced onto the housing; failure to seat indicates internal misalignment. The winching procedure is limited to short moves at very low speed because towing behind another vehicle can damage the hydrostatic pumps.
Steering and brakes: Neutralizer adjustments address creep and control-lever stop settings. Park-brake instructions distinguish linkage-length adjustment from changes to spring tension.
Loader Hydraulics and Valve Service Limits
The Cessna gear-type implement pump has dedicated flow-testing coverage. Repair sections address the charge pump, main control valve, diverter and auxiliary valves, lift-arm and bucket cylinders, oil cooler, boom-lockout solenoid, boom relief valve, and charge check valve.
Valve differences: Main-control-valve spools are matched to the body, and paint or corrosion on exposed spools can damage internal porting during removal. Charge check valves with a machined groove are replacement-only; the ungrooved version has disassembly and inspection procedures.
Checkout charts cover weak lift, bucket rollback and dump problems, float operation, boom lockout, cylinder drift, and the mechanical lift-arm lock.
Before service, lower attachments or support raised lift arms on the factory stops and relieve hydraulic pressure before opening any line.
Electrical Configurations and Diagnostic References
Seat procedures distinguish the 675 single-switch arrangement, S/N 380001–475000, from the 675B deluxe-seat arrangement, S/N 475001-up. Separate operator-presence tests address rectangular and round connectors, including different pin references and Construction Package assignments.
Serial-specific harness drawings help match the test path to the machine before wires or switches are replaced. The final hydraulic schematic sheets distinguish the early arrangement from the later 675B system with bucket lockout.

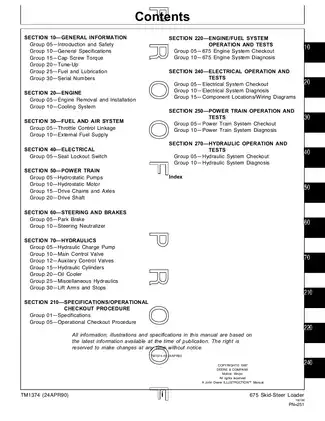

Illustrated references include the throttle-control linkage drawing, hydrostatic-pump internal component view, chain-case cross section, electrical component-location drawing, and 675B operator-presence schematics.
Tools and specifications: Factory callouts include the JDG-356 fuel-pump pressure test kit, JTO1674 compression test kit with JDG560 adapter, JDG282 hydraulic-oil temperature gauge, and pressure-gauge and Flowrater setups. Reference data includes component-specific torque tables, approved fluids and capacities, clearances, wear limits, adjustment data, and electrical test values.
Examples of Fuel-Delivery and Compression Test Data
Fuel-transfer-pump specifications pair a minimum pressure of 21 kPa (3 psi) with delivery of 200 mL (7 fl oz) in 30 seconds. The corresponding test uses fuel at 15–25°C (59–77°F).
For the compression test at normal engine operating temperature, the manual specifies a minimum of 2448 kPa (355 psi) after three seconds of cranking and a maximum cylinder-to-cylinder difference of 490 kPa (71 psi).
