John Deere Models Covered & Key Technical Specifications

Model: 710B

Model Year: 1986

Service-brake pressure plates by serial number: Riveted type (-701416); bonded type (701417-).


  • Engine: 6-cylinder turbocharged diesel, 4-stroke cycle

  • Engine displacement: 329 cu. in. (5.392 L)

  • Gross engine power: 105 hp (78 kW) at 2200 engine rpm

  • Transmission: Full power shift, 8 speeds forward, 4 reverse

  • Steering: Hydrostatic power

  • Hydraulic system pressure: 2500 psi (17 238 kPa)

  • Hydraulic pump: 16 radial pistons, variable flow

  • Hydraulic system flow: 53 gpm (3.34 L/s) at 2200 psi

  • Fuel tank capacity: 33 gal. (125 L)

  • SAE operating weight with ROPS: 9890 kg (21,800 lb.)

John Deere Manual Features & Selected Content Preview

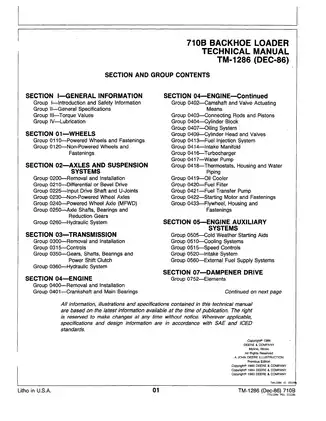

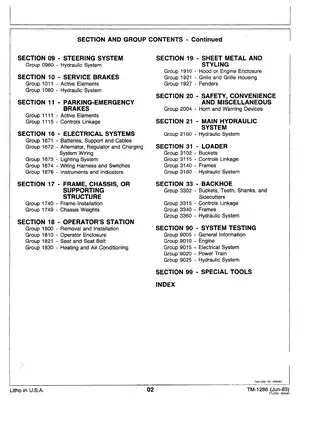

John Deere Technical Manual P/N TM-1286 (Dec-86) covers repair, diagnosis, and system testing for the 710B Backhoe Loader.

Service Text, Bookmarks, and Foldout Diagrams

Search and diagram detail: Much of the repair and test text is searchable, but several hydraulic-operation pages and foldout diagrams are not. Embedded bookmarks cover major sections and many individual procedures. Small electrical labels and connector numbers on the wide foldouts require zooming.

One printable English PDF contains 1,356 pages, including the original front and rear covers and blank pages.


Engine, Power Train, and Hydraulic Service

The selected coverage below highlights major repair and test areas rather than reproducing the full contents. Other topics include cold-weather starting aids and dampener-drive service.

  • Engine repair: Engine removal with or without the transmission and reverser, internal inspection and assembly, fuel-system bleeding, and injection-pump timing procedures.

  • Power shift transmission: C1/C2 clutch-pack, planetary, reduction-gear, control-valve, and modulator work, supported by adjustment specifications and transmission testing.

  • Hydraulics and steering: Main pump and stroke-control valve overhaul, steering valve and cylinder repair, and pressure, flow, leakage, relief-valve, and cycle-time tests.

  • Brake service: Hydraulic wet-disc brake inspection, brake valve and accumulator work, hydraulic bleeding, and parking-emergency brake repair and linkage adjustment.

  • Loader and backhoe: Control-valve and cylinder repair, boom and swing-frame work, and service for bucket, crowd, stabilizer, and extendible-dipperstick components.

  • Electrical diagnosis: Starting, charging, lighting, warning, and accessory-circuit tests; tachometer calibration; electrical schematics, wiring diagrams, and wire-routing descriptions.

John Deere wrote this technical manual for experienced service technicians; the procedures call for shop tools, hydraulic test equipment, and electrical meters.

Engine Teardown and Fuel-System Limits

Illustrated step-by-step procedures cover the crankshaft, camshaft and timing gear train, pistons and liners, cylinder head and valves, turbocharger, and water pump. Service groups provide the applicable specifications, wear tolerances, torque values, essential tools, and materials alongside inspection, assembly, adjustment, and final-check information.

Fuel-injection pump removal, installation, timing, and system bleeding are covered, but internal pump repair is referred to SM-2045. Nozzle removal and installation are included; nozzle repair is referred to TM-7214. Those separate manuals are not part of this PDF.

Reference data includes fuel and lubricant recommendations, fluid capacities, component-specific torque tables, clearances, bearing preload and end play, wear limits, and electrical test values.

Axle, Loader-Valve, and Backhoe Configurations

Front axles: Separate procedures distinguish MFWD from non-powered front-axle machines. MFWD coverage includes the axle, constant-velocity joints, transfer case, clutch valve, and steering cylinder; differential setup and axle-bearing adjustment are also documented.

Loader valves and backhoe controls: Gresen and Cessna loader-valve sections distinguish bucket sections with and without return-to-dig. Backhoe coverage separates two-lever from three- and four-lever controls and includes standard and extendible dipperstick components.

Auxiliary hydraulics include solenoid-controlled auxiliary-valve and flow-control-valve disassembly and assembly, plus Husco auxiliary-valve operation diagrams.

Service-brake serial break: Riveted pressure plates apply through serial number 701416 and bonded plates from 701417 onward. The bonded type is also specified as the replacement for earlier units.

Cab, ROPS, and Heater Coverage

Cab and ROPS removal procedures are separate. Operator-station coverage includes cab glass, wipers, heater motor and core, and the heater valve and switch. Despite its “Heating and Air Conditioning” title, that group contains no refrigerant-circuit, compressor, condenser, or evaporator service procedures.

Fault Isolation, Test Charts, and Shop Tools

Section 90 pairs malfunction charts with system-specific measurements, helping technicians relate symptoms to test results before choosing a component teardown. Coverage spans engine performance, electrical faults, power train, main hydraulics, steering, brakes, differential lock, and transmission hydraulics.

Named checks include main-pump flow and standby pressure, steering and component leakage, MFWD clutch pressure, brake-accumulator precharge, and transmission pump flow and lube pressure. Complete transmission test charts and drag tests support checks of clutch and brake operation.

Diagram references: Electrical Schematics and Electrical Wiring Diagrams are supplied for cab and ROPS configurations. Other illustrations include Power Flow Through Transmission, Transmission Hydraulic System Schematic, Main Hydraulic System Schematic, the MFWD steering-cylinder exploded view, and Gresen/Cessna loader-valve cross sections.

Equipment references: Service-Gard listings identify the D-01080AA Hydraulic Analyzer, D-15051NU Flow Meter, D-27001TX Hydraulic Cylinder Servicer, D-27501BM digital volt-ohm-amp meter, and JT01642 Low-Lift Transmission Jack. Dimensioned drawings also support making the illustrated liner-holding fixture and shop drivers.

Transmission and Cylinder Assembly Cautions

The transmission installation section explains how drawing the case against the flywheel housing with cap screws can damage the transmission if the input shaft and pilot bearing are misaligned. Backhoe-cylinder assembly cautions address cap-seal damage from nicked or burred piston lands and barrel chamfers, or rod-to-barrel misalignment.

Before opening hydraulic lines or working around raised loader or backhoe structures, follow the manual's safety and blocking procedures, relieve stored pressure, and use lifting equipment rated for the component.

A Preview of End-Play and Accumulator Test Data

Crankshaft end play is specified at 0.10–0.20 mm with new parts, with 0.38 mm as the maximum allowable value.

The brake-accumulator precharge test specifies 8,500 ± 300 kPa with oil at 40 ± 4°C and the engine stopped.
