1982–1985 Honda CB450 / CM450 Shop Manual (P/N 61MC003)

• Covers CB450T, CB450SC, CM450C, CM450A and CM450E, with model-specific addenda for 1982, 1983 and 1985.
• Engine repair extends from cylinder-head and piston work to crankshaft/balancer service, bearing selection, and internal transmission disassembly and reassembly.
• Carburetor procedures cover vacuum-piston and accelerator-pump inspection, synchronization, and pilot-screw idle-drop adjustment.
• Separate drivetrain sections address wet multi-plate clutches and the CM450A torque converter, including primary-drive inspection and stall-speed testing.
• Chassis repair includes front-fork overhaul, steering-head bearings, swingarm service, and hydraulic master-cylinder/caliper rebuilding and bleeding.
• Electrical diagnosis covers the alternator, regulator/rectifier, CDI ignition, electric starter and safety switches, supported by model-specific wiring diagrams and troubleshooting charts.

Document Overview and Model Coverage

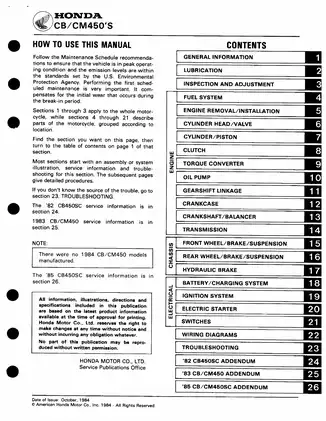

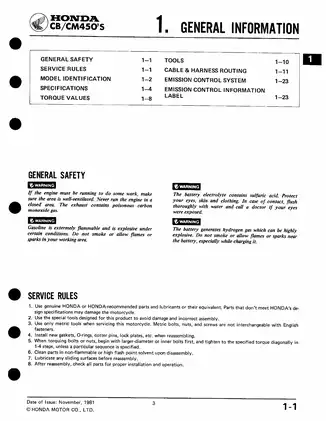

This 328-page manual, supplied as 27 chapter PDFs, reproduces Honda shop manual 61MC003 with revisions through October 1984. It contains 298 base-manual pages, an 11-page 1982 CB450SC addendum, a 5-page 1983 CB/CM450 addendum, and a 10-page 1985 CB450SC addendum. A 2-page Service Tool News sheet and a 2-page CM450A service bulletin complete the package.

The 1983 specification update covers CB450SC, CM450A and CM450E; the 1985 addendum applies to CB450SC. The publication explicitly excludes 1984 models. The addenda supplement the base repair procedures rather than replace them.

Engine and Drivetrain Repair

The 447 cc air-cooled OHC vertical twin receives both top-end and bottom-end coverage. The manual distinguishes head and cylinder work that can be performed with the engine in the frame from crankshaft, balancer and internal transmission work requiring engine removal.

Cylinder-head service includes valve-guide replacement and reaming, valve-seat refinishing, and camshaft timing. Bottom-end inspection uses Plastigage checks and color-coded crankshaft and connecting-rod bearing selection charts. Oil-pump rotor inspection and pressure-relief-valve service are covered alongside lubrication-system troubleshooting.

The six-speed manual transmission and the CM450A’s two-speed semi-automatic torque-converter drivetrain have separate inspection and assembly instructions. CM450A coverage extends to the stator shaft, sealing rings and ball-type gearshifter, plus its kickstarter mechanism. Its change relay and side-stand ignition circuits also receive model-specific tests.

Carburetor Service and Model-Year Updates

Fuel-system coverage extends to air cut-off valves, float-level inspection, fast-idle adjustment and factory high-altitude settings. Carburetor separation cautions identify the joint pipes and choke linkage as damage-prone parts when the assembly is handled incorrectly.

Service Bulletin CB/CM450 #2, dated December 1982, addresses the 1982 CM450A’s low-speed, part-throttle driveability problem. It documents the Spring Collar Kit 16020-MC1-305 and updated spark-plug specification, with an illustrated installation procedure.

The 1985 CB450SC fuel data separates VB2EA 49-state and VB2FA California carburetors. California coverage includes charcoal-canister hose inspection and purge-control-valve vacuum and airflow tests for hot-restart complaints. The valve-test cautions explain the risk of damage from high-pressure air sources.

Chassis Variants and Illustrated References

The CM450E has separate front-drum-brake and conventional-fork instructions, rather than the hydraulic disc-brake and air-assisted-fork procedures used for the other base models. Rear-wheel service covers hub dampers, drum brakes and bearings, with additional procedures for rear-shock spring removal, damper inspection and swingarm bushings.

The illustrated material ranges from clutch exploded views and the engine lubrication diagram to CB450SC Cable & Harness Routing drawings. For diagnosis, the manual provides model-specific Wiring Diagrams and symptom charts such as “Engine Does Not Start or Is Hard to Start.” California models have a separate Vacuum Hose Routing Diagram.

Air-assisted fork service involves stored air and spring pressure; follow the manual’s safety precautions and motorcycle-support requirements before chassis work.

Factory Specifications and Special Tools

Reference tables provide fastener-specific torques, compression-test data, wear limits and electrical test values. Oil-capacity data distinguishes drain-and-refill quantities from disassembly capacities. Maintenance sections cover valve clearance, cam-chain and balancer-chain tension, and ignition-timing inspection.

CDI test tables specify instruments and measurement ranges because an unsuitable tester can give misleading readings. The October 1984 Service Tool News CB450SC/T #1 sheet lists required tools, applications and substitutions, including rotor puller 07933-3950000 in place of 07733-0020001.
