Ford Trader HA, SL, SL Turbo & TF Workshop Manual 1989–1998

Ford Trader workshop manual for 1989–1998 trucks with HA, SL, SL Turbo, and TF diesel engines. Covers mechanical repair, scheduled maintenance, and engine and body electrical systems.

PDF Format and Navigation

Text search and diagram viewing: Searchable OCR text is available throughout the main sections, although recognition errors affect some tables and diagram labels. Embedded bookmarks open 25 main sections. Small wiring labels and connector details are best read with zoom.

One printable, English-language PDF containing 905 pages total, including one cover page, two blank pages, and two memo pages.

Diesel Engine, Drivetrain and Chassis Work

The selected coverage below outlines major workshop topics rather than the full contents. Additional sections address windshield wiper service and audio troubleshooting.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and block disassembly, internal inspection, timing-gear assembly, and reinstallation.

• Fuel and turbo systems: Injection timing, nozzle testing and adjustment, SL Turbo boost and wastegate checks, turbocharger replacement, and exhaust-controlled heating-system diagnosis.

• Lubrication and cooling: Oil-pump disassembly, oil-cooler service, cooling-system pressure checks, thermostat inspection, and water-pump replacement procedures.

• Clutch and transmission: Hydraulic clutch service, vacuum-assist inspection, and W5M-R and Z5M-R gearbox disassembly, inspection, adjustment, and assembly.

• Axles and steering: Wheel-hub and kingpin service, differential overhaul, manual steering repair, and engine-speed-sensing power-steering diagnosis.

• Brake systems: Drum-brake and wheel-cylinder service, hydraulic bleeding, tandem diaphragm power-brake-unit overhaul, load-sensing G-valve tests, and center parking-brake repair.

• Electrical diagnosis: Starting and charging tests, Quick Start System checks, air-heater diagnosis, wiring diagrams, connector views, and component-location drawings.

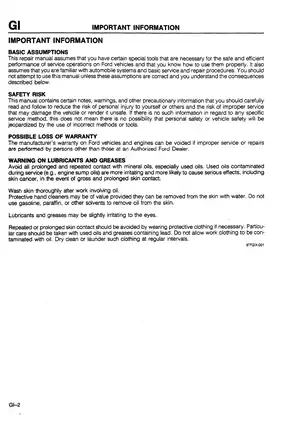

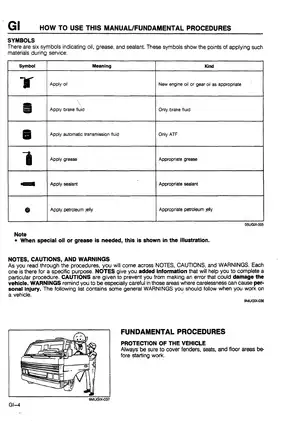

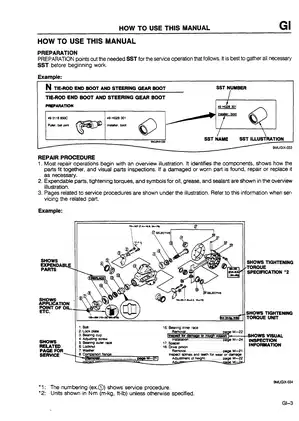

The manual assumes familiarity with automotive systems and basic service and repair procedures, along with the specified special tools and knowledge of their proper use.

Engine Rebuilding and Scheduled Service

Internal engine coverage includes cylinder-head distortion checks, valve and guide measurements, valve-seat repair, piston and ring inspection, crankshaft bearing clearances, and timing-gear assembly. Exploded views identify component orientation, replacement items, tightening torques, and lubrication points.

Maintenance charts distinguish general right-hand-drive and Australian models, with engine-specific schedules and notes for severe operating conditions.

Injection Systems and SL Turbo Service

The HA timing section uses a dial-gauge procedure and identifies cam-lift measuring device SST 49 9140 074. Separate SL/TF procedures cover their inline injection-pump arrangements, supported by vacuum-hose routing diagrams.

Injection-pump service: Removal, installation, timing, and related drive-component work are described. The manual directs internal pump servicing to an authorized Diesel Kiki distributor with the required special tools and testers.

For the SL Turbo, coverage extends to intercooler removal and inspection, turbine-wheel checks, and restrictions in the turbocharger oil feed and return passages. Exhaust-controlled heating diagnosis includes the shutter valves, actuators, switches, and control unit.

During SL/TF timing work, mishandling the delivery valve can unseat the pump barrel, allowing fuel into the engine and causing damage. Incorrect injection timing can also cause diesel knock or reduced power.

Always observe standard shop safety protocols and wear appropriate personal protective equipment when working with pressurized diesel fuel systems or heavy vehicle components.

Transmission and Differential Benchwork

Gearbox inspection includes synchronizer rings, double-cone assemblies, selective shims, and bearing end play. Power Flow diagrams distinguish the covered Power/Economy sub-transmission arrangements.

Differential procedures address pinion-height selection, bearing preload, ring-and-pinion backlash, and tooth-contact checks. These references support assessing worn components and selecting the adjustments required during a rebuild.

Steering and Brake Diagnosis

Manual and engine-speed-sensing power steering have separate troubleshooting and overhaul procedures, including worm-shaft preload adjustment, air bleeding, and pump pressure testing.

The load-sensing G-valve section links pressure-test tables to valve part numbers and cargo-deck configurations. Its on-vehicle test excludes left-hand-drive models with 14- or 17-foot cargo decks.

Cold-Start Circuits and Wiring References

HA Quick Start System controls differ from the SL/TF air-heater controls. Matching the correct circuit and component tests helps narrow a cold-start complaint before replacement parts are selected.

The Electrical Wiring Schematic, Quick Start System and Air Heater Control System circuits, and Parts Location drawings connect fault tracing with connector identification, wire-color codes, and harness locations.

Cab, Body and Heater Repairs

Body information covers standard, wide, and crew-cab arrangements, including tilt locks, cab mounts, window regulators, and underbody dimensions. Heater procedures address the front heater core, blower motor, resistor, and control-cable adjustments.

Selected Timing, Oil-Pressure and Boost Specifications

For the HA engine’s static injection-timing check, the manual specifies a 1.00 mm dial-gauge cam-lift reading at the prescribed timing position.

The engine oil-pressure test specifies a minimum of 373 kPa at 3,600 rpm with the engine at normal operating temperature. For the SL Turbo, on-vehicle boost pressure is specified at 41.2–49.1 kPa at 4,000 rpm after warm-up.
