2001-2007 Mercedes C-Class C 180, C 200, C 230, C 240, C 280, C 320, C 350, C 32 AMG, C 55 AMG Service Manual
Comprehensive service and repair data for your 2001-2007 Mercedes C-Class. Covers C 180, C 200, C 230, C 240, C 280, C 320, C 350, C 32 AMG, C 55 AMG. Includes maintenance schedules and diagnostic procedures.
Manual Preview

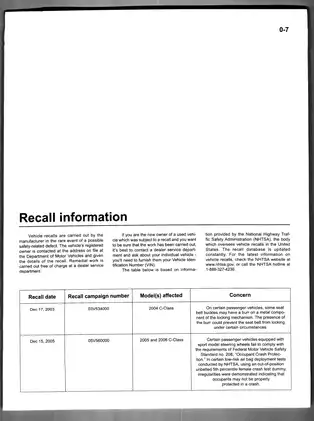

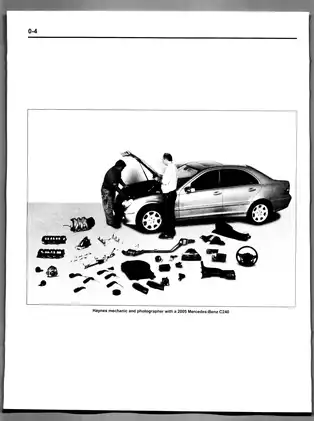

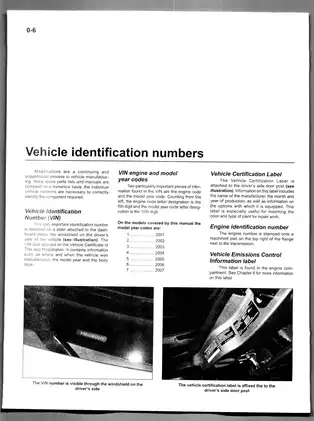

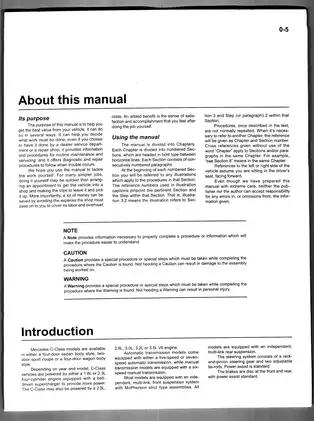

Sample pages from the 2001-2007 Mercedes C-Class C 180, C 200, C 230, C 240, C 280, C 320, C 350, C 32 AMG, C 55 AMG Service Manual manual
Purchase & Download
Mercedes Models Covered & Key Technical Specifications
Models: Mercedes C-Class (2001–2007)
Sub-models / Variants: C 180, C 200, C 230, C 240, C 280, C 320, C 350, C 32 AMG, C 55 AMG, Sedan, Sport Coupe, Wagon
Build Years: 2001–2007
Technical Data:
- Engine oil capacity: 7.4 quarts (7 liters) for 4-cylinder models (2002), 5.8 quarts (5.5 liters) for 4-cylinder (2003 and later), 8.5 quarts (8 liters) for V6 models (2002 and 2006+), 7.9 quarts (7.5 liters) for V6 (2003–2005)
- Brake pad lining thickness (minimum): 1/8 inch (3.2 mm)
- Engine oil viscosity: SAE 0W-30, 0W-40, 5W-30, 5W-40, 5W-50 (preferred); SAE 10W-30, 10W-40, 10W-50, 10W-60 (alternative)
- Cylinder compression pressure (minimum): 174 to 217 psi (4-cylinder, 2002); 142 psi (4-cylinder, 2003+); 174 to 203 psi (V6 models)
- Spark plug gap: 0.039 inch (1.0 mm) for 2002/2005 models; 0.031 inch (0.8 mm) for later models
Mercedes Manual Features & Content Preview
Technical Scope for the 2001–2007 Mercedes C-Class
- Covers 2001–2007 Mercedes C-Class C 180, C 200, C 230, C 240, C 280, C 320, C 350, C 32 AMG, and C 55 AMG, including four-door sedan, coupe, and wagon body styles
- Official Haynes publication, ISBN 978-1-56392-669-3, incorporating service data for both Type 111 and Type 271 four-cylinder engines as well as Type 112 and 272 V6 engines
- Features 12 chapters covering engine mechanical, cooling, fuel, transmission, driveline, electrical, brakes, suspension, and steering systems
- Includes 86 detailed troubleshooting sections to assist with identifying engine, cooling, clutch, transmission, driveshaft, axle, brake, and steering issues
- File delivered as a direct download the moment payment clears
- Indexed PDF search covers every chapter and appendix
- Full-text search finds any part number in seconds
- This 2001–2007 service manual is the essential reference for maintaining the C-Class platform, providing technical specifications for engine overhaul, torque values, and maintenance intervals across all documented gasoline powerplants.
Procedural and Diagnostic Coverage
The 2001–2007 Mercedes C-Class service manual provides detailed technical information for routine maintenance and major repairs. Chapters document procedures for the engine mechanical systems, including timing chain replacement, cylinder head removal, and piston ring installation. Electrical sections outline chassis systems and starter motor troubleshooting, while transmission sections address both manual and automatic service. The publication also details brake system inspections, suspension geometry, and steering linkage maintenance, ensuring proper alignment and performance for the sedan, coupe, and wagon variants.
Engine and Maintenance Specifications
This manual provides specific technical data for the C-Class engine range. Engine oil capacity for 4-cylinder models (2002) is 7.4 quarts (7 liters), while 2006 and later V6 models require 8.5 quarts (8 liters). Cylinder head bolt torque values are documented in multi-stage sequences across engine variants, with final-stage angles ranging from 90° to 180°. Coolant system capacity is documented up to 15.3 quarts for early 4-cylinder models. Intake and exhaust manifold torque is specified at 15 ft-lbs (20 Nm) for most configurations. The manual is an official 100-page Haynes OEM-style workshop manual covering the 2001–2007 Mercedes C-Class, documenting engine, chassis, electrical, and fuel-injection specifications for the C-Class platform build.
