1995 Yamaha EDL6500S Diesel Generator Service & Repair Manual (P/N LIT-19616-00-68)

Covers the 1995 Yamaha EDL6500S liquid-cooled, four-stroke horizontal diesel generator. Yamaha service publication LIT-19616-00-68 identifies the CARB version from serial 7NF-960001 and covers mechanical and electrical repair.

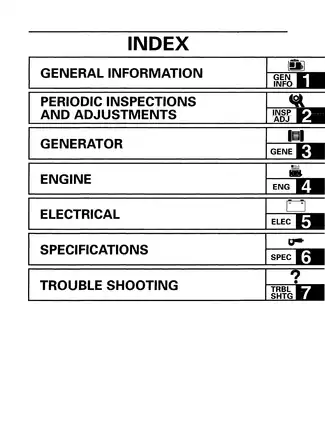

Search, navigation, and wiring detail: Searchable OCR text and chapter/subsection bookmarks are included. OCR errors can affect exact-number searches, and small wiring labels require zooming. The main-index return bookmark requires a separate file.

• Engine repair: Engine removal, cylinder-head and valve work, crankshaft and bearing inspection, piston service, timing-gear assembly, and compression testing.

• Fuel injection: Injection timing adjustment, nozzle-pressure and spray checks, injection pump output readjustment, Q-set adaptor setup, and tamper-resistance cap procedures.

• Generator assembly: Stator and rotor removal, drive-belt adjustment, carbon-brush replacement, and disassembly views for the generator and body components.

• Cooling and lubrication: Radiator and fan-motor removal, water-pump service, coolant replacement, oil-system specifications, and scheduled maintenance for filters and belts.

• Electrical diagnosis: Automatic Voltage Regulator (AVR) troubleshooting, Ground Fault Circuit Interrupter (G.F.C.I.) checks, control-box testing, and starter-motor inspection and repair.

• Technical references: Wiring diagrams, exploded assemblies, diagnostic charts, maintenance intervals, component torque tables, electrical test data, and clearance measurement views.

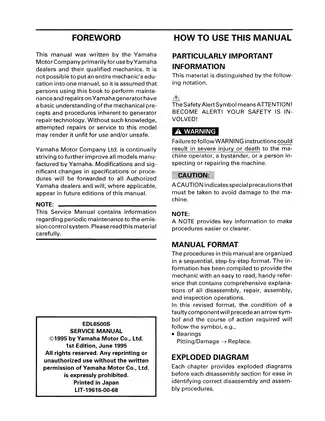

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes an understanding of generator mechanics and repair procedures.

Engine Overhaul and Service Data

Periodic inspection and lubrication charts identify the maintenance items related to emissions control.

Internal engine repair includes valve-seat correction, camshaft alignment, and gear-backlash checks. Piston-ring inspection and crankshaft bearing measurements are supported by wear limits and oversize or undersize component information.

Crankshaft bearing installer YU-1723 and remover YU-1724 are identified for journal-bearing work. Torque tables cover the cylinder head and distinguish the two main-bearing-case bolt types. Separate data covers fluid capacities, oil pressure, and cold valve clearance.

Injection Pump and Q-Set Adaptor

The fuel section ties injection pump replacement to output readjustment and documents Q-set adaptor calibration with its rack, bracket, and dial gauge. High-idle adjustments and tamper-resistance cap removal and installation are covered separately.

The nozzle-holder exploded view and opening-pressure specifications support injection service. The manual cautions against metal cleaning tools that can scratch the precision nozzle piece.

Generator Removal and Cooling System

Generator Assembly and Fan Motor, Radiator exploded views show component relationships and mounting hardware. Cooling-system illustrations trace the water circuit through the pump, radiator, reservoir, and cylinder block.

During rotor and stator removal, the manual warns that scraped windings can cause internal coil short circuits. The drive-belt table distinguishes components for different output frequencies.

No-Output and Shutdown Diagnosis

Electrical test tables cover the 120/240 V, 60 Hz configuration. The AVR chart separately marks the condenser check that applies outside the US model.

No AC output: The AVR Check Operation chart connects main- and sub-coil voltage checks with brush, rotor, stator, receptacle, and NFB diagnosis. It helps distinguish regulation faults from winding or engine-speed problems before selecting a repair.

Control and starting circuits: Continuity tables cover the regulator, safety relay, AC sensor, and emergency relay unit. Starter testing addresses the armature, field coil, commutator, brushes, and insulation; the full Wiring Diagram adds wire-color and connector references.

Coil and glow-plug resistance data accompany oil-pressure and temperature-switch tests.

Engine and emergency shutdowns: Symptom charts address starting, unstable running, low output, abnormal exhaust color, overheating, battery discharge, and failure to stop. Emergency Unit charts connect shutdown and idle-control symptoms with their associated circuits.

Electrical and injection-pressure testing involve live circuits and high-pressure fuel; observe the manual's safety precautions.

PDF Contents and Included Pages

One printable English-language PDF contains 102 pages: one cover, six introductory/index pages, 92 technical-content pages, two blank pages, and one page containing only its header and page number. All are included in the total.
