John Deere 540G, 640G, 740G, 548G, 648G and 748G Cable and Grapple Skidder Repair Technical Manual 1995–1998 (P/N TM1600)

1,078 Pages • ZIP Download: 1 Printable PDF (English)

4.6starstarstarstarstar_half(5)
$22.85 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

John Deere Models Covered & Key Technical Specifications

Models: 540G, 640G, 740G, 548G, 648G, 748G

Sub-models / Variants: Cable Skidder, Grapple Skidder, Single Function, Dual Function

Model Years: 1995–1998 (1995, 1996, 1997, 1998)

Serial Numbers: S.N. —565684

Component serial breaks: Grapple rotate motor (548G, 648G, 748G): S.N. —552976 / S.N. 552977—; frame pivot pins (all listed models): S.N. —564207 / S.N. 564208—.


  • Engine displacement: 540G/548G: 5.9 L (6059T, S.N. —558324) or 6.8 L (PowerTech 6068T, S.N. 558325—).

    640G/648G: 6.8 L (6068T, S.N. —558324; PowerTech 6068T, S.N. 558325—).

    740G/748G: 7.6 L (6076T, S.N. —559114) or 8.1 L (PowerTech 6081T, S.N. 559115—).

  • Rated power: 86 kW to 132 kW (115–177 gross/net hp)

  • Electrical system: 12-volt, 65–135 amp alternator

  • Transmission type: 8 forward, 4 reverse direct drive powershift

  • Winch 4000 series line pull: 95 kN–217 kN (21,437–48,767 lb)

  • Hydraulic flow rate: 102–143.8 L/min (27–38 gpm)

  • Drive system: 1200 or 1400 Series TeamMate II front and rear axles

  • Tire compatibility: 23.1–26, 28L–26, 24.5–32, 30.5–32

John Deere Manual Features & Selected Content Preview

John Deere Repair Technical Manual (P/N TM1600), dated August 3, 1998, covers the 540G, 640G and 740G cable skidders and 548G, 648G and 748G grapple skidders, S.N. 565684 and below.

PDF Search, Bookmarks and Page Layout

Finding text and reading drawings: Main text and specification tables are searchable, with embedded bookmarks for sections, groups and repair topics. Some illustration labels are not searchable. Small wiring and connector labels benefit from zooming; watermarks overlap parts of some drawings.

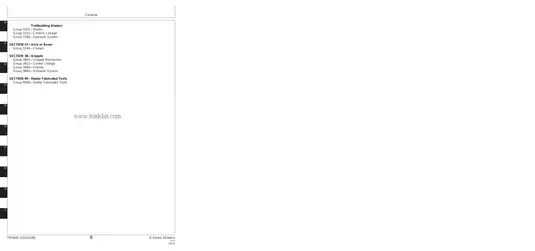

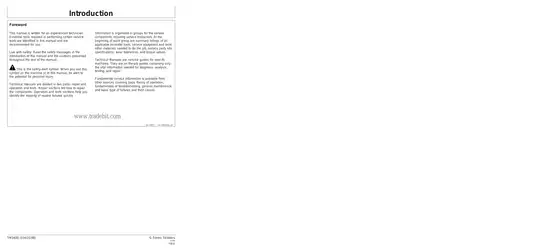

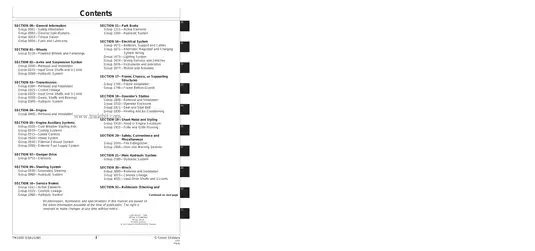

The ZIP download contains one printable English PDF with 1,078 pages: six opening pages covering the original cover, foreword and contents; 1,060 pages across Sections 00–99; and 12 index pages. Section contents and blank divider pages are included in those totals.


Powertrain, Hydraulics and Forestry Equipment Repair

These selected repair topics outline part of the manual's coverage. Other subjects include cold-weather starting aids and suspension-seat repair.

  • Transmission: Step-by-step C1/C2 clutch-pack and oil-manifold repair, planetary-pack overhaul, high/low-range clutch-shaft service, and transmission valve, pump and accumulator work.

  • Engine and fuel system: Engine removal and installation, injection-pump removal and timing, nozzle replacement, fuel-system bleeding, and oil-pan, oil-pump and turbocharger procedures.

  • Hydraulics, steering and brakes: Hydraulic-pump inspection and assembly, steering-valve and cylinder repair, service-brake bleeding, and park-brake sensor bleeding.

  • Electrical service: Battery testing, connector repair, alternator and starter removal, instrument circuit specifications, component wiring illustrations and display-module connector pin locations.

  • Winches and blades: 4000/6000 Series winch removal and installation, cable and driveline work, free-spool adjustment, and stacking-blade repair.

  • Grapple equipment: Single- and dual-function grapple, arch and boom service, including rotate motors, tong cylinders, control valves and the rotary manifold.

  • Chassis and operator station: Axle and drive-shaft removal, oscillating-support repair, frame-pivot work, cab/canopy removal, and R134a recovery, evacuation, charging and leak testing.

Written for an experienced technician, this manual assumes normal heavy-equipment shop skills, appropriate lifting equipment and access to the specified service tools.

Engine Builds and Fuel-System Boundaries

Engine-removal, fuel, cooling, exhaust, alternator and A/C procedures distinguish the earlier 6059T, 6068T and 6076T installations from PowerTech 6068T and 6081T builds. The serial-specific instructions help technicians match the procedure to the installed hardware before disassembly.

Water-pump, thermostat, radiator, fuel-tank and engine-oil-cooler procedures extend the machine-side coverage. Internal engine overhaul requires CTM8, CTM42, CTM104 or CTM86, depending on engine build. Internal injection-pump work and calibration are assigned to authorized specialists; nozzle bench testing and overhaul also require separate component information.

Transmission, Axles and Workshop Tooling

Exploded views of the C1/C2 clutch pack and oil manifold, plus the planetary transmission cross section, show internal component relationships. Group specifications supply torque values, wear limits, pressure and air-test data, capacities, approved fluids and adjustment information.

Tool callouts identify JT07158 Time Trac for injection-pump timing and JDG185 Air Test Plug for transmission clutch and brake packs.

Section 99 supplies dimensioned drawings for DFT1099 bushing drivers, the DFT1104 transmission floor stand, DFT1105 gear alignment tool and DFRW20 compressor holding fixture, supporting workshop fabrication of the specified tools.

Complete 1200/1400 Series TeamMate II axle overhaul requires CTM43. The machine manual covers axle removal, installation, drive shafts and oscillating supports.

Hydraulic Pump, Grapple and Frame Variations

The main-pump section requires the leakage test in TM1599 before removal and calls for replacement if the pump fails that test. Steering-valve and hydraulic-pump cross sections, together with boom, arch, blade and grapple-cylinder sectional views, support component identification during repair.

Separate rotate-motor procedures apply through S.N. 552976 and from S.N. 552977; revised frame-pivot procedures begin at S.N. 564208. These later-build instructions remain within the manual's overall serial-number limit.

The hydraulic-pump instructions warn that starting an unfilled pump can damage it. Grapple-damper cautions address friction-element damage from incorrect worn-plate placement and outer-housing damage caused by adding washers inside the adjusting plugs.

Electrical, Cab and Companion-Manual Scope

Electrical coverage includes connection illustrations and circuit specifications, rather than a full-machine wiring-diagram section. Starting-motor and alternator overhaul require CTM77; complete 4000 and 6000 Series winch repair requires CTM25 and CTM41, respectively.

TM1599 Operation and Test supplies broader machine diagnosis and system tests. These companion publications are referenced, not included in the download.

Cab and body procedures also cover the hood and bottom guards. The A/C section extends to compressor clutch, bearing and shaft-seal work. Follow the manual's safety requirements for supported attachments, stored hydraulic pressure, frame locking and lifting heavy assemblies.

Selected Bushing and Gauge Sender Specifications

The high/low-range clutch-shaft section specifies a bushing installation depth of 10 mm (0.40 in.) below the end of the high-range shaft bore.

The instrument specifications give coolant-temperature gauge sender resistance as 93 ohms at 71.1°C (160°F) and 33.5 ohms at 102.8°C (217°F), providing temperature-specific reference points for gauge-circuit checks.
