John Deere 400 Hydrostatic Tractor Service Manual 1975–1982 (P/N SM-2103)

This John Deere 400 Hydrostatic Tractor service manual covers 1975–1982 tractors with the Kohler K532QS engine. John Deere publication P/N SM-2103, dated March 1982, provides service, maintenance, troubleshooting, and repair information.

Searchable Text, Bookmarks and Diagram Detail

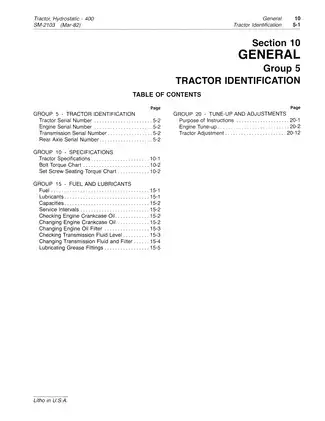

Search and drawing detail: OCR text search is available across the technical sections, although recognition errors can affect individual terms. Embedded bookmarks cover the main sections and groups. Small wire-color labels and electrical test-point numbers are best read with zoom.

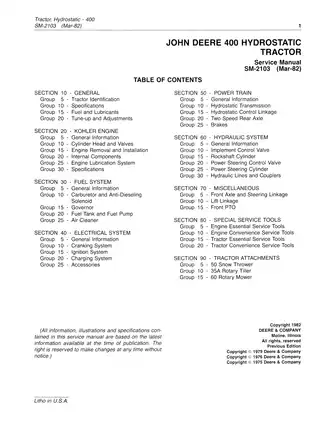

The download contains one printable, English-language 396-page PDF, including the cover, 18 blank or header-only pages, and one memoranda page.

Kohler Engine, Hydrostatic Drive and Hydraulic Service

These selected service topics outline the main repair areas. Additional subjects include battery load testing and lift-linkage depth-control adjustment.

• Kohler engine repair: Step-by-step procedures for engine removal, internal disassembly, valve-seat reconditioning, bearing replacement, piston installation, and engine reassembly.

• Fuel system: Carburetor inspection and repair, float adjustment, electric fuel-pump testing, anti-dieseling solenoid checks, and governor timing and sensitivity adjustment.

• Electrical diagnosis: Serial-specific wiring diagrams and numbered tests for cranking, ignition, charging, accessories, and neutral-start and seat safety switches.

• Hydrostatic transmission: Charge-pressure testing, pump and motor disassembly, internal inspection, reassembly, and control-linkage neutral adjustment.

• Rear axle and chassis: Two-speed rear axle overhaul, differential inspection, bearing and seal replacement, drum-brake service, steering-gear repair, and front PTO adjustment.

• Hydraulics and attachments: Implement and power steering control-valve service, cylinder leakage tests and replacement, plus snow thrower, tiller, and mower repairs.

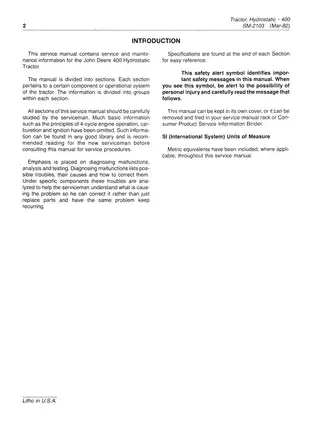

The manual is written for service personnel and assumes basic knowledge of four-cycle engines, carburetion, and ignition rather than teaching those fundamentals.

Engine Inspection and Lubrication Diagnosis

The Cutaway View of Kohler K532QS Engine and exploded mechanical views support the internal repair procedures. Wear-analysis illustrations distinguish piston, ring, crankshaft, and bearing damage, with inspection limits for assessing component condition.

Lubrication coverage connects oil-pressure faults with the relief valve, pump, sleeve bearings, and internal oil galleries. The oil-pump drive has a separate backlash check; incorrect clearance can cause abnormal gear wear and premature pump failure. Special-tool references include the JDM-66 Engine Tool Set.

Carburetor, Governor and Idle Problems

The fuel-system troubleshooting guide separates restricted fuel delivery from lean- and rich-mixture faults. Governor service includes gear timing and load-related sensitivity checks.

For an engine that runs properly at full throttle but stops at idle, the troubleshooting note identifies a faulty or disconnected anti-dieseling solenoid as a possible cause.

Electrical Fault Tracing

Cranking System Wiring Diagrams and Charging System Wiring Diagrams pair numbered test points with fault-isolation procedures. Separate circuit versions account for the later seat safety-start switch, helping the technician select the appropriate checks.

Component-level coverage extends to starter armature testing, brush replacement, condenser tests, and ignition-coil evaluation.

Hydrostatic Drive and Rear Axle Repair

The Hydrostatic Oil Flow Diagram explains the relationship between the charge pump, piston pump, and piston motor. Troubleshooting guides help distinguish linkage faults and low charge pressure from internal wear before repair work is selected.

The manual warns that cold-weather charge-pump cavitation can damage the piston-motor slippers and slipper retainer. Matched pistons and cylinder blocks are serviced as assemblies.

The Section View of Two-Speed Rear Axle supports differential and gear-train service. Bearing-driver references include the JDM-67 Two-Speed Rear Axle Tool Set; general bolt-torque and set-screw seating charts supplement component-specific specifications.

Hydraulic Valves and Cylinder Replacement

Schematic Drawings of the Hydraulic System show implement and steering flow in different operating states. Valve service includes seals, lift check valves, and serial-specific spool arrangements.

Cylinder service limit: The rockshaft and power steering cylinders are welded assemblies. Their sections cover leakage testing, removal, and replacement rather than internal overhaul. From serial 95,001, a damaged implement-valve float-spool spring requires replacement of the complete valve assembly.

Hydraulic service requires pressure relief, and removed tractor assemblies need secure support.

Snow Thrower, Tiller and Mower Work

Attachment coverage includes the 50 Snow Thrower, 35A Rotary Tiller, and 60 Rotary Mower. Procedures address gear-case disassembly and reassembly, bearing preload, and lubrication. Attachment-specific work includes snow thrower rotor and chute-cable service, tiller drive-chain and tine replacement, and mower belt, blade, and spindle service.

A Preview of Compression and Oil-Pressure Specifications

For the K532QS, the warm-engine compression test identifies 110–120 psi as good compression. Readings of 90–110 psi indicate wear while the engine remains serviceable.

Oil-pressure testing specifies 40–50 psi at 1700–1900 rpm idle, with the engine at operating temperature and the correct-viscosity oil in the crankcase. The lubrication section pairs these readings with relief-valve adjustment and checks for pump, bearing, and oil-gallery faults.
