1973-1990 Johnson 2hp-40hp outboard motor manual
Product Gallery

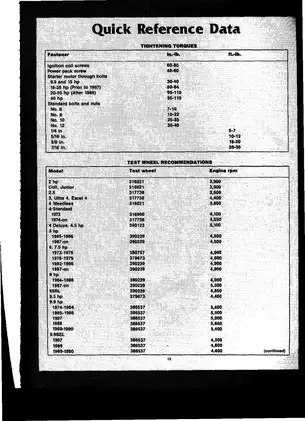

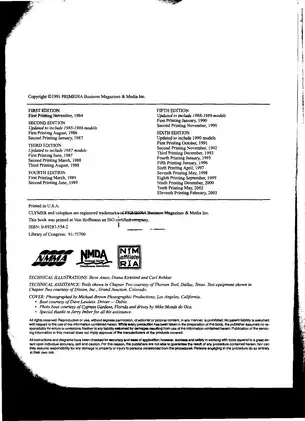

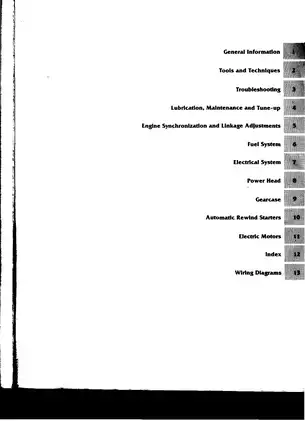

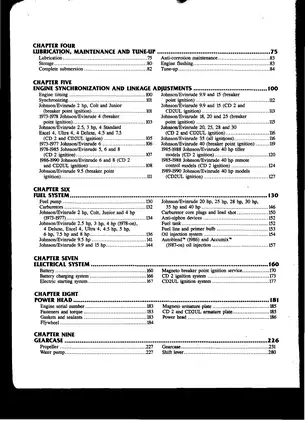

Sample pages from the 1973-1990 Johnson 2hp-40hp outboard motor manual manual





Purchase Information
1973-1990 Johnson 2hp-40hp outboard motor manual - Technical Specifications
- File Size:
- 36.91 MB
- File Type:
- ZIP
- Language:
- English
- Printable:
- Yes
- Estimated Download Time:
- 0.76 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Outboard
- Brand:
- Johnson
Johnson Models and Parts Covered in this Outboard Manual
- Johnson 2 HP (1973-1990)
- Johnson 2.5 HP (1974-1988)
- Johnson 3 HP (1975-1990)
- Johnson 3.5 HP (1976-1987)
- Johnson 4 HP, 4 Excel, 4 Ultra, 4 Deluxe (1977-1990)
- Johnson 4.5 HP (1978-1989)
- Johnson 5 HP (1979-1990)
- Johnson 6 HP (1980-1990)
- Johnson 7 HP (1981-1986)
- Johnson 7.5 HP (1982-1990)
- Johnson 8 HP (1983-1990)
- Johnson 9.5 HP (1984-1989)
- Johnson 9.9 HP (1985-1990)
- Johnson 15 HP (1986-1990)
- Johnson 18 HP (1987-1989)
- Johnson 20 HP (1988-1990)
- Johnson 25 HP (1989-1990)
- Johnson 28 HP (1990)
- Johnson 30 HP (1989-1990)
- Johnson 35 HP (1987-1990)
- Johnson 40 HP (1986-1990)
Engines include:
- 2 HP, 2.5 HP, 3 HP, 3.5 HP, 3 HP, 4 HP
- 4 Excel 4 Ultra 4 Deluxe
- 4.5 HP, 5 HP, 6 HP, 7 HP
- 7.5 HP, 8 HP, 9.5 HP, 9.9 HP, 15 HP, 18 HP
- 20 HP, 25 HP, 28 HP, 30 HP, 35 HP, 40 HP
Production/model years: 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990
Here is a list of Johnson outboard motor models ranging from 2hp to 40hp produced between 1973-1990:
- 2HP - J2R, J2RL, J2RCR
- 3HP - J3R, J3RL, J3RCR
- 4HP - J4R, J4RL, J4RCR
- 4.5HP - J4BR, J4BRL, J4BRCR
- 5HP - J5R, J5RL, J5RCR
- 6HP - J6R, J6RL, J6RCR
- 7.5HP - J7R, J7RL, J7RCR
- 8HP - J8R, J8RL, J8RCR
- 9.5HP - J9R, J9RL, J9RCR
- 9.9HP - J10R, J10RL, J10RCR
- 15HP - J15R, J15RL, J15RCR
- 18HP - J18R, J18RL, J18RCR
- 20HP - J20R, J20RL, J20RCR
- 25HP - J25R, J25RL, J25RCR
- 28HP - J28R, J28RL, J28RCR
- 30HP - J30R, J30RL, J30RCR
- 35HP - J35R, J35RL, J35RCR
- 40HP - J40R, J40RL, J40RCR
Johnson 1973-1990 Johnson 2hp-40hp outboard motor manual - Complete Manual Information
Table of Contents
1. GENERAL INFORMATION
- Introduction
- Model Identification
- Safety Information
2. TOOLS AND TECHNIQUES
- Required Tools
- Special Tools
- Techniques for Repair
3. TROUBLESHOOTING
- Common Issues
- Diagnostic Procedures
4. LUBRICATION, MAINTENANCE AND TUNE-UP
- Lubrication
- Lubrication Points
- Types of Lubricants
- Maintenance
- Routine Maintenance
- Maintenance Schedule
- Tune-Up
- Carburetor Adjustments
- Spark Plug Maintenance
- Timing Adjustments
5. ENGINE SYNCHRONIZATION AND LINKAGE ADJUSTMENTS
- Synchronization Procedures
- Linkage Adjustments
6. FUEL SYSTEM
- Fuel System Components
- Fuel System Maintenance
- Troubleshooting Fuel System
7. ELECTRICAL SYSTEM
- Electrical Components
- Wiring Diagrams
- Electrical System Maintenance
- Troubleshooting Electrical System
8. POWER HEAD
- Power Head Components
- Power Head Maintenance
- Troubleshooting Power Head
9. GEARCASE
- Gearcase Components
- Gearcase Maintenance
- Troubleshooting Gearcase
10. AUTOMATIC REWIND STARTERS
- Starter Components
- Starter Maintenance
- Troubleshooting Starters
11. ELECTRIC MOTORS
- Electric Motor Components
- Electric Motor Maintenance
- Troubleshooting Electric Motors
12. INDEX
- Alphabetical Index
13. WIRING DIAGRAMS
- Wiring Diagrams Overview
- Specific Wiring Diagrams
