Johnson 9.9/15 HP 4-Stroke Outboard Service Manual – 2007 (P/N 5007221)
267 Pages • 1 Printable PDF (English) • Download
Johnson Models Covered & Key Technical Specifications
Models: 9.9 HP, 15 HP
Models & Model Codes:
9.9 HP — J10R4SUB, J10RL4SUB, J10TE4SUB, J10TEL4SUB, J10TBL4SUD, J10EL4SUM, J10BL4SUM
15 HP — J15R4SUB, J15RL4SUB, J15TE4SUB, J15TEL4SUB, J15EL4SUR (Europe Only)
Sub-models / Variants: Rope Start Tiller, Electric Start Tiller, Electric Start Remote, Europe Only
Model Year: 2007
-
Engine type: 4-Stroke SOHC 2-cylinder
-
Displacement: 18.4 cu. in. (302 cm3)
-
Bore: 2.28 in. (58 mm)
-
Stroke: 2.24 in. (57 mm)
-
Compression ratio: 9.0:1
-
Full Throttle Operating Range: 4900–5500 RPM (9.9 HP), 5400–6000 RPM (15 HP)
-
Idle RPM in Gear: 820–920 RPM
-
Gear Ratio: 12:25 (2.08:1)
-
Ignition Timing: 5° ATDC at 1000 RPM
-
Spark Plug: NGK BKR6E @ 0.030 in. (0.76 mm)
-
Battery Recommendation: 12 Volt, 360 CCA (465 MCA), 50 Amp-Hour
Johnson Manual Features & Selected Content Preview
The 2007 Johnson 9.9/15 HP 4-Stroke Service Manual, P/N 5007221, was issued by BRP US Inc. for the listed carbureted SU-series outboards, including rope-start and electric-start tiller or remote-steering configurations.
Searchable Service Text and PDF Bookmarks
Search, navigation, and diagram detail: Service text is searchable, with embedded bookmarks for chapters, subsections, and the index. Small wiring-diagram labels require zooming for comfortable reading.

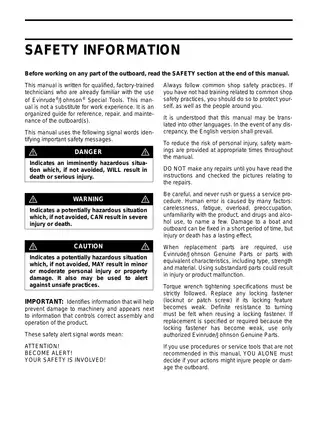

One printable English PDF contains 267 pages, including the front and back covers, one blank preliminary page, a 24-page safety section, and a four-page index.
Powerhead, Fuel, and Lower-Unit Service
The following selected coverage highlights major workshop procedures. Other topics include propeller selection and pre-season service.
-
Powerhead repair: Compression and oil-pressure testing, powerhead removal and installation, cylinder-head teardown, valve service, and cylinder/crankcase/piston disassembly and reassembly.
-
Fuel system: Carburetor operating circuits, overhaul and inspection, starting-enrichment systems, throttle adjustment, accelerator-pump operation, and fuel-pump service.
-
Electrical and ignition: Low-oil-pressure and over-revolution caution systems, charging tests, electric-starter troubleshooting and overhaul, CDI operation, and component-level ignition tests.
-
Midsection and steering: Side-cover removal, driveshaft-housing and oil-pan inspection, stern-bracket repair, and steering-handle removal and installation.
-
Gearcase and water pump: Leak testing, water-pump overhaul, internal gearcase repair, clutch adjustment, gear shimming, and propeller-shaft thrust-play checks.
-
Rigging and starting systems: Transom measurement and drilling, outboard mounting, steering and remote-control setup, control-cable adjustment, manual-starter rebuilding, and neutral-start interlock adjustment.
Written for qualified, factory-trained technicians already familiar with Evinrude/Johnson Special Tools, this manual assumes workshop experience rather than teaching basic mechanical skills.
Powerhead Inspection, Cooling, and Lubrication
Step-by-step procedures extend to valve-guide replacement, valve-seat servicing, crankshaft main-bearing selection, and internal engine reassembly. Component-specific torque tables, wear limits, clearances, and final assembly checks support this work.
Valve-clearance adjustment, timing-belt service, and thermostat testing are also covered. The Cooling System Diagram, Engine Oil Lubrication Chart, and oil-passage views show how water and lubricant reach the serviced components.
The timing-belt section warns that rotating the crankshaft or cam pulley with the belt removed or misaligned can bend the valves.
Model Configurations and Carburetor Differences
The model table distinguishes start type, steering arrangement, and 15- or 20-inch shaft configurations. This publication covers the listed four-stroke engines; it is not the Johnson 9.9/15 HP two-stroke manual.
Only the 15 HP models have an accelerator pump. The detailed fuel-system procedures distinguish the automatic enrichener used on remote models from the manually operated starter enrichment on tiller models, including electric-start tiller versions.
Electrical Fault Tracing and Wiring
The ignition troubleshooting chart helps separate ignition faults from other hard-starting causes, with checks for the stop switch, spark-plug caps, ignition coil, condenser charge coil, pulser coil, and CDI unit.
Rope Start, Tiller Electric, and Remote Electric wiring diagrams distinguish the relevant circuits. Separate wire-routing and fuel/water-hose views show harness placement, clamps, and hose paths; electrical test values accompany the diagnostic procedures.
Maintenance and Gearcase Checks
Scheduled maintenance includes corrosion-protection continuity testing, battery care, engine-oil and filter service, gearcase lubrication, and linkage lubrication. Storage instructions cover fuel treatment and internal engine protection.
Submerged-engine recovery procedures distinguish engines recovered after running, non-running immersion, saltwater exposure, and prolonged submersion.
The gearcase chapter includes shim/washer positions and gear-tooth contact-pattern checks. Its leak-test procedure warns that excessive test pressure can damage the oil seals.
Special Tools for the Documented Work
Powerhead work: Listed tools include Flywheel Holder P/N 5034227 with Flywheel Removal Screws P/N 5034235, Tappet Adjusting Tool P/N 341444, and Valve Spring Compressor P/N 346186.
Testing and component service: Oil-pressure testing uses Adapter P/N 350930 with Gauge P/N 5000902. Other listed equipment includes Prop Shaft Remover P/N 5034237 and Starter Spring Winder/Installer P/N 392093.
Electrical diagnosis uses adapter leads, a six-pin test cord, spark checker, peak-reading voltmeter, and ignition analyzer.
Parts-Catalog Requirement and Service Safety
This is a service publication, not a parts book. It contains illustrated service charts, component views, and repair procedures, but directs technicians to the appropriate separate Parts Catalog for replacement part numbers and catalog exploded views.

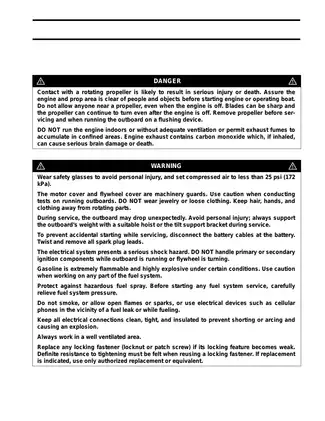

Outboard service can involve a rotating propeller and flywheel, fuel under pressure, ignition shock, and an engine that can drop if it is not properly supported. Follow the manual’s safety section and the warnings attached to each repair or running test.
Valve and Propeller-Shaft Clearance Preview
For both covered power ratings, intake and exhaust valve clearance is 0.007–0.009 in. (0.18–0.22 mm) with the engine cold.
After gear-position adjustment, the specified propeller-shaft thrust-play range is 0.008–0.016 in. (0.2–0.4 mm).
