2005 Harley-Davidson Sportster XLH Models Service Manual

The 2005 Harley-Davidson Sportster XLH Models service manual covers maintenance, diagnostics, and repair procedures for the XL883, XL883L, XL883C, XL1200C, and XL1200R. Includes part number: 99484-05.

4.5starstarstarstarstar_half(2)
visibility Preview Available
Harley-Davidson 2005 Harley-Davidson Sportster XLH Models Service Manual manual page preview - page 1 of 748

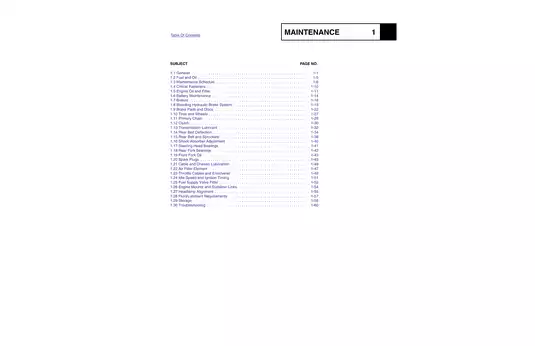

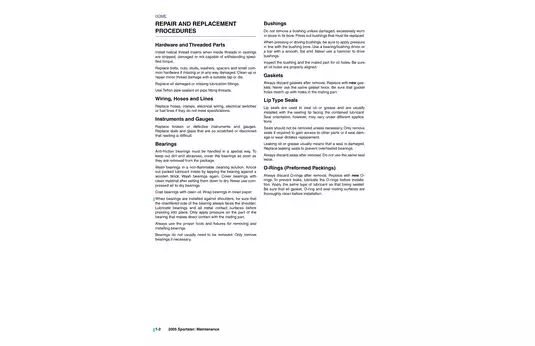

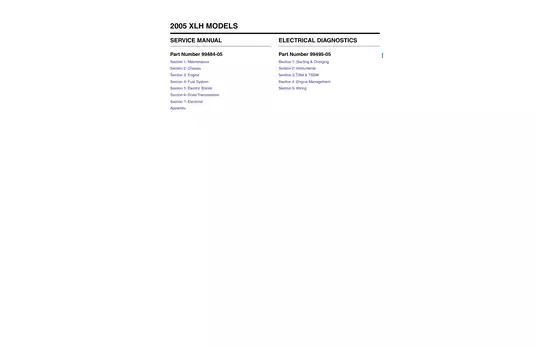

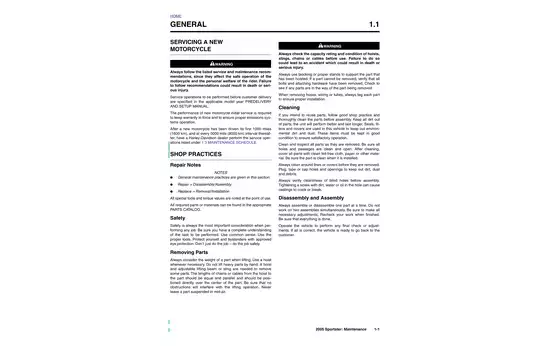

Sample pages from the 2005 Harley-Davidson Sportster XLH Models Service Manual manual

Harley-Davidson 2005 Harley-Davidson Sportster XLH Models Service Manual manual preview page 1 - thumbnail
Harley-Davidson 2005 Harley-Davidson Sportster XLH Models Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.70 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Harley-Davidson Models Covered & Key Technical Specifications

Models: XL883, XL883L, XL883C, XL1200C, XL1200R
Sub-models / Variants: Custom, Roadster
Build Years: 2005
Technical Data:

  • Engine oil capacity: 3.6 qt. (3.4 L)
  • Transmission lubricant capacity: 32 oz. (946 mL)
  • Spark plug gap: 0.038–0.043 in. (0.96–1.09 mm)
  • Tire pressure (Solo): Front 30 psi, Rear 36 psi
  • Tire pressure (Passenger): Front 30 psi, Rear 40 psi
  • Primary chain tension (Hot): 1/4–3/8 in. (6.35–9.53 mm)
  • Primary chain tension (Cold): 3/8–1/2 in. (9.53–12.70 mm)
  • Clutch lever free play: 1/16–1/8 in. (1.6–3.2 mm)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29413 / Linda Cooper
File Size:
30.63 MB
File Type:
PDF
Language:
English
Pages:
748
Printable:
Yes
Category:
Motorcycle
Last updated / verified
May 4, 2025

Harley-Davidson Manual Features & Content Preview

Inside the 2005 Harley-Davidson XLH Service Manual

  • Covers 2005 Harley-Davidson Sportster XL883, XL883L, XL883C, XL1200C, and XL1200R variants, including Custom and Roadster configurations
  • Official Harley-Davidson publication P/N 99484-05
  • Contains 68 exploded-view diagrams, 14 major system maintenance tables, and 12 detailed troubleshooting charts
  • Delivered as a direct download the moment payment clears
  • Permanent availability in your purchase account — no re-buy required
  • Laid out for standard letter and A4 printing
  • Full-text search finds any part number in seconds
  • This 2005 service manual is the primary reference for the XLH model year, providing the official procedures for maintenance, chassis adjustments, fuel system management, and electrical diagnostics.

Maintenance and Technical Scope

The 2005 Harley-Davidson XLH service manual details scheduled maintenance intervals for all 883 and 1200 Sportster models. This document provides technical coverage for engine oil systems, fuel supply valves, and transmission lubrication service. The text outlines specific inspection points for the primary chain, belt deflection, and tire conditions to ensure proper operation. Furthermore, the publication covers the maintenance of the clutch release mechanism and steering head bearings. Service procedures are supplemented by reference charts for fluid capacities, torque values, and common tool usage.

Specification Highlights

Technical data is provided for critical chassis components and engine management systems. Torque values for critical fasteners are documented throughout, including front and rear axle nuts specified at 50–55 ft-lbs and 72–78 ft-lbs respectively. Fuel system information includes carburetor idle speed settings of 950–1050 RPM. Brake system maintenance, including fluid requirements and disc minimum thickness specifications of 0.04 in., is clearly defined. The what an OEM service publication covers includes details on electrical diagnostic connectors and battery maintenance schedules. An official 748-page Harley-Davidson OEM service manual covering the 2005 Sportster XLH model line, documenting engine, chassis, fuel, and electrical system specifications for the complete 883 and 1200 series build.

Manual FAQ, Purchase & Download Details

Is there a reference to component breakdown diagrams or exploded views for the maintenance sections? keyboard_arrow_down

Service manual includes various diagrams, such as those illustrating the battery and oil tank assembly, to help visualize component locations and orientations.

Can you confirm if the specification tables include technical data like tightening torque ranges for critical fasteners? keyboard_arrow_down

Document contains several quick reference maintenance charts and critical fastener tables that list torque ranges for various components across the motorcycle. These tables are designed to provide the necessary reference data for professional or qualified service work.

Does this document represent the official 2005 Harley-Davidson XLH Service Manual publication? keyboard_arrow_down

Yes, the manual is identified by part number 99484-05 and provides comprehensive service content for the 2005 Sportster model line.
