1988–1991 John Deere 544E, 544E LL, 544E TC, 624E, 644E Loader Repair Manual (P/N TM1414)

This John Deere TM1414 repair manual covers the 1988–1991 544E, 544E LL, 544E TC, 624E, and 644E loaders. Dated May 5, 1999, the publication combines removal and installation instructions with component disassembly, inspection, and assembly procedures.

• Driveline and wheels: Wheel and valve-stem service, axle/differential removal, oscillating supports, U-joints, powershift gear and clutch repair, and torque-converter removal and installation.

• Engine and auxiliary systems: Engine removal, oil-pan work, injection pumps and nozzles, cold-start aids, cooling, speed controls, intake components, external fuel supply, and dampener drive.

• Steering and brakes: Steering valves and cylinders, secondary steering, service-brake hydraulics, accumulators, and parking-brake linkage.

• Loader equipment: Buckets, tool-carrier linkages, boom/bucket cylinders, control valves, hydraulic pumps, and pilot controllers.

• Electrical and operator station: Batteries, alternator/charging connections, lighting, main harnesses, connector repairs, cab, seat, heating, and air conditioning.

• Structure and workshop references: Drawbars, frame bottom guards, chassis weights, dealer-fabricated tools, lubrication charts, torque tables, and O-ring boss fittings.

Written for experienced technicians, this manual suits repair shops and owners with the knowledge and equipment required for heavy loader repair.

Powershift Transmission and Axle Service

Front-axle and differential removal uses a lift table, while transmission removal includes hoist handling. Powershift procedures cover gears, clutch packs, bearing preload, end play, and shim selection.

The Clutch Pack and Housing Cross Section and Transmission Control Linkage illustrations show the associated assemblies. Tooling includes the JDG588 shaft-alignment tool and DF1026 clutch-compression jig, with a separate section of dealer-fabricated tool drawings.

Torque-converter coverage consists of removal and installation; complete internal axle repair is referred to CTM18. The clutch instructions identify needle-bearing cages that distort during removal and must be replaced.

Engine, Injection Pump, and Cooling Work

Engine removal and ancillary service accompany specifications for the 6059T and 6076T engines. Fuel-system instructions distinguish DB2 non-retained-shaft and DB4 retained-shaft injection pumps, with separate 644E pump procedures.

Other subjects include turbochargers, water pumps, radiators, oil coolers, fuel bleeding, and an intake leak-pressure test. Internal engine overhaul is referred to CTM4, CTM6, or CTM8, as applicable; injection-pump calibration and internal repair are referred to a diesel injection service facility.

For the retained-shaft injection pump, the manual warns that allowing outlet fittings to rotate while tightening fuel lines can cause internal damage.

Steering, Brake, and Loader Hydraulics

Steering-valve overhaul, priority and crossover relief valves, brake pumps, and accumulator service are supported by illustrations including Cross Section Of Steering Valve and Cross Section Of Boom Or Bucket Cylinder.

Loader procedures distinguish early and later control valves, pilot controllers, and cylinder assemblies. These serial-number divisions help readers match the repair procedure to the installed component before selecting replacement parts.

Coverage also distinguishes 544E LL/TC bucket-valve arrangements and the 544E TC pin-disconnect system. Machine operation and system troubleshooting are addressed in the separately referenced TM1413 Operation and Test manual.

Component Wiring, Cab Access, and R12 Air Conditioning

Battery testing and component connection drawings support electrical work, including DEUTSCH and WEATHERPACK connector repairs. Wiring Lead Connections and Blower Wiring Harness are component-specific illustrations; internal alternator and starter repair is referred to CTM77.

Cab removal and tilting, seat adjustments, compressor servicing, and expansion-valve and thermostat bench tests are included. Air-conditioning procedures describe the original R12 system.

Machine-dimension drawings and oil-viscosity charts complement the metric/unified-inch torque and fitting references. Work on heavy components and pressurized systems requires the handling and safety precautions stated in the procedures.

A Preview of Clutch and Oil-Pump Clearances

The following figures are a small selection of the repair specifications in this manual. Clutch-pack clearance is 2.2–2.4 mm for the 544E forward, reverse, and fourth-gear packs, compared with 2.6–3.0 mm for the 624E/644E forward and reverse packs.

The transmission oil pump-to-oil supply flange end play is 0.30–0.50 mm. The transmission section relates these checks to clutch identification, plate selection, and pump-flange shimming.

PDF Navigation, Illustrations, and File Contents

Search and navigation: The supplied file has no searchable text or embedded bookmarks. Small inset illustrations can remain unreadable when enlarged, although some have separate, larger versions with clearer labels. Some specification pages contain only headings without the associated tables.

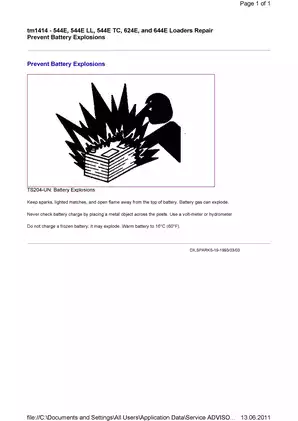

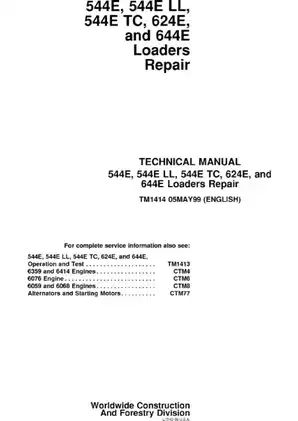

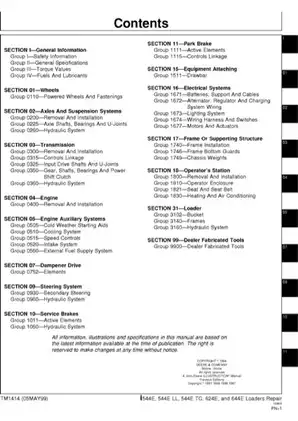

The download contains one printable English-language PDF: 915 pages in total, comprising three opening pages (cover, contents, and foreword) and 912 subsequent manual pages. Referenced companion manuals are not included.
