Ford Focus 2005 Repair Manual Set with Wiring Diagrams

Use the component procedures alongside the matching wiring diagrams and location references when tracing a fault. The Owner's Guide and maintenance guide cover vehicle operation and routine servicing; repair coverage varies by engine, transaxle, equipment and document.

The MT285 material covers identification, fluid service, halfshaft seals, and transaxle removal and installation rather than an internal overhaul. Some diagnostic cross-references require separate general-information articles or TSBs.

PDF Search, Bookmarks and File Contents

Text search and diagram detail: Searchable text is available in the three supplemental engine chapters, iB5 and MTX75 chapters, Owner's Guide, and Scheduled Maintenance Guide. The other 44 PDFs lack searchable text. Only the Owner's Guide has embedded bookmarks (360). Small wiring labels require zooming; embedded illustration labels are not consistently searchable.

The ZIP contains 51 printable PDFs totaling 5,943 pages, including internal title, index, record and additional information pages. The Owner's Guide includes two additional information pages and three end pages containing only page numbers; the maintenance guide includes three separate record-form pages. The 111-page 2005 wiring PDF includes 55 diagram pages, 55 separate caption pages and one section-title page.

Engine, Transaxle and System Repair Coverage

These selected topics preview the included repair and reference material; they are not a complete table of contents.

• Engine repair: Engine removal and installation, internal disassembly, cylinder-head service, valve-clearance checks, and timing-belt or timing-chain procedures for the identified engine variants.

• Transaxle diagnosis: 4F27E fault charts, solenoid tests, hydraulic pressure testing, and overhaul procedures, plus separate iB5, MTX75, and MT285 sections.

• Brakes and chassis: Disc and drum brake service, ABS pinpoint tests, front and rear suspension work, steering components, and front drive halfshaft repair.

• Electrical troubleshooting: System wiring diagrams, connector and splice locations, starting-system tests, and circuit checks for lighting, windows, locks, and wipers.

• Supplemental restraints: Restraints Control Module diagnostics, airbag and pretensioner circuit testing, crash sensors, and Occupant Classification System service information.

• Body and HVAC: Glass and window mechanisms, handles and latches, heater components, air-conditioning components, and body/subframe mounting procedures.

• Owner information: Instrument controls, SecuriLock, remote entry, seating and child restraints, fluid specifications, tire-pressure guidance, and scheduled maintenance.

The repair chapters suit technicians and experienced DIY owners who can interpret electrical tests and use the specified diagnostic equipment; internal transmission and restraint-system work requires the specialist tools described in those sections.

Engine Repair and Timing Systems

Engine coverage separates the 2.0L SPI, 2.0L Zetec-E, and 2.0L Duratec-ST (Zetec) chapters from the 2.0L/2.3L DOHC chapter. The former include timing-belt procedures; the latter documents chain-driven camshafts and the oil-pump drive. Cylinder-head, piston, crankshaft, lubrication, and assembly specifications accompany the repair procedures.

The 2.0L/2.3L section identifies camshaft alignment plate 303-465 and crankshaft timing peg 303-507. Its crankshaft-pulley cautions explain why disturbing the friction-clamped sprocket assembly can alter valve timing and cause severe engine damage.

Cooling and supporting systems: Coolant-loss, overheating and fan-circuit pinpoint tests accompany pressure testing and draining, filling and bleeding instructions. Separate procedures address radiator and coolant-pump service, accessory-drive components, fuel tank and lines, exhaust components, and ignition-coil and spark-plug replacement.

PZEV service: Generator removal distinguishes PZEV and non-PZEV installations; the exhaust chapter includes a separate 2.0L PZEV catalytic-converter procedure.

4F27E and Manual Transaxle Service

The 4F27E material links diagnostic trouble codes and shift complaints to electrical and hydraulic/mechanical tests. That distinction helps narrow a slipping, harsh-shifting, or no-drive complaint before internal parts are replaced. Coverage extends to the torque converter, valve body, clutch assemblies, band adjustment, and shim selection.

The chapter also flags the risk of further transmission damage during stall testing when line pressure is low.

The iB5 and MTX75 sections include step-by-step disassembly and assembly procedures, with separate clutch chapters for the manual transaxles. MTX75 component illustrations carry production-date qualifiers for the input shaft, output shafts and selector mechanism.

Chassis, Electrical Systems and HVAC

Chassis chapters distinguish front disc brakes, rear disc or drum brakes, ABS equipment, and suspension configurations. Front suspension procedures include wheel-bearing replacement and strut/spring disassembly. Halfshaft procedures cover the shafts and their joints; steering coverage separates the column, linkage, and power-steering components.

Wiring examples include Manual A/C Circuit, Passive Anti-theft Circuit, Anti-lock Brakes Circuit, Engine Performance Circuits, and Power Distribution Circuit.

A separate component-location reference identifies relays, control units, sensors, connectors, and splices. These location references support circuit tracing alongside the relevant diagnostic charts. The 2006 diagrams distinguish early/late production and headlamp circuits with or without daytime running lights.

Starting and charging: Starting-system pinpoint tests distinguish relay-click, no-click and slow-cranking complaints. Battery, generator and regulator chapters complement the body-electrical coverage of window and door-lock faults, exterior lighting, speed control, and wiper/washer operation.

HVAC material covers heater-core, blower, compressor, and refrigerant-line removal and installation, with component specifications.

Restraints, Interior Controls and Maintenance

The supplemental-restraint chapter contains RCM fault charts, circuit-specific pinpoint tests, and Occupant Classification System information, including scan-tool rezeroing requirements associated with passenger-seat work.

The Owner's Guide explains the Personal Safety System, dual-stage airbags, crash sensors, belt pretensioners, LATCH anchors, top tether locations, and BeltMinder settings.

Its cabin sections cover instrument-cluster gauges, climate and entertainment controls, steering-wheel adjustment, power windows, manual front-seat adjustments, heated seats, and body-specific rear-seat folding.

SecuriLock passive anti-theft system (PATS) information distinguishes coded-key programming from remote-entry transmitter programming. The spare-key procedure requires two previously programmed keys.

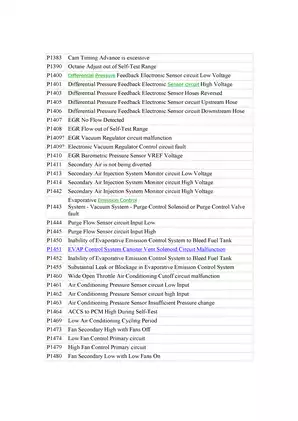

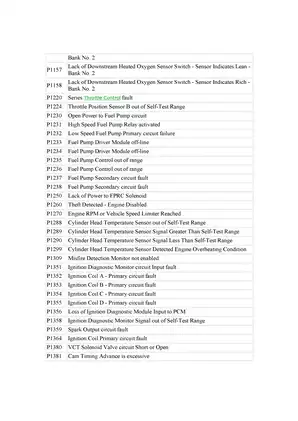

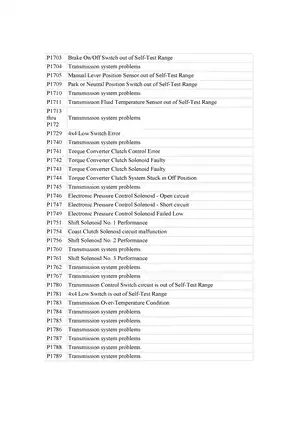

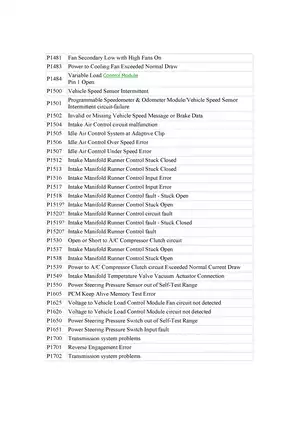

Maintenance references cover coolant selection, fluid capacities and lubricant specifications. Tire-pressure guidance refers to the vehicle's tire label; the separate maintenance guide distinguishes normal service from special operating conditions. The general Ford OBD-II list supplies code definitions rather than system-specific diagnostic tests.

Follow the manuals' precautions for SRS components, refrigerant handling, and supporting the vehicle during repair work.

A Preview of Engine Inspection and Ignition Specifications

For the 2.0L engine, the general specifications list hot oil pressure of 200–268 kPa at 2,000 RPM and piston-to-bore clearance of 0.025–0.045 mm.

The separate ignition chapter specifies a spark-plug gap of 1.25–1.35 mm for the 2.0L and 2.3L engines.
