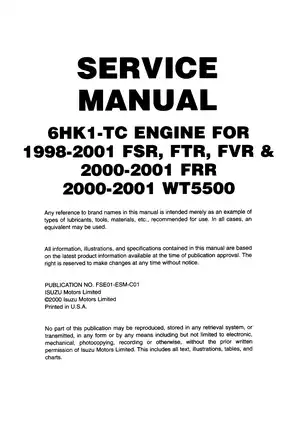

1998–2001 Isuzu Forward Tiltmaster 6HK1-TC Truck Engine Service Manual (P/N FSE01-ESM-C01)

The 1998–2001 Isuzu Forward/Tiltmaster 6HK1-TC Engine Service Manual, publication FSE01-ESM-C01, covers the 7.8L diesel engine in FSR, FTR and FVR trucks, plus the listed 2000–2001 FRR and WT5500 applications.

• Engine repair: On-vehicle service, engine removal and installation, cylinder-head work, lower-crankcase assembly, cylinder-liner inspection, and valve-clearance adjustment.

• Lubrication: Oil-pump disassembly and repair, lubrication-system layout, and crankshaft bearing selection with clearance and wear-limit tables.

• Water pump overhaul: Pump disassembly, shaft and bearing inspection, seal installation, pulley and impeller fits, and special-tool references.

• Diesel fuel injection: Common rail system operation, supply-pump removal and installation, pump timing, fuel-injector replacement, and fuel-system bleeding.

• Electrical and emissions diagnosis: Glow-plug service, diagnostic trouble codes, ECM wiring diagrams, sensor locations, Tech 2 data, and engine symptom charts.

• Turbocharger: Charge-air-cooler service, turbocharger removal and installation, housing disassembly, bearing-clearance checks, and component replacement limits.

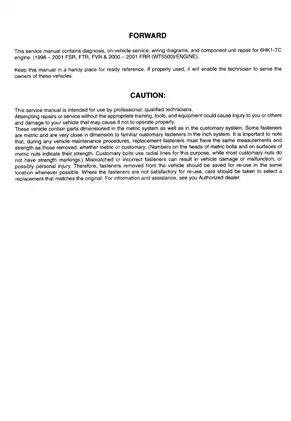

Written for professionally trained service technicians, this manual assumes familiarity with proper tools, lifting equipment and the safety practices required for commercial diesel engine repair.

Engine Overhaul and Parts Selection

Diesel Engine Overhaul follows the cylinder block, crankshaft, pistons, connecting rods, cylinder head and valvetrain through inspection and assembly. The Cylinder Block and Components and Lubrication System illustrations show component relationships and oil flow.

Dry cylinder-liner grades and color-coded bearing selection tables support parts matching during a rebuild. The manual cautions that honing the liners damages their chrome finish and specifies that oversize service pistons are unavailable.

Nozzle-sleeve replacement includes the J43265 remover and J43266 installer; camshaft timing, valve-bridge adjustment, tightening sequences and inspection limits accompany the mechanical procedures.

This is an engine service manual; it does not include complete truck chassis, body or transmission repair coverage.

Common Rail Fuel System and ECM Diagnosis

The Fuel System Schematic connects the supply pump, common rail and injectors. Supply-pump procedures cover removal, installation and timing; internal pump repair is referred to an authorized DENSO dealer, while injectors are replaced as assemblies.

ECM diagnosis includes hard starting, stalling, surging, smoke and low-power symptoms, plus Tech 2 scan data, output controls and cylinder power-balance testing. ECM replacement procedures address fuel-rate data capture and transfer.

The ECM System Wiring Diagram, connector views and pin tables support circuit diagnosis. Separate illustrations distinguish FRR and FSR/FTR/FVR ECM locations and show manual- and automatic-transmission crankshaft-sensor layouts.

With several codes present, the Multiple DTCs Stored Diagnosis Chart directs attention to shared power and ground circuits, helping you distinguish a common electrical fault from individual component failures.

Water Pump and Turbocharger Service

The dedicated cooling repair section covers the water pump, with pump spindle interference, seal-height specifications, and pulley, impeller and bearing illustrations.

The Turbocharger Internal Components view accompanies housing service and shaft-play inspection. The balanced center assembly is a replacement unit, and the manual warns that damage or distortion to its precision parts can cause malfunction.

Heavy-duty commercial engines require precise handling. Use suitable lifting equipment and follow the manual's precautions when handling major engine parts or the high-pressure fuel system.

PDF Navigation and Page Count

PDF text search is not available; chapter and detail bookmarks are present, but the INDEX bookmark points to a separate file that is not included. Small wiring labels require zooming for clear reading. The single English-language PDF contains 368 pages, including five opening pages, four blank section pages, six memo pages and one back cover.
