1998–2001 Isuzu FSR, FTR, FVR 6HK1 Truck Service Manual Set (P/N FSI98-WSM-C01)

Published by Isuzu Motors America, Inc., this factory service manual covers the 1998 Isuzu FSR, FTR, and FVR medium-duty trucks equipped with the 6HK1 engine. The printed manual code is FSI98-WSM-C01, with an information cutoff of December 1, 1997.

The three-volume, 2,094-page PDF set consists of scanned pages with an existing OCR text layer. Some pages remain image-only.

• 6HK1-TC engine repair: On-vehicle service and full engine disassembly, inspection, and assembly, including the cylinder head, valve train, camshaft, timing gears, dry cylinder liners, pistons, connecting rods, and crankshaft.

• Common-rail fuel and controls: DENSO injection pump, rail, and injectors; fuel-system bleeding; ECM troubleshooting, scan data, trouble-code diagnosis, and glow-plug testing.

• Transmission and driveline: Allison AT545, Fuller FS5005A, and Isuzu MLD6Q configurations, clutch repair, MLD6Q internal overhaul, and propeller-shaft diagnosis and replacement.

• Steering, suspension, and axles: Power-steering pump repair, steering-system bleeding, wheel alignment, leaf- and air-suspension service, and single-speed, two-speed, and tandem rear axles.

• Hydraulic and air brakes: Brake service, separate hydraulic-ABS and air-ABS diagnostics, air-compressor overhaul, and leakage and operational tests.

• HVAC and electrical systems: Non-A/C and manual A/C systems, refrigerant recovery and charging, compressor clutch and seal repair, starting and charging systems, and lighting and instrument diagnosis.

• Cab, body, and wiring: Data-link and harness repair, wiring schematics, doors and glass, cab and frame work, collision repair, and seat-belt service.

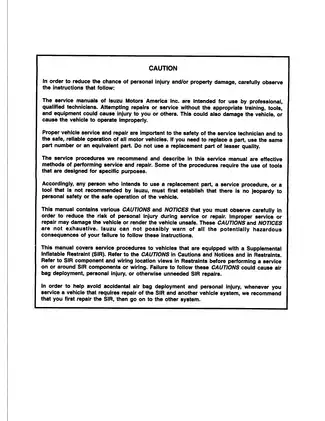

Isuzu intended this manual for professional, qualified technicians; its heavy-component handling, precision measurements, and scan-tool diagnosis suit experienced commercial-truck technicians and fleet service departments.

6HK1 Engine Overhaul and Turbocharger Service

The 7.8L 6HK1-TC is a turbocharged, direct-injection inline six with an air-to-air charge cooler. RPO information distinguishes the 200- and 230-gross-hp factory ratings.

Short-block and cylinder-head overhaul material addresses component cleaning and inspection, crankshaft and bearing checks, piston and liner selection, valve-seat and guide work, injection nozzle-sleeve replacement, timing-gear alignment, and final assembly. Related torque sequences, clearances, wear limits, and service specifications accompany the repair procedures.

Oil-pump repair, water-pump overhaul, valve adjustment, and turbocharger and charge-air-cooler service are included. The turbocharger installation section identifies inadequate prelubrication as a cause of turbocharger damage.

DENSO Common-Rail and ECM Diagnosis

The fuel section explains injection-quantity, timing, pilot-injection, and rail-pressure control. The ECM System Wiring Diagram, input/output charts, connector pin assignments, and typical scan-data values support fault isolation for crank and pump position signals, rail pressure, injector/TWV circuits, pump control valves, accelerator sensors, and boost pressure.

DTC P34 diagnosis addresses Q-adjusted data transfer with Tech 2 when replacing the ECM. Accelerator-sensor adjustment is also documented.

Internal injection-pump service is referred to an authorized DENSO dealer. The manual prohibits opening the pump and injector assemblies.

MLD6Q, AT545, and Propeller-Shaft Repair Scope

The MLD6Q chapter provides internal case, gearshaft, synchronizer, and quadrant-box disassembly and reassembly, inspection measurements, and special-tool references. The Allison chapter covers AT545 vehicle-side diagnosis, adjustments, removal, installation, oil-cooler flushing, and external service.

Internal AT545 overhaul and parts inspection are assigned to separate Allison manuals SA 1241 and SA 1948. No comparable internal overhaul chapter is supplied for the Fuller FS5005A.

One-, two-, and three-piece propeller-shaft procedures cover runout correction, phasing, lubrication, and replacement.

Steering, Rear Axles, and Brake Configurations

Power-steering pump repair distinguishes air-brake and hydraulic-brake applications. Eaton and Dana/Spicer identification information helps match the installed axle to the relevant procedures before parts are selected.

Axle coverage includes noise diagnosis, differential-carrier replacement, shafts, pinion yokes, hubs, bearings, housings, wheel-bearing adjustment, and two-speed controls. Internal Dana/Spicer carrier and Eaton carrier or power-divider overhaul is referred to those component manufacturers.

Brake coverage differentiates Bendix and Dayton-Walther disc hardware, Rockwell and Eaton automatic slack adjusters, hydraulic ABS, air ABS, and air-drum service. Procedures include brake bleeding, valve leakage and operational tests, and post-overhaul air-compressor testing.

Schematics and Factory Tools

Visual references include the BPMV Hydraulic Flow Chart, Air Antilock Brakes System Schematics, Two-Speed Rear Axle Schematic, Vehicle Speed Sensor Schematic, and HVAC Compressor Control Schematics.

MLD6Q internal-component and gearshaft views, component locations, connector end views, harness-routing drawings, diagnostic charts, and exploded assembly illustrations support the service procedures throughout the set.

Diagnostic equipment references include the Tech 2 scan tool, J 36169 fused jumper wire, and J 39200 digital multimeter. Mechanical tool callouts include the J 43264 compression-gauge adapter, J 36660 torque-angle meter, and J 34827 countershaft/mainshaft bearing remover.

Follow the publication's hoist-support, compressed-air, fuel-system, brake, and electrical-isolation cautions when performing this work.

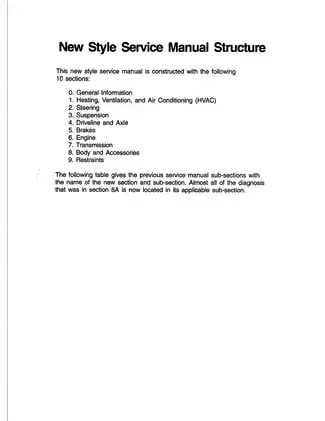

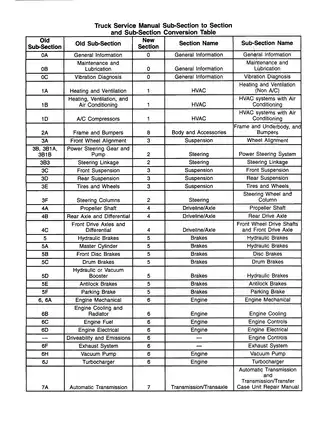

PDF Volumes, Navigation, and Readability

• Volume 1: 816 pages — general information, HVAC, body and accessories, and restraints.
• Volume 2: 802 pages — steering, suspension, driveline and axles, and brakes.
• Volume 3: 476 pages — engine and transmission.

Each volume includes 17 opening pages, a 16-page index section, and one back cover. These pages, along with the blank pages within each volume, are already included in the 2,094-page total. No separate supplements are included.

Text search: The existing OCR layer supports searches across all three volumes, but some service pages and diagrams lack searchable text, and OCR recognition errors occur.

Navigation: All three PDFs have extensive section and procedure bookmarks. Five entries in Volume 1 have no active destination.

Diagram readability: Dense pages such as the ECM System Wiring Diagram need enlargement for comfortable reading of small pin and component labels. Some schematics are printed sideways.
