Isuzu 3LA1, 3LB1, 3LD1 Diesel Engine Workshop Manual (P/N 0981–0525)

This Isuzu workshop manual, identified as IDE-2260, covers maintenance, service, and repair of the 3LA1, 3LB1, and 3LD1 industrial diesel engines. This is the second edition, issued in May 1994.

• Engine overhaul: Cylinder-block and cylinder-head inspection, piston and connecting-rod service, crankshaft and camshaft checks, timing-gear assembly, and flywheel work.

• Fuel injection and governor: Injection-pump removal and installation, shim-based timing adjustment, nozzle-holder service, spray testing, and mechanical-governor assembly procedures.

• Lubricating system: Oil-circulation diagrams, oil-pump inspection, rotor-clearance specifications, and assembly differences for engines with and without PTO.

• Cooling system: Water-pump disassembly and reassembly, bearing and seal installation, thermostat testing, and the cooling-water circulation diagram.

• Troubleshooting: Diagnostic flowcharts for starting problems, unstable running, insufficient output, overheating, abnormal exhaust smoke, low oil pressure, and excessive oil consumption.

• Service reference: Bolt-strength torque tables, angular tightening procedures, component wear limits, compression-pressure testing, and special-tool identification.

The overhaul sections are suited to experienced diesel mechanics with precision measuring tools and access to press equipment; the manual omits some routine removal and installation procedures while explaining more complex work in detail.

Engine Inspection and Reassembly

Section 1 establishes general repair practices and tightening specifications for different bolt strength classes. The engine section then covers disassembly, inspection, repair, and reassembly, supported by exploded views of the cylinder head and internal components.

Component matching: Model-specific cylinder-bore and piston-grade tables help identify the appropriate dimensions before replacement parts are selected. Separate inspection data cover piston rings, connecting-rod bearings, crankshaft journals, camshaft wear, and rocker-arm clearances.

Cylinder-head work: Procedures include hot-plug replacement, valve-seat insert replacement and correction, valve inspection, and valve-stem seal installation. The valve-seat section warns that excessive press force can damage the insert.

The maintenance section also explains that cylinder-head bolts tightened by the angular method do not require retightening before valve-clearance adjustment.

Injection Timing, Governor Work, and Fault Diagnosis

The fuel-circulation diagram and governor structural drawings show how the injection pumps, control link, springs, flyweight, and fuel-cut mechanism relate. Timing instructions identify the available pump shims, while fuel-system maintenance distinguishes automatic and nonautomatic air bleeding.

Repair scope: Pump removal, installation, and timing adjustment are covered, but the troubleshooting section directs defective injection pumps and electrical components to a specialist shop for repair. Governor disassembly requires the ability to perform an engine performance test after reassembly.

The starting-fault charts separate starter problems from compression, fuel-supply, and preheating faults. This helps narrow the investigation before deciding which assembly needs attention.

Compression testing is supported by cylinder-comparison criteria and identified equipment, including compression gauge 5-8840-2008-0 and adapter 5-8840-2009-0.

Oil Circulation and Cooling-System Service

The lubricating-oil circulation diagram traces pressure-fed and nonpressure-fed routes. Oil-pump illustrations distinguish the PTO and non-PTO arrangements, and the inspection tables specify rotor-to-cover, rotor-to-body, and rotor-to-rotor clearances. An engine-oil viscosity chart relates the listed grades to ambient temperature.

Cooling coverage includes the bottom-bypass thermostat circuit, water-pump bearing and seal components, impeller clearance, and thermostat opening and lift checks. The water-pump section cautions that excessive force during removal can deform the sealed cover.

For work with the engine installed, the general repair instructions address battery isolation to reduce short-circuit damage.

Selected Cylinder-Head and End-Play Specifications

Cylinder-head inspection lists a lower-face warpage limit of 0.15 mm and calls for a valve-depression check after resurfacing.

The engine data list standard crankshaft end play of 0.06–0.26 mm, with a 0.3 mm limit. Idler gear end play is specified at 0.058–0.115 mm standard, with a 0.2 mm limit.

PDF Contents and Navigation

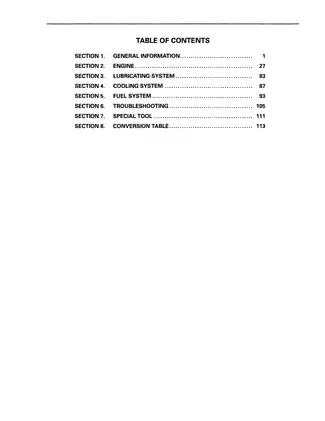

Text search and navigation: The technical content is not text-searchable, and the PDF has no embedded bookmarks. Printed contents pages provide section and page references.

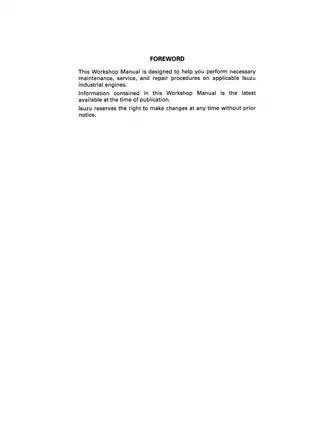

One printable English PDF contains 129 pages, including two cover pages, a foreword, the main contents page, a publication page, eight memo pages, and two blank pages.
