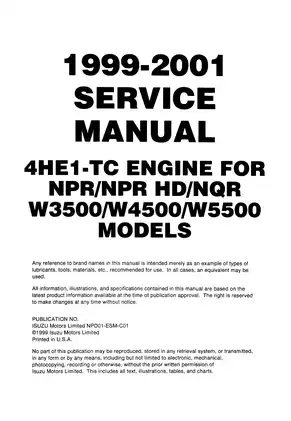

1999–2001 Isuzu CHEVY GMC 4HE1-TC Diesel Engine Service Manual (P/N NPD01-ESM-C01)

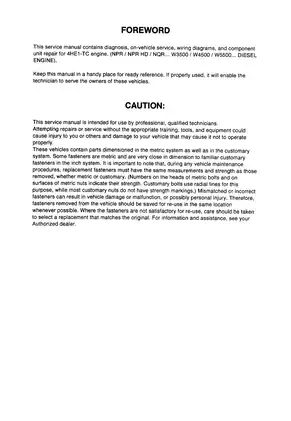

This 354-page factory service manual covers the 1999-2001 Isuzu 4HE1-TC turbocharged diesel engine in NPR, NPR HD, NQR, W3500, W4500, and W5500 Forward/Tiltmaster trucks. The model-data sheet distinguishes 4HE1-TCN and 4HE1-TCS builds and identifies the related manual- and automatic-transmission configurations. Isuzu expressly states that the manual is intended for professional, qualified technicians; its procedures assume suitable training, lifting equipment, measuring tools, and diesel service experience. The PDF lists Publication No. NPD01-ESM-C01 on the copyright page and NPD01-ESM-C02 on the rear cover.

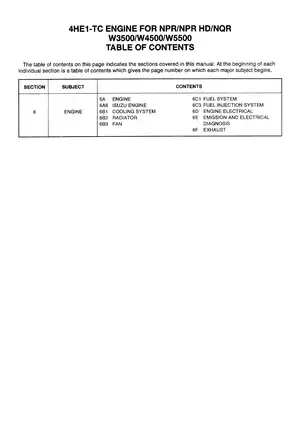

• Covers engine removal and installation, front and rear engine-mount replacement, exhaust-brake diagnosis, and service of the vacuum chamber, magnetic valve, exhaust-brake valve, switches, and linkage.
• Details cylinder-head and valvetrain repair, including head removal, distortion inspection, valve-seat grinding and replacement, valve-guide and stem-seal service, valve lapping, head-gasket grade selection, and angle-tightening references.
• Takes the lower end through piston and connecting-rod replacement, piston/liner grade matching, dry-liner removal and installation, piston-pin bushing service, oil-pump and timing-gear replacement, camshaft service, and crankshaft/main-bearing repair.
• Provides fuel-system diagnosis and repair for the ZEXEL/Bosch inline injection equipment, with injector testing, injection-pump replacement and timing checks, fuel-system bleeding, filter service, and accelerator, hand-throttle, and engine-stop linkage adjustments.
• Includes cooling and accessory-drive work: system pressure testing, draining, filling and flushing, thermostat checks, radiator replacement, water-pump unit repair, fan-clutch diagnosis, belt inspection, and tension adjustment.
• Supports electrical and emissions fault tracing with battery, charging, and starting-system tests; generator and starter disassembly, bench testing, and repair; Tech 2 DTC access; ECM input/output data; sensor and switch locations; and symptom charts for faults that do not set a DTC.

Engine Diagnosis and Rebuild Coverage

The mechanical diagnosis chapter is organized around real complaints: no-crank and no-start conditions, difficult starting, unstable idle, misses at idle or high speed, low power, excessive smoke, overheating, abnormal oil pressure, oil consumption, and engine noise. Compression testing and inspection data lead into component-level repair rather than stopping at routine maintenance.

Factory procedures cover the rebuild decisions that matter on this engine. The manual explains how to choose a head-gasket grade from piston projection, match service pistons to liner grades, check connecting-rod and main-bearing clearance with Plastigage, inspect liner projection, and evaluate valve, guide, seat, crankshaft, camshaft, and oil-pump wear. Specification sections provide component-specific torque tables, mechanical clearances, inspection limits, belt-tension data, thermostat test values, injection and emissions settings, and electrical test specifications.

Fuel, Cooling, and Electronic Controls

Fuel and emissions coverage extends beyond basic delivery checks. The manual describes the MITICS injection system, RLD-M governor, boost compensator, fuel low-cut function, Variable Swirl System, EGR controls, QOS/QWS circuits, FICD, aneroid control, and exhaust-brake/warm-up logic. The diagnostic section includes self-diagnosis code retrieval and clearing, typical scan data, DTC circuit charts, connector inspection, ECM pin functions, and no-code troubleshooting for white or black smoke, high idle, EGR, VSS, aneroid, QWS, FICD, and exhaust-brake faults.

Named visual references include the Lubrication System Schematic, Fuel Injection System, Exhaust Brake and Engine Warm-up Controls, Charging, Starting and Preheating Systems Circuit Diagram, ECM System Wiring Diagram, and Variable Swirl System diagram. Exploded component views identify the cylinder head, piston and connecting rod, crankshaft, radiator, fan clutch, fuel filters, starter, and generator assemblies.

Tools, Repair Cautions, and Scope

Specified service tools include the J-26999-12 compression gauge with J-26999-20 adapter, J-43283 valve-guide remover/installer, J-43286 cylinder-liner remover, J-35691 turbocharger pressure gauge, J-24460-01 cooling-system and radiator-cap tester, J-23600-B belt-tension gauge, J-39200 high-impedance multimeter, and J-23738-A vacuum pump with gauge.

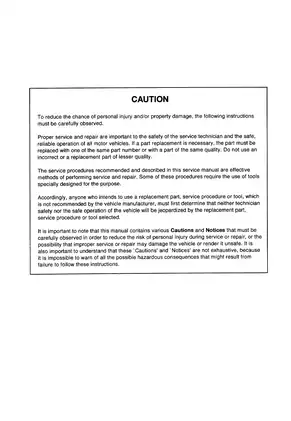

The manual warns against supporting the engine under the oil pan during mount repair because the pan can deflect into the oil-pump screen and damage the pickup. It also warns that heating the cylinder head to remove valve seats can damage the head. Work involving engine lifting, hot coolant, high-current starting circuits, and diesel fuel equipment requires the shop precautions and equipment specified in the manual.

For manual-transmission trucks, the model-data sheet pairs NPR/W3500 with the 4HE1-TCN and MXA5C, NPR HD/W4500 with the TCN or TCS and MXA5C, and NQR/W5500 with the TCS and MBP6P. Its automatic-transmission table covers the model range with TCN/TCS engines and the AISIN 450-43LE; it also identifies Vacuum Assist + ABS versus HBB + ABS chassis groupings. These are application details, not transmission, axle, steering, or brake overhaul coverage. The injection pump and governor are removed as an assembly for specialist service rather than rebuilt internally in this manual.
