1999 Isuzu Rodeo Workshop Manual
Comprehensive service procedures, torque specifications, and electrical schematics for complete 1999 Isuzu Rodeo maintenance and repair. Covers engines, transmission, suspension, and drivetrain systems.
Manual Preview

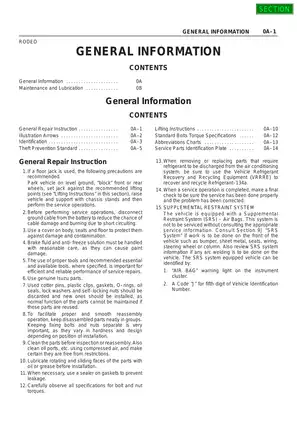

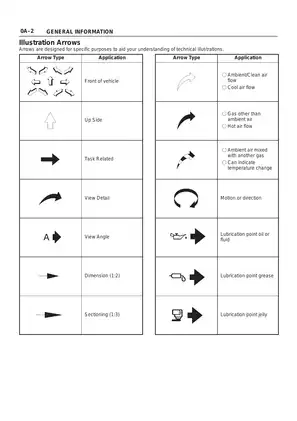

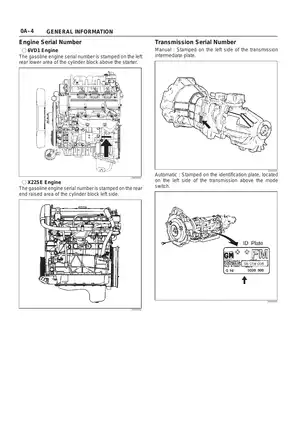

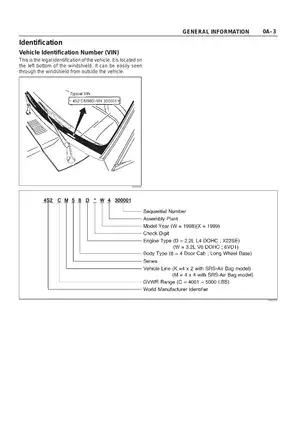

Sample pages from the 1999 Isuzu Rodeo Workshop Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Isuzu Rodeo (UE) — 1999 Professional Reference Manual | Rodeo Series Bundle.
- Approved Processing Speed: 3,700 kcal/hr is established at the heater unit thermal capacity Architecture.
- Measured Mass Specs: The compressor displacement dictates 140 cc (47.3 fl oz) rotary vane capacity Norms.
- Primary Precision Specs: Engine oil capacity corresponds to 4.7 L (5.0 qt) with filter for 6VD1 installation Bounds.
- General Locking Torques: The standard bolt M16×1.5 requires 104–157 N·m (77–116 lb ft) yield Topology.
- Essential Measurement Bounds: Front wheel tire pressure reaches 200 kPa (29 psi) for P215/75R15 standard Matrix.
- Operational Cycle Rate: Maximum engine speed is set to 3,200 rpm for proper driveline operation Standards.
Professional Workshop Service Manual & Technical Specifications
Commercial Specification Manual: SUV Complete Isuzu Rodeo Workshop Manual, 1999 edition Procedure-Library
Series-Validation: Isuzu Rodeo (1999) // Technical-Benchmarks: Comprehensive Service Logic / Driveline and Chassis Systems // Technical-Domain: Multi-section operational documentation with torque references and component specifications.
| Component | Baseline | Calibration-Spec |
|---|---|---|
| Engine Systems | 6VD1, X22SE gasoline engines | Complete mechanical and electrical data documented |
| Transmission | Manual (T5, MUA), Automatic (THM) | Fluid capacity and service intervals included |
| Suspension | Torsion bar front, 5-link coil spring rear | Adjustment procedures and alignment specifications documented |
| Brake Systems | Power-assisted disc and drum configurations | Bleeding procedures and pressure specifications included |
| Climate Control | HVAC with A/C, electronic thermostat | Refrigerant capacity and charging procedures documented |
Outlining the operational framework across heating and ventilation systems, the document provides detailed sections covering engine mechanical assemblies, transmission control mechanisms, steering geometry, and suspension geometry. The manual encompasses power steering unit design, front and rear suspension configurations, wheel and tire system specifications, driveline and axle assemblies, brake hydraulic systems, and body and accessory components. Additionally, restraint system information and control system documentation are included throughout the resource.
Structured Logic-Path
Hydraulic schematics are included for power steering systems and brake circuits, demonstrating fluid pathways and pressure relief mechanisms. The document outlines the methodical component approach for each major vehicle system, providing identification numbers, part locations, and functional descriptions without repair procedures. Diagnostic tables reference potential causes of system malfunctions and corresponding inspection points for technicians.
Operational Standard
Steering component information is provided for power-assisted steering units, transfer gear assemblies, and steering column mechanisms. Reference data is documented for front suspension trim height adjustment, wheel alignment specifications including caster and camber angles, and toe-in measurements. The manual includes wiring diagrams for HVAC controls, air conditioning circuits, and steering system electrical integration.
Strategic Framework
Inspection guidelines are provided for shock absorbers, stabilizer bars, torsion bars, and control arm assemblies throughout the front and rear suspension sections. The document includes bearing preload specifications, bushing replacement procedures with special tool requirements, and ball joint movement inspection criteria. Specifications are documented for wheel and tire systems, covering tire pressure tables, rotation patterns, wear indicator interpretation, and balance procedures.
Structured Interface
Alignment specifications are included for differential assemblies, both front and rear. The manual documents drive pinion depth adjustment procedures, ring gear backlash measurements, and side bearing preload requirements using specialized gauging equipment. Comprehensive tables present pinion marking codes correlated with dial indicator readings for precise gear set positioning.
Integrated Methodology
The document provides torque specifications organized by component throughout all sections. Standard bolt torque values are classified by strength grade and diameter, ensuring proper clamping force and bolt stretch prevention for critical fasteners. Specifications are documented for compressor mounting, brake system fittings, suspension brackets, and driveline connections, with additional detail for magnetic clutch assembly torque requirements and differential case bolt tightening sequences.
