Isuzu KB TF 140 Workshop Manual, 1990–2004

1,610 Pages • Printable PDF • 51.25 MB • Download

4.5starstarstarstarstar_half(4)
$18.48 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Isuzu Models Covered & Key Technical Specifications

Models: KB TF 140 (KB200, KB260, KB250 D, KB280 TD)

Models & Model Codes:

KB200 — 4x2 SWB/LWB: TFR12F/H; 4x2 SWB: TFR12FL

KB260 — 4x2 LWB: TFR17H; 4x2 SWB: TFR17FL; 4x2 LWB/DCAB: TFR17HL/HDL; 4x4 DCAB: TFS17HDL; 4x4 LWB: TFS17H

KB250 D — 4x2 SWB/LWB: TFR54F/H; 4x2 LWB: TFR54HL

KB280 TD — 4x2 LWB: TFR55H; 4x2 SWB: TFR55LL; 4x2 LWB/DCAB: TFR55HL/HDL; 4x4 DCAB: TFS55HDL; 4x4 LWB: TFS55HL

Sub-models / Variants: 4x2, 4x4, LHD, RHD, Diesel (4JA1, 4JB1T), Petrol (4ZC1, 4ZD1, 4ZE1)

Manual Transmission Variants: MSG 5K (4x2); MUA 5C, MUA 5S (4x2 and 4x4, with transfer case on 4x4 models)

Additional Variant-Specific Content: 4JA1T cylinder-head bolt tightening; 4JA1-T RHD timing-belt indicator reset; 4JG2T propeller-shaft center-bearing service; MSG4 4x2 oil-capacity reference

Model Years: 1990–2004 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)


  • Compressor Model: Sanden SD7H13

  • Compressor Cylinder Count: 7

  • Refrigerant Type: R-134a

  • Refrigerant Capacity: 0.75 kg ± 50 grams

  • Compressor Displacement: 129.2 cc/rev

  • Compressor Oil Type: Sanden PAG SP-20 (RL 100S)

  • Clutch Voltage: 12V DC

  • Blower Resistor Resistance (a–b): 2.40 ohms

  • Blower Resistor Resistance (b–d): 0.90 ohms

  • Blower Resistor Resistance (b–e): 0.28 ohms

  • Rear Axle Collapsible-Spacer Changeovers: Axle model part-number prefixes from the stated number and higher: M68 — 171; M70 — 150; M71 — 050; M75 — 250; M76 — 034

Isuzu Manual Features & Selected Content Preview

This Isuzu KB-Series workshop manual covers the mechanical and electrical systems of the 1990–2004 KB TF 140, with separate diesel and gasoline engine sections, 4x2 and 4x4 drivetrain procedures, and LHD/RHD equipment details.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: Text search is limited to the index and section-divider pages; the workshop pages are not text-searchable. Embedded bookmarks provide section access, but some entries have missing or incorrect destinations. Small wiring labels and connector numbers require zooming.

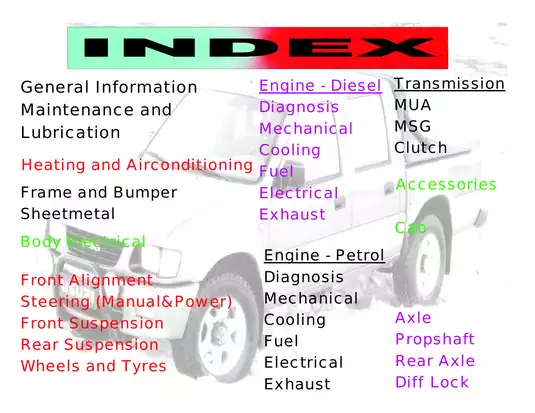

The download is one printable, 1,610-page PDF, including 28 index and section-divider pages and 1,582 workshop pages.


Engine, Drivetrain and Chassis Workshop Coverage

The following selected repair areas outline the manual’s scope rather than reproduce its full contents. Additional topics include exhaust-system service and accessory installation.

  • Engine overhaul: Step-by-step removal, disassembly, inspection and reassembly procedures, including cylinder-head work, bearing selection, diesel timing gears and gasoline timing belts.

  • Fuel and cooling systems: Diesel injection timing, nozzle testing and pump calibration data; gasoline carburetor repair; water-pump service and thermostat testing.

  • Transmission and clutch: MSG and MUA gearbox disassembly, internal inspection and reassembly, plus MUA transfer-case repair and hydraulic clutch service.

  • Axles and four-wheel drive: Differential setup, pinion-bearing preload, axle-shaft and propeller-shaft service, free-wheeling hubs and vacuum-operated differential-lock diagnosis.

  • Brakes and chassis: Disc and drum brake repair, hydraulic bleeding, proportioning-valve adjustment, manual and power steering, suspension service and frame dimensions.

  • Electrical diagnosis: Starting, charging, ignition and diesel preheating tests, with circuit diagrams, harness routing, ground-point references and connector views.

  • Heating and air conditioning: Compressor and clutch service, refrigerant-system testing, heater and evaporator removal, control-cable adjustment and blower troubleshooting.

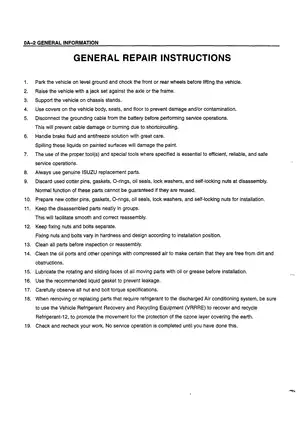

The servicing sections specify qualified service personnel; internal overhaul and diagnostic work also calls for the measuring equipment and special tools identified in the procedures.

Diesel and Gasoline Engine Repair

Diesel engines: The 4JA1 and 4JB1T sections cover dry cylinder liners, piston and connecting-rod inspection, crankshaft bearings, piston protrusion and cylinder-head gasket selection. Component-specific torque tables, fluid capacities, wear limits and illustrated assembly sequences support maintenance and overhaul planning.

The diesel crankshaft is Tufftrided, and the manual specifically rules out regrinding. Turbocharger coverage includes boost, wastegate and shaft-clearance checks; major repairs are referred to Isuzu or IHI service facilities.

Gasoline engines: The mechanical section provides cylinder-head, camshaft, piston and timing-belt procedures, with variant-specific references for the 4ZC1, 4ZD1 and 4ZE1. Fuel-system chapters distinguish Nikki and Hitachi carburetors, including float, choke and metering-system inspection and adjustment.

Diesel fuel-system information includes Bosch VE injection-pump removal and timing, nozzle opening-pressure checks and identification-specific calibration data. These distinctions help match test information to the installed fuel-system components.

Gearbox, Transfer Case and Axle Work

The MSG overhaul chapter addresses the 4x2 transmission. MUA coverage separates 4x2 and 4x4 assemblies, including transfer-case internals, shift mechanisms, synchronizer inspection and oil-seal replacement.

Rear-axle material distinguishes solid-shim and collapsible-spacer pinion arrangements. Overtightening the pinion bearings can cause premature failure, making the spacer-specific preload instructions important when assessing an axle repair.

Front-drive coverage includes Birfield and double-offset joints, plus manual and automatic free-wheeling hubs. The Model 77/82 differential-lock section combines fault charts with electrical and pneumatic control schematics.

Brakes, Steering and Cab Service

Brake procedures cover calipers, rear wheel cylinders, master cylinders and vacuum servos, with separate information for load-sensing and blend proportioning valves where fitted.

Steering coverage extends to gear and pump repair, hydraulic pressure testing and bleeding. Suspension chapters address torsion bars, ball joints and rear leaf springs; frame-dimension drawings and cab procedures cover panel alignment, doors, glass and instrument-panel removal.

Electrical Fault Tracing and A/C Diagnosis

The Charging Circuit Diagram, Ignition Circuit, Main Cable Harness Routing and Connector List support circuit tracing alongside component tests and troubleshooting charts. Ground-point tables and connector locations provide the physical references needed to follow a circuit through the vehicle.

The HVAC section digs into the Sanden SD7H13 compressor, including clutch, lip-seal and valve-plate service. Wiring Harness Terminal Positions link the blower and clutch fault charts to specific connections. Refrigeration-line diagrams, pressure-switch information and fitting torque specifications support system diagnosis; the pressure guide specifies 30–35°C ambient conditions.

Working with automotive A/C involves highly pressurized refrigerant. The manual calls for refrigerant recovery equipment and standard shop safety practices before servicing the system.

Diesel Valve-Clearance and Thermostat Samples

For the 4JA1 and 4JB1T, the engine specifications list a cold valve clearance of 0.4 mm for both intake and exhaust valves, alongside the valve-adjustment procedures.

The diesel thermostat test specifies initial opening at 82°C and full opening at 95°C, with 9.5 mm valve lift at the fully open position. These are component-test specifications rather than normal engine operating-temperature limits.
