Isuzu Models Covered & Key Technical Specifications

Models: NPR, NQR (2000)

Sub-models / Variants: Diesel (automatic transmission circuits and separate manual transmission branches labeled NPR M/T and NQR M/T), Gas (automatic transmission circuits)

Model Year: 2000


  • Primary system coverage: Electrical troubleshooting and diagnostics

  • Documented electrical components: Fuse boxes, relay boxes, connector locations, and ground distribution points

  • Diagnostic aids: Component location indexes, circuit operation descriptions, and harness connector/routing views

  • Electrical diagnostic equipment: Voltmeter, ohmmeter, self-powered test light, and short finder usage guidelines

Isuzu Manual Features & Selected Content Preview

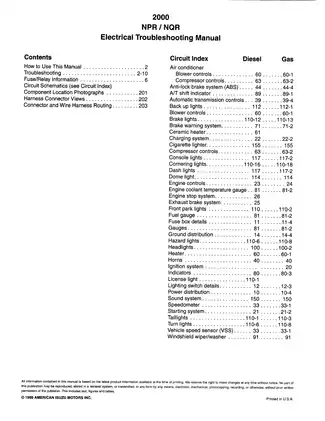

This Electrical Troubleshooting Manual (P/N NSER00-ETM-C01) covers the 2000 Isuzu NPR and NQR, with separate diesel and gas diagrams where the circuits differ. The manual carries a 1999 copyright from American Isuzu Motors Inc.

Search, Bookmarks, and Diagram Detail

Finding circuits and reading labels: Text search works across much of the manual, with gaps on some wiring pages and both covers. Embedded bookmarks open the circuit index, individual systems, and the connector and harness sections. Small pin numbers, connector IDs, and wire color codes are easier to read when zoomed in.

The ZIP contains one printable, 255-page PDF in English. The total includes both covers, two feedback-form pages, and 23 numbered blank pages.


Diesel and Gas Wiring and Fault Tracing

The topics below are a selection from the manual, which also covers the horn, sound system, and cigarette lighter circuits.

  • Power, starting, and charging: Power Distribution, Fuse Box Details, and Ground Distribution schematics trace battery and generator feeds through the starter circuit, relay boxes, and chassis grounds.

  • Engine controls: Engine Controls diagrams distinguish the diesel ECM, glow, and engine-stop circuits from the gas VCM and ignition wiring.

  • Transmission and exhaust brake: Automatic Transmission Controls diagrams show shift and lockup solenoid wiring. Separate diesel exhaust-brake diagrams distinguish automatic and manual transmissions. The manual also traces shift indicator, vehicle speed sensor, and speedometer signals.

  • ABS and brake warnings: Separate Anti-Lock Brake System diagrams cover diesel and gas wiring. Diesel brake-warning diagrams distinguish hydro-booster and vacuum-booster systems.

  • Heating and A/C: Blower and compressor control diagrams show the clutch and relay circuits, with separate coverage for the diesel ceramic heater and condenser fan.

  • Cab and body wiring: Lighting Switch Details accompany the interior and exterior lighting diagrams. Separate circuits cover gauges, warning indicators, and the windshield wiper and washer.

  • Electrical troubleshooting: Step-by-step procedures cover voltage, continuity, voltage drop, and shorts to ground. The diagnostic method also covers checking the repair in every operating mode.

The manual is suited to technicians who read wiring diagrams and use a multimeter to isolate circuit faults.

Shared Feeds, Fuses, and Relays

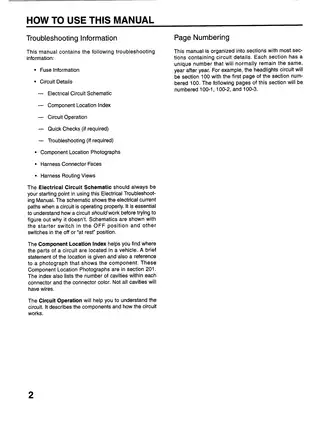

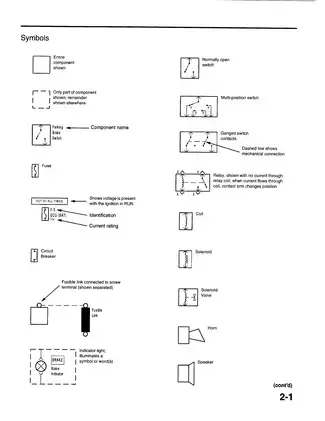

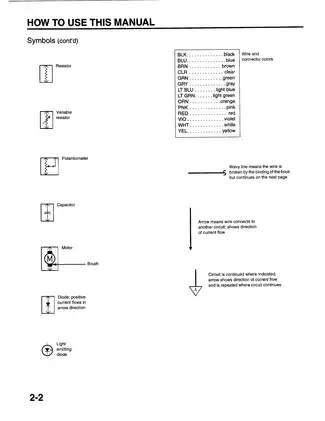

The schematics run from power at the top to ground at the bottom, with switches shown off or at rest. Circuit Operation notes, where provided, explain what should happen when the circuit is energized. Cross-references identify shared feeds, splices, and grounds, so you can check a common supply or ground when several systems fail together.

Fuse tables identify ratings and protected circuits for the glove-box panel, hidden fuse box, and main relay box. Relay listings distinguish diesel glow, ceramic heater, engine warm-cut, and exhaust-brake functions from gas fuel-pump, ignition, A/C-enable, and vacuum-pump functions. The cab relay box diagrams identify the charge, lighting, HVAC, horn, buzzer, power-source, and cornering relays, along with diodes used in the brake-warning, compressor-control, and exhaust-brake circuits.

Transmission and Brake-Warning Differences

The diesel automatic uses a separate transmission control module and dedicated transmission warning indicators. The gas vehicle control module handles automatic transmission control and uses the Check Engine light to signal a detected fault. The diesel backup-light diagram also shows separate reverse-switch branches for the NPR and NQR manual transmissions.

The diesel brake-warning diagrams show how the automatic transmission’s inhibitor switch and the manual transmission’s parking-brake switch affect the buzzer circuit. They also distinguish the hydro-booster pressure and oil-level inputs from the vacuum system’s tank switch and pump circuit.

Connector Identification and Harness Routing

Component Location Index entries identify relays, switches, modules, motors, sensors, connectors, and grounds. They list connector color and cavity count and point to photos around the dash, engine, transmission, frame rails, axle, fuel tank, and rear body.

Section 202 shows connector faces for harness connectors with six or more terminals. Their terminal numbers match the circuit diagrams. Section 203 maps diesel and gas harness routes separately, including branches to the hidden fuse box, data link connector, engine controls, starter switch, exhaust brake, relay box, and ABS hydraulic unit where applicable.

Electrical Test Precautions and Workshop Manual Scope

The test section covers rear-probing and checking both sides of a connector when corrosion or dirt may add resistance. Its three short-to-ground methods cover a test light or voltmeter, a self-powered test light or ohmmeter, and a short finder.

Conventional and self-powered test lights can damage solid-state circuits. A fused jumper is used to bypass an open circuit, and bridging a load can create a direct battery short. The continuity procedures specify when to isolate the battery or circuit feed.

Isuzu directs readers to the separate Workshop Manual for further engine, transmission, and ABS diagnosis. This electrical manual supports circuit tracing, connector identification, power and ground checks, and repair verification. Mechanical disassembly and overhaul require the applicable Workshop Manual.

Voltage and Meter Specifications in the Troubleshooting Section

At a point that should have battery power, the manual flags a reading more than 1 V below measured battery voltage. In the separate voltage-drop test, a drop greater than 0.5 V across a wire, connection, or switch while the circuit is operating can indicate a fault.

For voltage checks on solid-state circuits, Isuzu specifies a digital multimeter with an input impedance of at least 10 MΩ.
