1997 Isuzu NPR/W4/4000 Forward Tiltmaster V8 Gasoline Truck Service Manual (P/N NPG96-WSM-C01)

This 1996–1997 service manual covers NPR/W4/4000 V8 gasoline trucks under the Isuzu, GMC Forward, and Chevrolet Tiltmaster names. Isuzu Motors publication NPG96-WSM-C01 was printed in August 1996.

• Engine repair: Cylinder-head service, piston and crankshaft work, camshaft replacement, hydraulic-lifter testing, and engine removal and installation.

• Automatic transmission: 4L80-E diagnostic trouble-code charts, electrical and hydraulic testing, on-vehicle service, and internal disassembly and rebuilding.

• Brakes: Hydraulic-system diagnosis, master-cylinder and foundation-brake repair, load-sensing proportioning valve adjustment, booster replacement, and parking-brake service.

• Steering and driveline: Front-end alignment, kingpin replacement, power-steering gear repair, differential overhaul, rear-suspension service, and propeller-shaft inspection.

• Electrical systems: Cranking, charging, and ignition diagnosis, plus cab and chassis wiring diagrams, component locations, and connector views.

• Heating and air conditioning: Heater-control troubleshooting, refrigerant-system testing, evaporator service, and DKS-15CH compressor overhaul.

• Maintenance and cab: Service schedules, lubrication charts, frame and body mounts, steering-column service, and steel tilt cab removal and repair.

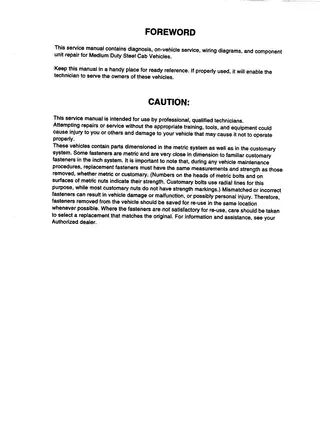

This manual is written for professional, qualified technicians with the training, tools, and equipment required for commercial-truck service.

V8 Repair and Fuel-System Coverage

Mechanical procedures extend to cylinder-bore reconditioning, piston fitting, valve-seat work, and bearing-clearance checks. Specification tables distinguish production dimensions from service limits.

Cooling coverage includes radiator, thermostat, water-pump, and fan-clutch diagnosis, with drive-belt routing diagrams. The water-pump cautions explain how solvent entering its permanently lubricated bearings can cause premature failure.

Fuel-system service covers the tank, lines, filter, and pump testing; exhaust work includes catalytic-converter/muffler replacement. Driveability and emissions: Detailed Central MFI diagnosis and VCM reprogramming require the separate Driveability and Emission Manual, which is not included here.

4L80-E Fault Diagnosis and Unit Repair

VCM scan-tool data, diagnostic flowcharts, the Shift Speed Chart, internal-harness wiring diagram, and Component Resistance Chart support the transmission tests. Together with line-pressure checks, they help distinguish electrical control faults from hydraulic shifting problems before selecting a repair.

Internal work covers clutch packs, the oil pump, planetary components, valve body, and accumulator housing, with end-play and servo-pin checks. The manual also describes the TECH 1 transmission-adapt reset after overhaul or replacement.

Axles, Steering, Brakes, and Cab

Kingpin service includes bushing inspection and fitting; rear-suspension procedures address spring leaves, shackles, and bushings. Differential repair uses pinion-depth and ring-gear tooth-pattern illustrations, while propeller-shaft procedures distinguish one-piece and two-piece assemblies.

Brake booster coverage: Removal, replacement, pushrod setting, and pedal adjustment are documented; internal booster rebuilding is outside this section's scope.

Steering-column shaft replacement, frame-alignment checks, and cab hold-down repairs have dedicated procedures. Component-specific torque tables cover front and rear axle assemblies and steering linkage.

Starting, Charging, and Chassis Wiring

The electrical chapters include SD-300 starter-motor and generator unit repair, distributor inspection, ignition-coil testing, and spark-plug wire checks.

Cab and chassis schematics cover starting and charging, lighting, instruments, and HVAC. Model-year-specific VCM circuit diagrams are supported by connector lists, harness routing, and ground-location references.

DKS-15CH Compressor and HVAC Service

The swash-plate compressor procedures cover the magnetic clutch, shaft seal, and valve plates, with tools identified by number, including shaft-seal guide J-34614. Front-head installation cautions explain how the drive shaft can damage the shaft-seal surface.

The Basic Refrigeration Cycle diagram and manifold-gauge diagnosis support evaporator, expansion-valve, and receiver/drier work. Blower-motor, resistor, and fan-switch checks use connector views and continuity tests.

Working on high-pressure HVAC systems and commercial chassis components requires proper safety gear and adherence to professional workshop standards.

Examples of A/C Clearances and Control Settings

These examples are a small selection of the A/C adjustment and reference data in the manual.

For the DKS-15CH, magnetic-clutch clearance is 0.3–0.6 mm. Total system oil capacity is 180 cc (6.08 fl oz), with separate instructions for adjusting the oil quantity when replacing a compressor.

The receiver/drier dual-pressure switch table specifies low-pressure compressor ON and OFF points of 186 ±30 kPa and 177 ±20 kPa, respectively.

PDF Search, Bookmarks, and Page Count

Search and wiring detail: Text search is partial; some service pages and diagram labels lack searchable text. Bookmarks cover the main sections, but several A/C entries have no working destination. Small labels in dense VCM diagrams require zooming.

The download is a single printable 994-page PDF in English. That total includes two outer covers, five introductory pages, and 40 memo pages.
