1998 Isuzu NPR/NPR HD W-Series V8 Gasoline Engine Service Manual & Maintenance Guide (P/N NPG98-WSM-CS1)

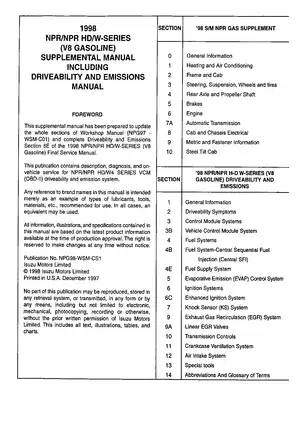

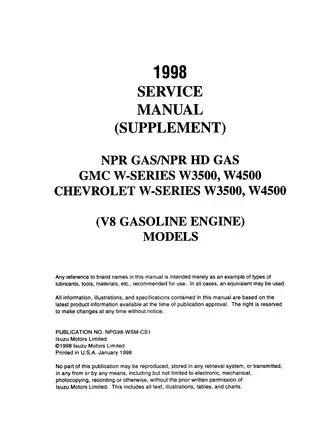

• Official Isuzu Publication No. NPG98-WSM-CS1: an 857-page PDF combining the January 1998 service-manual supplement (PDF pages 1-418) and the 1998 Driveability and Emissions manual, printed December 1997 (PDF pages 419-857).
• Vehicle coverage: 1998 Isuzu NPR Gas and NPR HD Gas, GMC W-Series W3500/W4500, and Chevrolet W-Series W3500/W4500 4x2 steel tilt cab trucks with the 5.7L L31 V8 (VIN R), Central Sequential Fuel Injection, hydraulic brakes, and 4L80-E four-speed automatic transmission.
• Front-running-gear and brake repair content covers front-axle removal and inspection, hub and disc disassembly, wheel-bearing service and adjustment, master-cylinder repair, hydraulic booster replacement, brake-pedal adjustment, front-caliper repair, and disc-pad replacement.
• Air-conditioning, fuel, and exhaust chapters provide magnetic-clutch diagnosis, compressor overhaul, refrigerant recovery and charging, condenser and evaporator service, fuel-pump testing, fuel-tank and line repair, accelerator-linkage adjustment, and catalytic-converter replacement.
• The 4L80-E material supplies scan-tool data, DTC fault charts, electronic component and connector views, range and shift data, line-pressure and resistance specifications, shift-cable replacement/adjustment, and transmission removal and installation.
• OBD-II and chassis-electrical coverage combines driveability symptom charts, VCM diagnostics and programming, Central SFI injector tests, EVAP/EGR/ignition checks, circuit diagrams, connector lists, harness routing, and system-specific troubleshooting charts.

How This Manual Fits the Factory Set

Isuzu identifies this publication as a supplement to the 1997 Medium Duty Truck Service Manual, NPG97-WSM-C01, and states that the two are used together for complete service coverage. This PDF carries the gasoline-specific material; several base procedures - including scheduled maintenance, much of the general chassis service, full engine mechanical and cooling-system repair, and 4L80-E internal unit repair - remain in the 1997 manual. That distinction matters if the job extends beyond the systems and replacement procedures documented here.

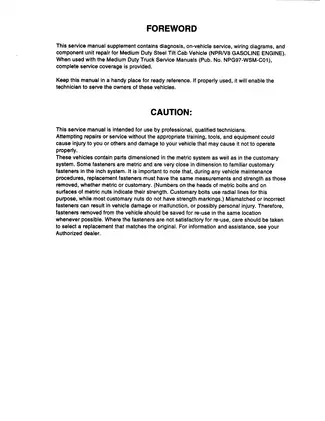

Isuzu expressly intended the manual for professional, qualified technicians. Its diagnostic sections assume working knowledge of electrical circuits and wiring diagrams, along with access to a scan tool, a high-impedance digital multimeter, fuel-pressure equipment, R-134a recovery equipment, and appropriate lifting and brake-service tools.

5.7L VCM and Central SFI Coverage

The driveability volume is specific to the 5.7L VIN R application. It provides an OBD-II system check, live scan-data definitions, VCM connector-terminal identification, symptom diagnosis for hard starting, stalling, misfire, poor fuel economy, lack of power, and spark knock, and individual DTC charts for the sensors and actuators used on this engine. VCM replacement coverage addresses PROM transfer, VIN-dependent calibration selection, EEPROM programming, and post-programming checks.

Central SFI repair sections cover the throttle body, idle-air control valve, upper intake manifold, fuel-meter body, injectors and poppet nozzles, pressure regulator, MAP sensor, fuel tank, in-tank pump, strainer, quick-connect fittings, and feed, return, and vapor lines. Factory tests include fuel-pump circuit diagnosis, fuel-pressure and leak checks, injector coil and balance testing, EVAP purge diagnosis, enhanced-ignition testing, distributor adjustment, linear EGR checks, and crankcase-ventilation inspection.

Cab and chassis electrical material is organized by circuit rather than as a generic wiring overview. It follows start/charging, VCM power, headlights and DRL, marker and stop lamps, horn and backup lamps, wipers and washers, gauges and warning lamps, the automatic-transmission shift indicator, HVAC controls, and the service terminal. Fuse, relay, diode, ground-point, connector, and harness-location references support the accompanying fault-isolation charts.

Drawings, Tools, and Specifications

Named visual references include the A/C circuit diagram, Front Hub, Disc and Related Parts exploded view, 4L80-E electronic component and connector end views, cable-harness routing, VCM wiring diagrams, and Central SFI fuel-meter-body illustrations. Tool tables identify the Tech II/OBD-II interface, J 39200 high-impedance multimeter, J 34730-series fuel-pressure and injector fixtures, J 39021 injector tester, and J-39500-A R-134a recovery/recycling equipment. Component-specific torque tables, fluid capacities, pressure and electrical test data, alignment settings, wear limits, clearances, and adjustment specifications are supplied where applicable.

The manual warns against back-probing the sealed underhood VCM connectors because the terminals and seals can be damaged. It also calls out a Central SFI repair trap: soaking the fuel-meter assembly can distort rubber parts and strip bearing lubricant, while an unlocked poppet nozzle can work loose and leak. Fuel, refrigerant, brake, and heavy-component work requires the safety equipment and support methods specified in the factory procedures.
