Isuzu NPR/NPR HD/NQR & Chevrolet/GMC W3500/W4500/W5500 1999–2001 Chassis Service Manual (P/N NPD01-WSM-C01)

1,100 Pages • ZIP Download: Printable PDF • 98.99 MB

4.5starstarstarstarstar_half(2)
$17.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Chevrolet Models Covered & Key Technical Specifications

Models: NPR, NPR HD, NQR, W3500, W4500, W5500

Sub-models / Variants: Steel Tilt Cab, 4x2 Chassis (model designation: NPR/W4S042)

Model Years: 1999–2001 (1999, 2000, 2001)


  • Engine: 4HE1-TCN, 4HE1-TCS (manual-transmission models: NPR/W3500 — 4HE1-TCN; NPR HD/W4500 — 4HE1-TCN or 4HE1-TCS; NQR/W5500 — 4HE1-TCS)

  • Transmission: MXA5C (Manual: NPR/NPR HD/W3500/W4500), MBP6P (Manual: NQR/W5500), AISIN 450-43LE (Automatic: all listed models)

  • VIN engine identification: 8th character: 5 = 4HE1-TCN; 4 = 4HE1-TCS

  • Cooling system capacity: 14 L (3.7 gal)

  • Manual transmission oil capacity (NPR): 3.2 L (6.8 pints)

  • Manual transmission oil capacity (NQR): 5.3 L (11.2 pints)

  • Automatic transmission fluid capacity: 13.5 L (28.5 pints)

  • Rear axle capacity: 9.7 L (20.5 pints)

  • Wheel nut torque: 440 N·m (325 lb-ft)

  • Leaf spring U-bolt torque (Front): 127 N·m (94 lb-ft)

  • Leaf spring U-bolt torque (Rear): 177 N·m (130 lb-ft)

Chevrolet Manual Features & Selected Content Preview

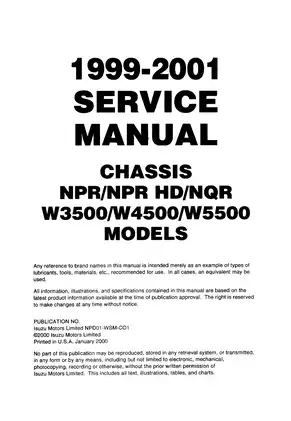

The January 2000 factory chassis service manual, P/N NPD01-WSM-C01, covers 1999–2001 Isuzu NPR/NPR HD/NQR and Chevrolet/GMC W3500/W4500/W5500 Forward/Tiltmaster diesel trucks with 4HE1-TCN or 4HE1-TCS engines. Engine-maintenance references and control circuits are included, but internal engine overhaul is outside this chassis volume.

PDF Navigation and Included Pages

Search, bookmarks and diagram detail: PDF text search is unavailable. Chapter and subsection bookmarks are included, although the “INDEX” bookmark points to a separate PDF outside this download. Small labels in the sampled wiring diagrams are readable with zoom.

The ZIP contains one printable, 1,100-page PDF, including six opening pages, 28 memo pages, and one back-cover page.


Transmission, Brake and Chassis Repair Coverage

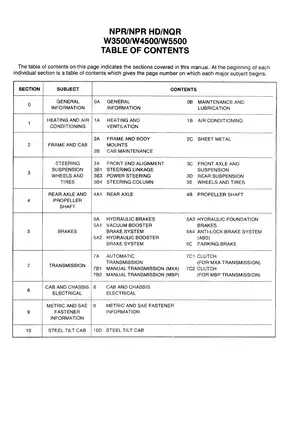

The following coverage highlights are a selection, rather than a full table of contents. Other documented topics include lubrication schedules and stationary-glass replacement.

  • AISIN 450-43LE: Trouble-code diagnosis, line-pressure and stall tests, torque-converter checks, and step-by-step overhaul procedures for the oil pump, valve body, planetary gearsets, clutches, and brakes.
  • Manual transmissions and clutches: MXA-5C and MBP-6P removal, shaft and synchronizer repair, shift-cable adjustment, hydraulic bleeding, and clutch master/slave-cylinder overhaul.
  • Brakes and ABS: Disc, drum, and parking-brake service, load-sensing proportioning valve adjustment, and diagnosis of the electronic brake control module, hydraulic unit, and wheel-speed sensors.
  • Steering and suspension: Pressure tests, steering-gear adjustment, standard and tandem hydraulic-pump repair, alignment, steering-knuckle and wheel-bearing service, and spring, shackle, and bushing replacement.
  • Rear axle and propeller shaft: Differential-carrier overhaul with pinion-depth, backlash, and bearing-preload adjustment; vibration diagnosis, balancing, operating-angle adjustment, universal joints, and center bearings.
  • Heating and A/C: Heater-core, blower, and ventilation-duct service, air-mix and mode-door controls, magnetic-clutch diagnosis, DKS-15CH compressor overhaul, and evaporator, expansion-valve, and receiver-drier replacement.
  • Frame and steel tilt cab: Frame-alignment checks, crack repair, reinforcement guidance, cab mounts, hold-down locks, and cab replacement, plus door locks, window regulators, and instrument-panel procedures.

The manual is intended for professional, qualified technicians with the training, tools, and equipment required for the work.

Drivetrain Variants and Diagnostic References

Manual-transmission coverage separates the NPR/NPR HD five-speed arrangement from the NQR six-speed configuration, with equivalent W-series applications identified in the model-data table. Full-floating rear-axle procedures distinguish the 292 mm and 320 mm differential carriers and their inspection and setup specifications.

The Pinion Depth and Ring Gear Tooth Patterns illustrations support gear-contact assessment during differential setup. Exploded component views accompany unit repair and reassembly, and special-tool references include the J-35467 torque-converter one-way clutch test tool.

ABS Diagnosis and Booster Precautions

Vacuum-assisted brakes for NPR/NPR HD/W3500/W4500 are distinguished from the NQR/W5500 hydraulic-booster arrangement. Tech 2 coverage includes EBCM data, actuator tests, and diagnostic charts that help distinguish electrical-circuit faults from mechanical ABS problems. The J-35616 connector test adapter kit is listed for electrical checks.

The booster instructions warn that mixing power-steering fluid with master-cylinder brake fluid can swell rubber components and damage seals.

A/C Fault Isolation and Supplemental Heating

The HFC-134a Pressure-Temperature Relationship table and manifold-gauge diagnostic charts support refrigerant-system fault isolation. Recovery, recycling, evacuation, and recharging procedures accompany electrical checks for the pressure switch, condenser fan, and thermostat.

Ceramic-heater coverage applies to manual-transmission vehicles only. Its wiring and full-hot-switch checks address supplemental-heating faults. Compressor assembly cautions explain how the drive shaft can damage the cylinder-head shaft-seal surface during installation.

Cab Wiring and Engine-Control Circuits

Connector views, harness routing, ground locations, and symptom-based charts support cab and chassis electrical diagnosis. Quick On Start glow, exhaust-brake/warmup, and EGR/QWS circuits are shown with separate manual- and automatic-transmission diagrams.

The Starting Circuit, TCM Output and Input Diagram, and ABS Circuit relate component functions to their electrical connections. Lighting, wiper/washer, power-window, and power-door-lock troubleshooting extends electrical coverage beyond the drivetrain.

Service Tables and Workshop Precautions

Reference tables cover coolant, transmission-fluid, and axle-oil capacities, wear limits, and electrical test specifications. Fastener data includes intake-manifold hardware, wheel nuts, leaf spring U-bolts, and compressor fittings.

Check chassis weight limits and use appropriately rated supports; follow the manufacturer’s precautions for lifting and pressurized systems.

A Preview of A/C Clutch Adjustment and Test Data

For the DKS-15CH compressor, the clutch-assembly instructions specify a clearance of 0.3–0.6 mm (0.01–0.02 in).

The magnetic-clutch electrical specifications list coil resistance as 3.5 ohms ±5% at 25°C (77°F), providing a temperature-specific reference for electrical testing alongside the mechanical adjustment data.
