Hitachi ZAXIS 200, 225USR, 225US, 230 & 270 Excavator Manual Set, 2001–2006 (P/N W178-E-02)
1,489 Pages • Printable PDF • 80.16 MB • Download
Hitachi Models Covered & Key Technical Specifications
Models: ZAXIS 200, ZAXIS 200-E, ZAXIS 225USR, ZAXIS 225US, ZAXIS 230, ZAXIS 270
Sub-models / Variants: 200 (200LC), 200-E (200ELC), 225USR (225USRLC), 225US (225USLC), 230 (230LC), 270 (270LC, 270LCN)
Model Years: 2001–2006 (2001, 2002, 2003, 2004, 2005, 2006)
Engine variants: ZX200 and ZX225 classes: Isuzu AA-6BG1TRA (AA-6BG1T in machine specifications); ZX230 and ZX270 classes: Isuzu CC-6BG1TRA (CC-6BG1T in machine specifications).
Travel reduction gear: Three-stage planetary reduction for ZX200, ZX225, ZX230 and ZX270 classes.
Arm flow-control configurations: ZX200/ZX225 classes: up to serial No. 104678 / serial No. 104679 and up; ZX230 class: up to serial No. 010326 / serial No. 010327 and up; ZX270 class: up to serial No. 020042 / serial No. 020043 and up.
Right/left pilot-valve versions: ZAXIS200 and 200E: up to serial No. 109561 / serial No. 109562 and up; ZAXIS225USR: up to serial No. 109555 / serial No. 109556 and up; ZAXIS225US: up to serial No. 109545 / serial No. 109546 and up; ZAXIS230: up to serial No. 11230 / serial No. 11231 and up; ZAXIS270: up to serial No. 20335 / serial No. 20336 and up.
Travel pilot-valve versions: ZAXIS200 and 200E: up to serial No. 107148 / serial No. 107149 and up; ZAXIS225USR: up to serial No. 107149 / serial No. 107150 and up; ZAXIS225US: up to serial No. 107197 / serial No. 107198 and up; ZAXIS230: up to serial No. 010770 / serial No. 010771 and up.
Travel-motor versions: ZAXIS225US: up to serial No. 108985 / serial No. 108986 and up; ZAXIS225USR: up to serial No. 108986 / serial No. 108987 and up; ZAXIS230: up to serial No. 11128 / serial No. 11129 and up; ZAXIS270: up to serial No. 20226 / serial No. 20227 and up; ZAXIS270LCN: up to serial No. 82518 / serial No. 82519 and up.
ZX270-class swing relief-valve versions: Up to serial No. 020037 / serial No. 020038 and up.
ZAXIS270 swing parking-brake versions: Up to serial No. 20744 / serial No. 20745 and up.
Boom electronic-cushion coverage: ZAXIS225US up to serial No. 104908; revised pilot-circuit layout for serial No. 104909 and up.
Oil-level and coolant-level indicator circuits: ZX200/ZX225 classes up to serial No. 104679; ZX230 class up to serial No. 010322; ZX270 class up to serial No. 020040.
ZAXIS230 cylinder versions: Bucket cylinder: up to serial No. 884-390 / serial No. 884-391 and up; arm cylinder: up to serial No. 883-430 / serial No. 883-431 and up.
Additional travel-mode coverage: ZAXIS225US for EN, serial No. 10876 and up.
-
Engine cushion mounting fastener torque: Upper pump-side bolts: 360 N·m (265 lbf·ft); lower pump-side bolts: 210 N·m (155 lbf·ft); fan-side nuts: 140 N·m (103 lbf·ft).
-
Hydraulic tank mounting bolt torque: 210 N·m (155 lbf·ft)
-
Cab mounting fastener torque: Mounting nuts: 205 N·m for ZAXIS200, 200-E, 225USR, 230 and 270; 210 N·m for ZAXIS225US. The mounting bolts identified in the cab installation procedures are specified at 50 N·m.
-
Shoe bolt torque: M18 bolts: 560 N·m (410 lbf·ft) for ZAXIS200, 200-E, 200LC, 200ELC, 225US and 225USR; M20 bolts: 840 N·m (622 lbf·ft) for the listed ZAXIS225US, 225USR, 225USRLC, 230 and 230LC configurations; M22 bolts: 1130 N·m (832 lbf·ft) for ZAXIS270 and 270LC.
-
Cab weight: 270–290 kg (600–640 lbs)
-
Replacement interval for hoses: 2 years or 6000 operating hours

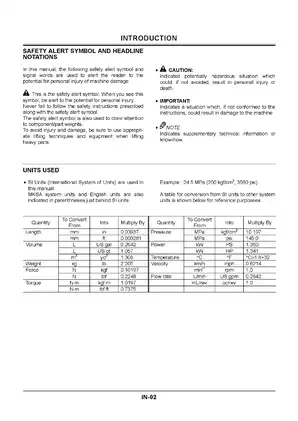

Hitachi Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Workshop Manual — P/N W178-E-02, Manual No. KM-178E. Cover models: ZAXIS 200, 225USR, 225US, 230 and 270, with model-specific 200-E and 270LCN procedures where identified. | 765 |
| Technical Manual (Troubleshooting) — P/N TT178E-03. ZX200 class: 200/200LC, 210H/210LCH, 210/210LC/210N and 240; ZX225 class: 225US/225USLC and 225USR/225USRLC; ZX230 class: 230/230LC, 240H/240LCH and 250/250LC/250LCN; ZX270 class: 270/270LC and 280LC/280LCN. | 416, including 12 appended circuit and harness drawings |
| Technical Manual (Operational Principle) — P/N TO178-E-04, Manual No. KM-178-E. Same class/model coverage as the Troubleshooting volume. | 307 |
The Operational Principle volume explains how the systems work, the Troubleshooting volume provides performance tests and fault isolation, and the Workshop volume supplies component repair procedures and maintenance standards.
The Workshop engine main-data and repair-standard tables apply to AA-6BG1TRA. The Technical volumes also identify CC-6BG1TRA configurations. Injection-pump adjustment and repair are referred to authorized ZEXEL/Bosch service; the included pump calibration sheets are examples.
Routine fuel- and oil-filter change intervals are referred to the separate Instruction Book. The Operator’s Manual and Parts Catalog are additional references, rather than publications included in this set.
PDF Search, Navigation and Drawing Detail
Text access and diagram readability: PDF text search is not available, and there are no embedded PDF bookmarks. Some small component labels, pin references and wire markings on the appended electrical and harness drawings remain difficult to read even when enlarged.
One printable English PDF contains 1,489 pages, including one blank separator outside the three publication totals. The page counts include 5 cover/spine pages, 3 revision-request forms, 24 Memo pages and 79 blank pages, including that separator. The twelve appended drawings belong to the Troubleshooting volume and appear at PDF pp. 1478–1489.
Hydraulic Overhaul, Engine Service and Fault Diagnosis
The following selected content outlines the main repair and diagnostic areas rather than reproducing the full contents. Other topics include air-conditioner self-diagnosis and optional holding-valve operation.
-
Upperstructure repair: Cab and model-specific glass replacement, counterweight and main-frame removal, pump and regulator service, control-valve repair, swing-device overhaul, pilot valves and proportional solenoid valves.
-
Undercarriage and attachment work: Step-by-step removal, disassembly and assembly procedures for travel devices, brake valves, the center joint, track adjusters, idlers, rollers, tracks, front attachment and hydraulic cylinders.
-
6BG1 engine service: Engine teardown and reassembly, cylinder-head and valve work, pistons, liners, crankshaft, timing gears, injection nozzles, lubrication and cooling systems, turbocharger inspection, and starter and alternator testing.
-
Diagnosis and adjustment: Dr.ZX and built-in diagnosis, fault-code and symptom-based troubleshooting, operational performance tests, hydraulic pressure and flow checks, motor-drainage tests, engine learning, and monitor and ICX diagnosis.
-
Drawings and specifications: Engine Control System Layout, Main Pump P-Q Diagram, hydraulic circuit diagrams, electrical circuit diagrams, connector-terminal views, and starter/alternator sectional views, supported by torque tables, wear limits and electrical test data.

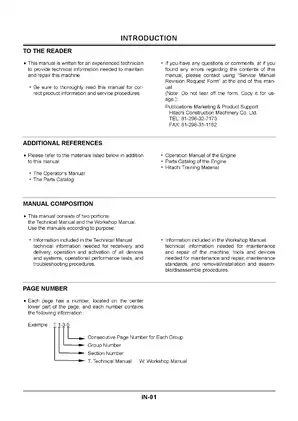

Hitachi states that these manuals are written for an experienced technician. The deeper diagnostic work assumes access to pressure gauges, electrical test equipment, special tools and Dr.ZX; Hitachi identifies the built-in diagnosing system for dealer use only.
Configuration and Serial-Break Coverage
The control-system sections distinguish solenoid-controlled and later pilot-controlled arm flow arrangements. Pilot-valve, travel-motor and swing-brake changes have their own serial breaks, so the applicable component section matters when selecting a test or overhaul procedure.
The ZAXIS270/270LCN travel-motor chapters distinguish earlier bent-axis units from later swash-plate units. Travel brake-valve procedures also separate the relevant configurations. The ZAXIS225US boom electronic-cushion initial-setting procedure applies through serial No. 104908.
Engine Diagnosis and Special Tools
Fault-code troubleshooting addresses detected electrical faults, while the symptom-based charts cover problems that occur without a displayed code. This gives technicians a route from the reported symptom to the relevant circuit checks and hydraulic performance tests.
The engine section provides inspection and repair standards alongside its disassembly and reassembly instructions. Special-tool references include crankshaft gear remover 9-8521-0141-0, piston ring compressor 9-8522-1251-0, and rear oil-seal installer 5-8840-9025-0.
Hydraulic, Seal and Cab-Glass Cautions
The hydraulic-service cautions explain how trapped air can damage pumps, motors or cylinders. Floating-seal instructions address leakage and seal damage from incorrect assembly, while the cab-glass sections specify bonding materials to prevent the applicable glass assemblies from detaching.
Cab-glass dimensions are provided for standard machines produced in March 2002 and later, alongside rubber-mounted and bonded-glass procedures for the relevant cab designs. Safety-related hose replacement tables cover oil-filter, fuel, heater, pump, swing, travel, cylinder and pilot hoses.

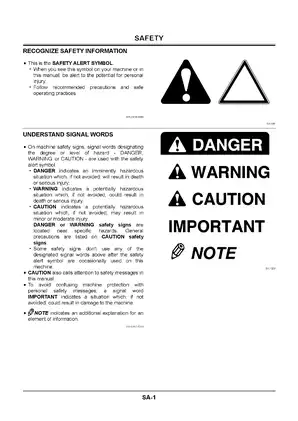

Because this work involves heavy suspended components and stored hydraulic pressure, technicians should follow the manual’s lifting, isolation, pressure-release and test-area requirements before beginning repair work.
Pump Inspection and Wear-Limit Examples
The Workshop volume’s pump-device maintenance standards list gear backlash at 0.68 mm standard, with a 1.5 mm allowable limit.
For the main pump, clearance between the plunger outside diameter and cylinder-block bore is 0.043 mm standard, with a 0.08 mm allowable limit.
