2004 Toyota Corolla E12, E13 Service Manual (P/N RM1037U1, RM1037U2)

• Details the 2004 Toyota Corolla ZZE130 series—U.S. and Canadian CE, LE, and S left-hand-drive sedans with the 1ZZ-FE engine.
• Engine procedures cover removal and installation, cylinder-head and cylinder-block overhaul, valve-clearance adjustment, and timing-chain replacement.
• C59 five-speed manual transaxle service includes synchronizer inspection, input and output shaft rebuilding, and differential bearing-preload adjustment. A245E four-speed automatic procedures address removal, valve-body replacement, and hydraulic testing.
• Chassis repair covers wheel alignment, strut and rear axle-beam replacement, drive-shaft and hub-bearing service, steering-column work, and power-steering rack and vane-pump overhaul.
• Brake procedures include hydraulic bleeding, front-disc and rear-drum repair, ABS with EBD diagnosis, and actuator and wheel-speed sensor checks.
• Troubleshooting spans 10 ECU-controlled systems, using hand-held tester applications, trouble-code charts, symptom tables, and circuit-level inspection procedures.

Toyota's repair documentation is suited to experienced service technicians who understand electrical testing and have access to the specified diagnostic tools and shop equipment.

Engine, Chassis, and Body Repair

The engine chapters pair intake and throttle-body service with injector and fuel-pump testing. Separate sections cover cooling-system inspection, oil-pump repair, exhaust-pipe replacement, and starter and alternator rebuilding. Camshaft timing-gear cautions explain how incorrect pressure release during inspection can break the internal lock pin.

Clutch work includes hydraulic bleeding and master and release cylinder overhaul. HVAC procedures cover manifold-gauge troubleshooting, refrigerant leak checks, air-conditioning-unit removal, and compressor-clutch service.

Body and electrical repair chapters address windshield and back-glass replacement, door adjustment, sliding-roof service, and instrument-panel removal. Wireless door-lock transmitter code registration and TVIP operating-mode checks go beyond component replacement. Supplemental restraint system (SRS) coverage includes airbags, spiral cable, collision inspections, and seat-belt pretensioners.

Diagnostics and Electrical Wiring

SFI troubleshooting includes freeze-frame data, readiness-monitor drive patterns, Mode 06 monitor results, and active tests for fuel-control and EVAP circuits. Automatic-transaxle diagnostics add road, stall-speed, time-lag, and manual-shifting tests.

Alongside the powertrain and ABS sections, diagnostic chapters address SRS, audio electronics, the combination meter, power door locks, wireless door locks, Toyota Vehicle Intrusion Protection, and cruise control.

The wiring reference provides Engine Control, ABS, SRS, and Air Conditioning circuit diagrams, plus the Power Source (Current Flow Chart). Electrical wiring-routing drawings locate connectors, splices, and grounds. Connector views and part numbers support harness repair, with relay and junction-block layouts for circuit tracing.

SST Preparation and Service Specifications

The 59-page Preparation section catalogs SSTs, recommended equipment, and special service materials by system. Examples include valve spring compressor 09202-70020, automatic-transmission oil-pressure gauge set 09992-00095, and power-steering pressure gauge 09640-10010.

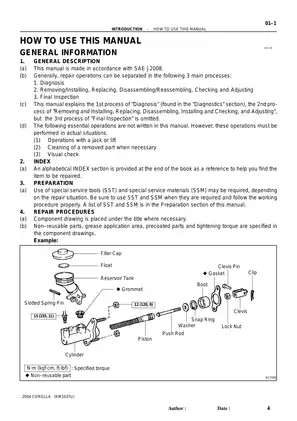

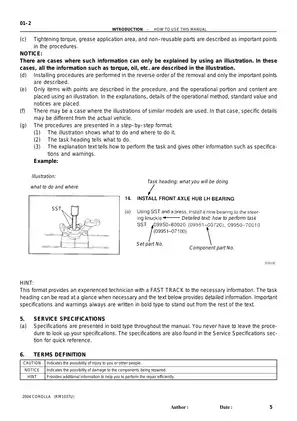

A separate 61-page Service Specifications section provides torque tables, coolant and transaxle-oil capacities, pressure-test specifications, wear limits, clearances, and voltage and resistance test values. Torque settings and non-reusable-part markings are paired with component illustrations to support reassembly.

2004-Specific Changes

The New Car Features excerpt explains the 2004 C59 shift-lever support and third- and fourth-gear synchronizer changes. It also describes the move to SAE-controlled diagnostic codes and the integration relay's map-light control.

Publication and File Coverage

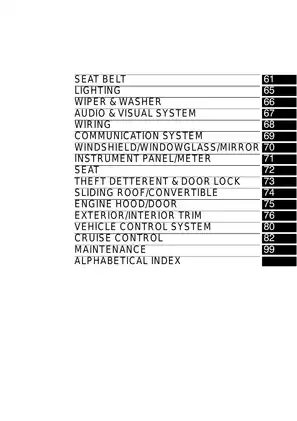

The set contains 2,157 pages across 52 PDF files: 1,896 pages of repair-manual sections, the 252-page Electrical Wiring Diagram, and a nine-page New Car Features excerpt. Preparation, specifications, and diagnostics from Volume 1 are combined with Volume 2 engine, chassis, body, and electrical service procedures in system-based files.

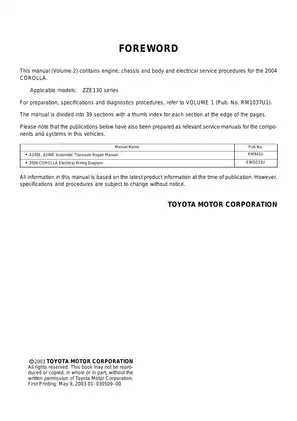

Toyota Motor Corporation publication RM1037U is divided into Volume 1 (RM1037U1) and Volume 2 (RM1037U2). First printing was May 9, 2003, with print code 01-030509-00. The separate wiring publication is EWD533U.

Internal A245E automatic-transaxle overhaul requires a separate manual: Toyota refers to the A245E/A246E Automatic Transaxle Repair Manual, publication RM941U, which is not included in this set.

Always involve a certified automotive technician before tackling advanced diagnostic work, SRS handling, brake repair, or heavy line service on this vehicle.
