Daewoo Nubira 1997–2000 Service & Repair Manual Set
1,263 Pages • ZIP Download: 7 Printable PDFs (English)
Daewoo Models Covered & Key Technical Specifications
Model: Nubira
Sub-models / Variants: CDX
Trade Names: Daewoo Nubira, Hydra-Matic 4T40-E, Hydra-Matic 4T45-E
Model Years: 1997–2000, 2001–2003 (1997, 1998, 1999, 2000, 2001)
VIN Identification: Nubira 2.0L DOHC: 4th character J = Nubira; 8th character Z = 2.0L DOHC MPFI, Family II
-
Engine: 2.0L DOHC, 4-cylinder in-line
-
Engine Displacement: 1998 cm3 (121.92 in3)
-
Compression Ratio: 9.6 ± 0.2:1
-
Firing Order: 1-3-4-2
-
Cylinder Head Height: 133.975–134.025 mm (5.274–5.276 in.)
-
Valve Lash: Hydraulic compensators
-
Transmission Models: Nubira 2.0L DOHC: Hydra-Matic 4T40-E 4-speed automatic (identification code 7ZZR); 5-speed manual (identification code FE)
-
Gear Ratios: 4T40-E automatic, as listed in the separate overhaul article — 1st: 2.960:1, 2nd: 1.626:1, 3rd: 1.000:1, 4th: 0.681:1, Reverse: 2.143:1
Daewoo Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Nubira service sections, wiring diagrams and technical service bulletins — 2.0L DOHC, with notchback, hatchback and wagon body procedures | 1032 |
| 1999–2002 2.0L DOHC Engine — Nubira; page headers identify a 2001 Nubira CDX | 81 |
| 2001–2003 Hydra-Matic 4T40-E & 4T45-E Overhaul — application chart assigns the 2001–2002 Nubira 2.0L to the 4T40-E | 73 |
| Basic Car Repairs — general maintenance and repair guidance | 27 |
| Generic OBD-II Trouble Codes — general code definitions | 33 |
| GM Trouble Codes — manufacturer-specific code definitions with model-dependent meanings | 14 |
| Index for Manual — page guide to the main Nubira file | 3 |
The standalone articles add detailed engine and automatic-transaxle overhaul procedures to the vehicle-system service sections. The general repair guide and code lists provide supplementary reference material.
Coverage limits: The main file contains nonconsecutive service sections. Detailed ABS and automatic-transaxle diagnostic procedures, along with many engine-control DTC flowcharts listed in its contents, are not included. The five-speed manual-transaxle material provides diagnosis and component views rather than a complete overhaul procedure.
PDF Text Search, Diagrams and File Contents
Search and diagram detail: The main Nubira file supports text search through its service text, although some drawing labels are embedded as images. Basic Car Repairs is also searchable; the other five PDFs have no searchable text layer. None has embedded PDF bookmarks. Small wiring labels require zooming, and some engine exploded-view callouts are less distinct.
The ZIP contains seven printable English PDFs totaling 1,263 pages. This total already includes 41 trailing pages containing only repeated headers in the two standalone powertrain articles, plus 16 technical service bulletin pages within the main file.
Engine Overhaul, Vehicle Diagnosis and Chassis Repair
The following is a selected content preview, rather than a complete contents list. Additional topics include cruise-control checks and waterleak diagnosis.
-

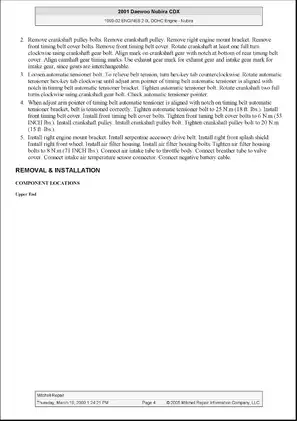

Engine mechanical repair: Step-by-step procedures for timing-belt service, cylinder-head and camshaft work, oil-pump overhaul, piston and connecting-rod service, and engine removal and installation.
-
Engine diagnosis: Compression and oil-pressure checks, no-start and symptom diagnosis, fuel-system testing, scan-tool data tables, and fuel-pump relay circuit checks.
-
Automatic-transaxle overhaul: Teardown and reassembly of clutch packs, bands, planetary carriers, differential, valve body, channel plate, servos, seals and torque converter.
-
Clutch and drive axles: Clutch replacement, hydraulic master and release-cylinder repair, pedal adjustment, bleeding, drive-axle removal, and CV-joint boot procedures.
-
Brake hydraulics: Front and rear caliper overhaul, rotor inspection, master-cylinder repair, proportioning-valve checks, brake bleeding, and parking-brake adjustment.
-
Steering and suspension: Power-steering pressure and leak tests, rack-and-pinion repair, strut and wheel-bearing service, control-arm work, and wheel-alignment checks.
-
Electrical fault tracing: Wiring diagrams, connector and ground locations, fuse information, lighting and accessory diagnosis, immobilizer checks, and remote-keyless-entry programming.
The powertrain overhaul material is suited to experienced technicians and rebuilders with suitable support equipment, an overhaul stand or holding fixture, compressed air, precision measuring tools, and the specified pullers, installers and spring compressors.
Cylinder Head, Timing Drive and Bottom End

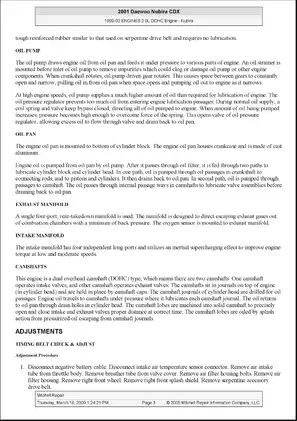

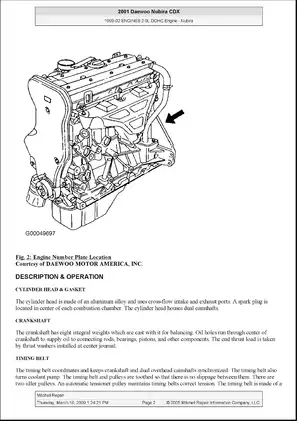

The engine descriptions explain the aluminum cross-flow cylinder head, crankshaft oil passages, belt-driven camshaft and coolant-pump arrangement, oil-pressure regulator, and the long-port intake manifold’s inertial charging effect.
Cylinder-head work extends to flatness inspection, valve and spring checks, valve grinding, guide reaming by service code, seat cutting and stem-seal replacement. Bottom-end procedures address ring fit and orientation, bearing-clearance measurement with gauging plastic, rear-seal installation and final assembly.
Tool references include the KM-470-B angle torque gauge, J-28467-B engine support, KM-498-B/KM-135 oil-pressure test equipment, KM-348/KM-653 valve-spring tools and KM-427 piston-pin service set.
The interchangeable camshaft gears carry different IN and EX timing marks; incorrect indexing can damage the engine. The oil-pump assembly instructions also identify loss of prime as an engine-damage risk.
Automatic-Transaxle Assembly and Inspection
The overhaul article explains the torque converter, variable-capacity vane pump, sprocket-and-drive-link arrangement, clutch and band operation, planetary gearsets and integral differential.
Reassembly detail includes fluid-passage inspection, accumulator and check-ball placement, clutch and sprag air checks, seal sizing, selective thrust-washer and backing-plate selection, axle seals, shaft sleeves and oil-feed tubes. The transaxle oil pump is serviceable only as a complete assembly.
Specified equipment includes the J-23327 clutch spring compressor, J-41229 manual-shaft pin height tool, J-41234 seal guide and sizer, and J-41228 sleeve installer. Driving the manual-shaft pin too deeply can crack the case boss.
The input and reaction internal gears look alike but must retain their original positions after service in a vehicle. The article directs electronic-control diagnosis, lubrication service and on-vehicle service to separate information.
Illustrations for Powertrain Work
The two standalone powertrain articles contain 103 numbered figures: 54 engine figures and 49 transaxle figures. Four dedicated tightening-sequence illustrations cover the cylinder head, intake and exhaust manifolds, and camshaft bearing caps.

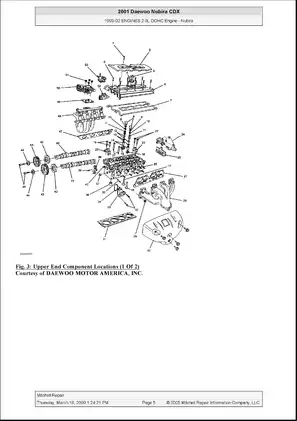

Examples include Timing Belt Routing, Cylinder Head Bolt Tightening Sequence and Valve Contact Pattern. Transaxle illustrations include Exploded View of Transaxle Components, Transaxle Case Fluid Passages and Exploded View of Control Valve Assembly, alongside seal-orientation and air-check views.
Electrical Diagnosis and Service Bulletins
The vehicle sections combine PCM/ECM circuit drawings with connector views, ground and splice locations, and symptom-based checks. Immobilizer material covers no-start diagnosis, key coding and identification-code matching; remote-entry material includes Scan 100 programming procedures.
Fuel-level sensor bulletins explain diagnosis and replacement of the sender separately from the fuel-pump module. They also distinguish sender faults from normal fuel-gauge behavior, helping determine whether sender replacement addresses the complaint.
The generic and GM code lists provide definitions rather than Nubira-specific diagnostic flowcharts. The GM list notes that a code can have different meanings across models or model years.
Body, Climate Control and Running Gear
Body procedures distinguish notchback, hatchback and wagon arrangements for rear closures, locks, trim and glass. Further sections cover power windows, sunroof diagnosis, wipers, seats and seat belts.
Heating and cooling coverage includes blower diagnosis, heater-core service, thermostat checks, cooling-fan replacement and cooling-system diagnosis. A/C material includes performance and leak testing, R-134a pressure-temperature information, and pressure-relationship charts.
Suspension and steering sections extend into rack repair, bearing preload, strut disassembly, control-arm bushings, rear links and toe adjustment. An included wheel-fastener bulletin revises earlier torque entries in the service sections.
Fuel-system work requires pressure relief and ventilation; engine, transaxle and crossmember work requires suitable support equipment.
Selected Rebuild Clearances and Revised Wheel Torque
For the Nubira DOHC engine, the specification tables give a 0.3–0.5 mm end gap for both top and second compression rings, and camshaft end play of 0.040–0.144 mm.
The automatic-transaxle overhaul article specifies final-drive pinion-gear end play of 0.23–0.62 mm as part of internal assembly inspection.
The included wheel-fastener bulletin revises Nubira wheel nut/bolt torque to 120 N·m (88 lb-ft), superseding the earlier service-page specification.
