2005 Doosan 430, 430 Plus, 440 Plus, 450, 450 Plus, 460, 460 Plus, and 470 Plus Skid Steer Loader Service Training Manual (P/N DS SLT 0605 Rev-01)

Doosan service training manual P/N DS SLT 0605 Rev-01 covers the 2005 Doosan 430, 430 Plus, 440 Plus, 450, 450 Plus, 460, 460 Plus, and 470 Plus skid steer loaders. It explains machine operation and system construction, with selected engine adjustment procedures and maintenance reference data.

PDF Search, Diagram Detail, and Page Count

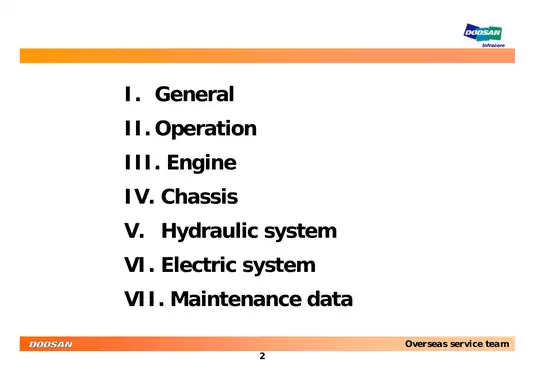

Search and circuit labels: The PDF is partially searchable: slide headings and explanatory text can be searched, while many labels within circuit drawings are embedded in images. There are no embedded PDF bookmarks. Small pin numbers and wiring codes in the checked electrical diagrams require zooming.

One printable English PDF contains 140 pages, including the original cover and contents page, which account for two pages of that total.

Cummins Valve Adjustment, HST Systems, and Electrical Controls

The following selected topics outline the training coverage. Other examples include attachment-control operation and the quick-tach locking arrangement.

• Engine adjustment: Step-by-step valve-adjustment procedures for Cummins A2000/A2300 and B3.3 engines, supported by TDC references and injection-pump timing illustrations.

• Hydrostatic drive: Standard, high-flow, and pilot joystick configurations, with HST pump sections, orbital motor operation, charging circuits, and anti-stall valve explanations.

• Boom and bucket hydraulics: Rod-controlled and pilot-operated valve layouts, boom float operation, auxiliary solenoids, and joystick flow diagrams.

• Electrical systems: Wiring diagrams for starting, charging, preheating, auxiliary controls, and warning circuits, plus sensor specifications and component-location views.

• Chassis and maintenance: Chain-drive and axle layouts, parking-brake operation, pump couplings, fluid specifications, machine-speed tables, and scheduled maintenance.

This material is suited to technicians familiar with hydraulic schematics and electrical circuit tracing, since much of the coverage explains component operation rather than providing guided fault-finding routines.

Engine Adjustment and Coverage Limits

Engine coverage focuses on the A2000, A2300, and B3.3 powerplants. Lubrication, cooling, and fuel-system illustrations identify the pump, filter, regulator, injector, and coolant-flow components used in each section.

The valve-adjustment instructions distinguish the cylinder positions and valve groups used for the different Cummins engines. Injection-pump timing is shown through gear-alignment and TDC illustrations; it is not presented as a complete pump removal, installation, and calibration procedure.

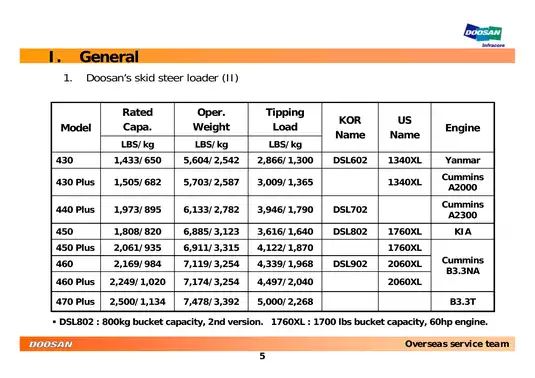

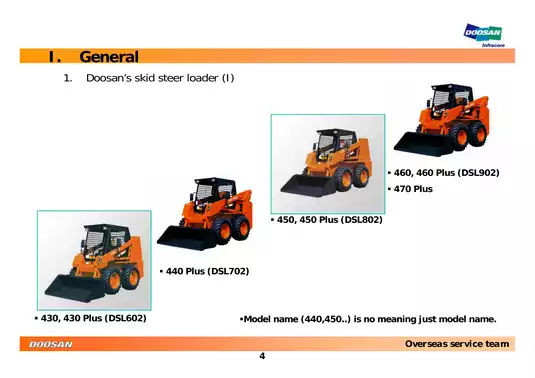

Yanmar and KIA engines appear in the model comparison, while the detailed engine sections concentrate on Cummins. This is a training publication with selected service procedures, rather than a complete engine teardown and overhaul manual.

Hydraulic Circuits and Travel Response

The hydraulic sections explain power transmission from the variable-displacement HST pump to the fixed orbital motors. Separate oil-circulation layouts distinguish standard machines, the high-flow option, and joystick-controlled machines.

Sauer Danfoss pump coverage identifies charging, relief, drain, and towing-related components. The Rexroth AA20VG section adds pilot-pressure ports, anti-stall control, mechanical centering, and stroke-limiter identification.

HST oil-circulation schematics, pump internal-section views, and motor distributor-valve illustrations show how flow and component movement relate. These drawings support repair diagnosis by helping technicians distinguish charging, pilot-control, and motor circuits before interpreting a travel complaint.

The pump timing-screw illustrations show that changing the valve-plate position changes the force acting on the swash plate and the pilot pressure needed to move it. The manual warns against adjusting this screw because it changes travel response.

Chassis Layout and Operator Controls

The chassis section documents the chain-drive system, axle shafts, bearings, sprockets, and parking-brake arrangement. Pump-coupling views distinguish the coupling identified for the 430 from the other illustrated arrangement.

Conventional and vertical boom layouts are compared alongside exterior views identifying the canopy, boom lockers, and lifting points. Operator-station coverage explains gauge warnings, switch functions, manual control bars, pilot joysticks, and seat-bar interlocks.

Wiring, Preheat Controllers, and Warning Circuits

Electrical coverage includes separate preheat-controller diagrams for the A2000/A2300 and B3.3 engines. Auxiliary-control drawings show relay activity during momentary and detent operation, while monitoring-system diagrams distinguish key-on, starting, and engine-running states.

Wire-color definitions, relay-package locations, switch states, and sender resistance data support circuit tracing and component checks. The electrical section provides operating explanations and reference values rather than a complete sequence of diagnostic tests.

Servicing heavy equipment involves significant crush hazards and high-pressure fluid risks. The training notes direct users to the machine’s operation and maintenance manual for safety information before operation.

A Preview of Valve and Sender Reference Values

For the A2000/A2300 valve-adjustment procedure, the listed intake and exhaust clearance is 0.3 mm. The B3.3 procedure uses separate intake and exhaust settings of 0.35 mm and 0.50 mm.

The electrical section gives engine thermal-sender resistance values of 118 Ω at 80 °C and 45 Ω at 115 °C, providing component-specific reference data alongside the circuit drawings.
