Doosan DX225LC Professional Shop Manual (2006) – 798 Pages | S/N 5001+ | Instant Technical Access

DOOSAN DX225LC Shop Manual - 2006 Edition

This technical publication provides authoritative factory procedures for the maintenance, diagnostic testing, and overhaul of the DX225LC crawler excavator. A critical unique maintenance insight involves the disassembly of the main control valve: technicians must utilize an industrial drier to heat the spool surface to 200° - 250°C (392° - 482°F) to neutralize factory-applied adhesives on threaded portions. Adhering to this thermal release protocol is vital for uptime, as it prevents irreparable thread galling or spool deformation during hydraulic system service.

Technical Applicability & Serial Ranges

The engineering data and service tolerances contained herein are restricted to the following model configurations and designated serial prefixes:

Tier 2 Technical Generation - 5001 Platform

• DX225LC (Standard Chassis): Serial Number 5001 and Up
• DX225NLC (Narrow Chassis): Serial Number 5001 and Up

Cross-Platform System Validity

• DX Series Heavy Excavator Group: Specific logic for the e-EPOS controller and hydraulic relief settings also applies to the DX300LC through DX520LC range (Serial 5001+).

System Architecture & Operational ROI

• Hydraulic Precision Benchmarks: Includes exact relief valve settings—330 bar standard and 350 bar during Power Boost—to ensure the machine maintains maximum breakout force.
• Undercarriage Lifecycle Management: Detailed wear limit tables for track links, bushings, and rollers allow for data-driven overhaul scheduling.
• Safety Compliance standards: Integration of nitrogen accumulator discharge protocols and high-pressure venting ensures technician safety during major component removal.

Document Metadata

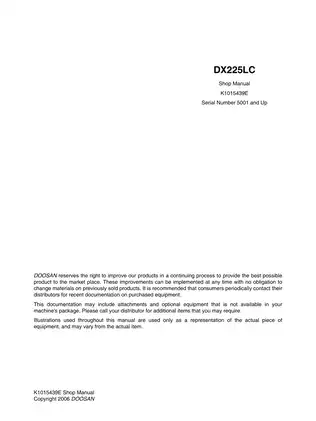

• Publication Number: K1015439E
• Format: Technical Shop Manual
• Release Date: 2006 (Copyright DOOSAN)

Technical Depth & Factory Benchmarks

Diagnostic cycles must be performed at a stabilized engine speed of 1,900 RPM (Standard) or 1,980 RPM (Power Mode). Performance verification requires measuring swing speed benchmarks, which are factory-set at 15 to 18 seconds for three complete rotations, and monitoring hydraulic oil temperature to ensure it remains within the 45° to 55°C (113° to 131°F) testing window.

Visual Navigation Aids

• Circuit Logic Mapping: Comprehensive hydraulic schematics detailing pilot control lines, travel motor crossover valves, and pump regulator functions.
• Electrical Architecture: Full-scale wiring diagrams for the monitoring system and e-EPOS interface.
• Geometric Illustrations: Exploded views of the swing reduction gear and main pump coupling for precise assembly sequence.

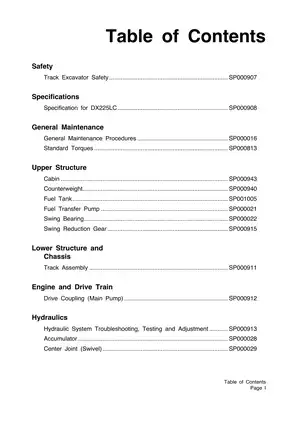

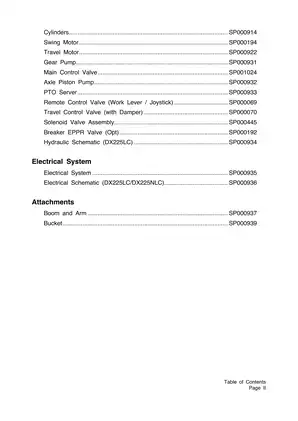

Table of Contents

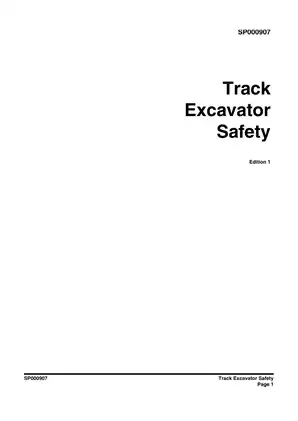

• Safety: Track Excavator Safety, Hazard Identification.
• Specifications: Machine Dimensions, Performance Standards.
• General Maintenance: Standard Torque Values, Inspection Cycles.
• Upper Structure: Counterweight, Fuel System, Swing Bearing, Swing Reduction Gear.
• Lower Structure: Track Assembly, Idlers, and Rollers.
• Engine and Drive Train: Drive Coupling and Pump Integration.
• Hydraulics: Accumulator Service, Center Joint, Swing/Travel Motors, Main Control Valve.
• Electrical System: e-EPOS Control Logic, Electrical Schematics.
• Attachments: Boom, Arm, and Bucket Linkage Data.

Operational Limits & Specifications

• Pressure Calibration:
  • Main Relief Valve: 330 - 350 bar (4,785 - 5,075 psi)
  • Pilot Circuit: 40 bar (570 psi)
• Fluid Parameters:
  • Swing Reduction Gear: 3.8 Liters (EP80W/90)
  • AC System: 800g R134a Refrigerant
• Torque Sequences:
  • Swing Bearing Mounting Bolts: 55 kg•m (398 ft lb)
  • Travel Motor Bolts: 35.5 kg•m

FAQ

Does this manual cover all production series for the DX225LC model? The documentation is specifically engineered for the DX225LC crawler excavator starting from Serial Number 5001 and Up. It serves as the primary technical authority for this production generation, ensuring that all service procedures and component tolerances align with the specific architecture of machines within this serial range.

What are the critical hydraulic pressure settings for the DX225LC system? Technical diagnostics require verifying that the main relief valve is set to a standard pressure of 330 bar (4,785 psi). During high-demand operations, the Power Boost function increases this threshold to 350 bar (5,075 psi), while the swing relief circuit is strictly regulated at 270 kg/cm² (3,840 psi) to maintain structural integrity during rotation.

Can I find comprehensive documentation for the e-EPOS controller and electrical system? Yes, the manual includes a dedicated Electrical System section that details the e-EPOS (Electronic Power Optimizing System) control logic. It provides full-scale electrical schematics and monitoring system layouts, which are essential for troubleshooting the interface between the engine's electronic governor and the hydraulic pump regulators.

What is the specialized procedure for disassembling the Main Control Valve (MCV) spools? To safely remove the spool ends, the manual specifies a critical thermal procedure where an industrial drier must be used to heat the area to a range of 200°C to 250°C (392°F to 482°F). This step is mandatory to neutralize the high-strength factory adhesives applied to the threads, preventing the hardware damage that would occur if forced disassembly were attempted cold.

How does digital access to this Shop Manual improve repair efficiency for field technicians? Instant digital access allows technicians to immediately isolate and print high-resolution components such as the swing reduction gear exploded views or the 20-meter travel motor timing benchmarks. This eliminates downtime by providing immediate on-site access to specific torque sequences—like the 55 kg•m requirement for swing bearing mounting bolts—ensuring repairs meet factory standards without needing to transport heavy physical volumes.
