Daewoo Leganza 1997–2002 Service & Repair Manual Collection

6,398 Pages • ZIP Download: 139 Printable PDFs • 199.49 MB

4.5starstarstarstarstar_half(2)
$18.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Daewoo Models Covered & Key Technical Specifications

Model: Leganza

Sub-models / Variants: SX, CDX

Model Years: 1997–2002 (1997, 1998, 1999, 2000, 2001, 2002)

Transaxle variants: Five-speed manual: MF (2.0L SOHC), FC (2.0L DOHC); ZF 4HP14 automatic: VB (2.0L SOHC), VC (2.0L DOHC); Aisin 50-40LE automatic: ZA (2.2L DOHC).


  • Starter no-load test current: 40–90 amps @ 12.2 Volts

  • Starter drive pinion speed: 3,200–4,800 rpm

  • Solenoid hold-in windings current: 12–20 amps @ 12.2 Volts

  • Solenoid pull-in windings current: 60–90 amps @ 12.2 Volts

  • Starter-to-engine block bolt torque: 45 Nm (33 ft. lbs.)

  • Starter-to-transmission bolt torque: 50 Nm (37 ft. lbs.)

  • Starter pinion clearance: 0.25–3.56 mm (0.01–0.14 in.)

  • Starter solenoid assembly screws torque: 8 Nm (71 INCH lbs.)

Daewoo Manual Features & Selected Content Preview

Publication Pages
Leganza MY2000 Service Manual — 2.0L SOHC, 2.0L DOHC, and 2.2L DOHC material 2,487
Leganza Service Manual II — steering, HVAC, restraints, body, and accessories 700
1999–2001 Starting & Charging Systems: Starter — Leganza 22
1999 Leganza SX System Wiring Diagrams 87
1999–2002 Engines: 2.2L DOHC 4-Cylinder 93
Daewoo 2.2L 4-Cylinder Timing Belt 10
1999 Leganza SX Engine Performance: Removal & Installation 48
Split service sections — 129 PDFs covering engine and vehicle systems 2,509
Illustrated parts catalog — SX 2.0L SOHC and CDX 2.0L DOHC applications 395
Generic OBD-II Trouble Codes — general reference 33
GM Codes — general reference 14

The service volumes provide repair procedures, while the separate circuit sheets and illustrated catalog support electrical fault tracing and part-number selection.

Coverage differences: This is a mixed repair-reference collection rather than one uniform 1997–2002 publication. The parts catalog’s SX/CDX engine assignments apply to its 2.0L applications; the 1999 SX extracts include 2.2L material. The two general code lists are references, not Leganza-specific diagnostic procedures.

PDF Search, Chapter Links, and Package Contents

Search and diagram detail: Searchable text is available in the five Leganza extracts and 129 section PDFs; diagram labels are not consistently searchable. Text search is unreliable in the main volume and unavailable in Service Manual II, the parts catalog, and both code lists. Only the main volume has chapter bookmarks; its INDEX link targets a missing external file. Small wiring labels in the checked examples require zooming.

The ZIP download contains 139 printable PDFs totaling 6,398 pages, including forewords, blank pages, and indexes. Of these, 130 PDFs are inside the nested archive. Combined volumes, section files, and extracts repeat some content.


Engine Overhaul, Transaxle Diagnosis, and Circuit References

These are selected repair and reference topics. Other sections address water-leak diagnosis and wind-noise correction.

  • Engine repair: Step-by-step procedures cover timing-belt replacement and adjustment, engine removal, cylinder-head and valve-train service, oil-pump repair, and piston, connecting-rod, and crankshaft inspection.

  • Transaxles and clutch: ZF 4HP14 and Aisin 50-40LE automatic material accompanies five-speed manual transaxle disassembly, shaft and synchronizer repair, final-drive work, and clutch service.

  • Brakes, suspension, and steering: Wheel alignment, front and rear suspension, hydraulic brake bleeding, ABS and traction-control diagnosis, power-steering pressure and leak tests, pump repair, rack-and-pinion service, and steering-column overhaul.

  • Engine controls: Fuel-system diagnosis, ECM and sensor testing, ignition checks, emissions controls, DTC fault isolation, and component removal and installation procedures.

  • Starting, charging, and wiring: No-crank flowcharts, battery load testing, generator output checks, starter overhaul, and 43 numbered circuit figures in the separate wiring reference.

  • HVAC, restraints, and body: Manual and automatic climate-control diagnosis, refrigerant pressure-test references, door-motor and sensor service, V5 compressor overhaul, restraint-system diagnosis, and body-component procedures.

  • Parts identification: Exploded assembly views, part numbers, option codes, effective-production dates, and manual-versus-four-speed-automatic application distinctions in the illustrated catalog.

The diagnostic depth, internal transaxle procedures, refrigerant-system work, and reliance on scan tools, pressure gauges, pullers, installers, and holding fixtures make this material best suited to professional technicians and experienced owners already equipped for advanced repair work.

Engine Diagnosis and Internal Transaxle Repair

Compression and oil-pressure diagnosis accompany the mechanical repair sections. The engine-performance extract details removal and installation of the fuel tank, pump, injectors, throttle body, oxygen sensors, EGR valve, crankshaft and camshaft sensors, and ignition components.

Aisin 50-40LE coverage extends to line-pressure and leak testing, transmission DTC charts, valve-body service, and internal clutch, planetary-gear, differential, and bearing overhaul procedures.

Engine-tool references include the J-28467-B support fixture, KM-348 valve spring compressor, and KM-470-B angular torque gauge. Drivetrain references include the KM-498-B pressure gauge, KM-553-A fifth-gear puller, and KM-698 transmission spring compressor.

Related chapters supply fastener-torque tables, fluid specifications, electrical test values, pressure-test data, wear limits, clearances, and component inspection criteria.

Starter Fault Isolation and Electrical Drawings

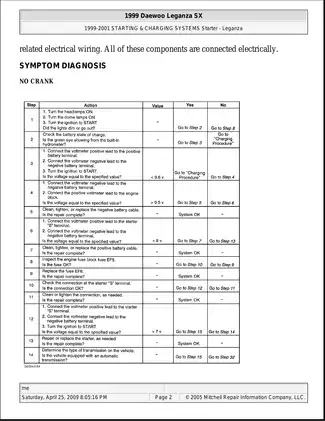

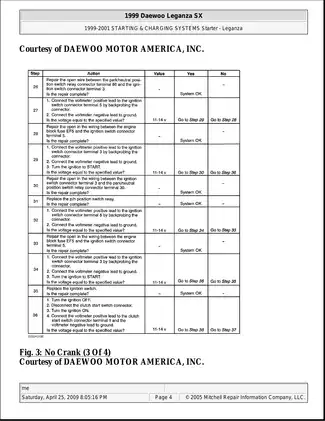

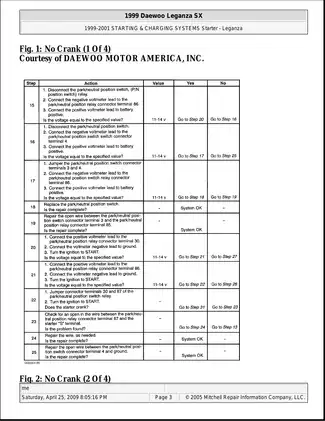

The no-crank charts and no-load test interpretation help distinguish circuit faults from internal starter problems when selecting a repair. Starter removal, disassembly, inspection, and reassembly are covered.

The starter reference’s 19 figures show the assembly, brush holder, solenoid, planetary gears, driveshaft bearing, drive pinion, clearance measurement, test circuit, and starting-system wiring.

Electrical references include ABS circuits and EBCM connector-face views, Aisin transmission-control-module schematics, automatic-temperature-control sensor and defogger diagrams, starting and charging schematics, and multi-page 2.2L engine-performance circuits. The standalone wiring reference also covers anti-theft, cooling-fan, instrument-cluster, and supplemental-restraint circuits.

Timing-Belt and Starter Repair Cautions

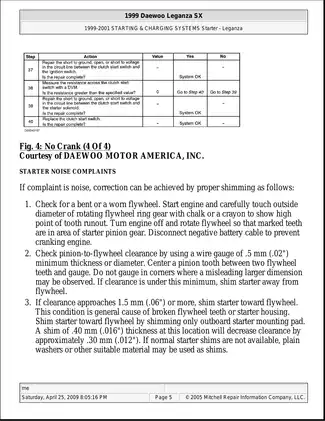

The 2.2L timing material identifies an interference engine and warns that independent crankshaft or camshaft rotation with the belt removed, or incorrect camshaft-sprocket indexing, can cause internal damage. The starter-noise section explains how incorrect pinion-to-flywheel clearance can damage the ring-gear teeth or starter housing.

Disconnect the battery before working on starting, charging, restraint, or exposed electrical circuits. Fuel-system pressure must be relieved before fuel lines or injection components are opened.

Aisin Idle Line-Pressure Examples

For the Aisin 50-40LE pressure check with the engine warmed up, the specification table lists idle line pressure of 50–58 psi in Drive and 85–100 psi in Reverse. Separate stall-pressure specifications and the associated test procedure are also included.
