Yamaha Golf Cart G11 A / G14 A/E / G16 A/E / G19 E / G20 A, 1996–2002 Service Manual Set (P/N LIT-19616-00-00)

Use the supplements alongside the G14 base manual for the applicable model. The G11A and G20A publications also require the included G16 supplement for their shared engine and powertrain procedures.

Supplement scope: The G11A and G20A sections are not stand-alone repair manuals. They provide model-specific maintenance charts, specifications, cable/wire routing and emission-control layouts, with G11A towbar information and a G20A wiring diagram; their repair instructions depend on the earlier publications.

PDF Search, Bookmarks and Diagram Detail

Text access and navigation: Manual text is not searchable. Embedded bookmarks cover the publications and major chapters, although some targets are offset. Small wiring-diagram labels are readable when enlarged.

The ZIP contains one printable, English-language, 504-page PDF. This total includes the publications listed above, three shared cover/front-matter pages, one trailing blank page and two non-manual supplementary pages.

Gas Powertrain Repair and Electric-Drive Diagnosis

These selected content highlights outline the main workshop coverage. Other included topics range from oil-level indicator diagnosis to cable lubrication.

• Gas engine overhaul: Step-by-step procedures for engine removal, cylinder-head and valve-seat service, piston and crankshaft inspection, timing-gear alignment, reassembly and final adjustment.

• Clutch and transmission repair: Primary- and secondary-sheave service, drive-belt inspection, transmission disassembly, differential inspection and model-specific reassembly procedures.

• Carburetion and fuel systems: Mikuni carburetor removal, disassembly, float and needle inspection, installation, cable adjustment, fuel-pump testing and speed-limiter service.

• Electric-drive service: Traction-motor removal and internal inspection, FET-controller diagnosis, battery and charger checks, and throttle-position, speed-sensor and switching-circuit tests.

• Brakes, steering and chassis: Self-adjusting drum brakes, pedal controls, wheel bearings, rear axles, steering-gear repair, wheel alignment, body panels and suspension service.

• Troubleshooting and shop data: Symptom charts, maintenance schedules, special-tool listings, torque tables, lubricant specifications, wear limits, electrical test values and wiring diagrams.

Written for authorized Yamaha dealers and qualified mechanics, these publications assume a working knowledge of golf-car service and access to the specified tools and test equipment.

G14 and G16 Gas-Model Service

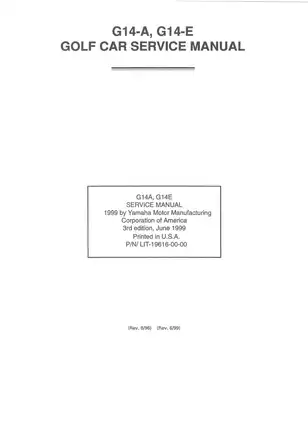

The G14 base manual provides the nine-chapter foundation, from general information and periodic adjustment through chassis, powertrain, engine overhaul, carburetion, electrical diagnosis, troubleshooting and specifications.

The G16 supplement supplies the changes for its gas engine, primary clutch, transmission, carburetor and TCI ignition. Its transmission section distinguishes in-chassis service from removal of the complete assembly; G16E work relies largely on the included G14E material.

Carburetor differences: The G16A float height is factory-set, with component replacement specified when it falls outside the stated range. Throttle-valve service requires carburetor replacement.

The G16A cautions address slider damage from overheating the clutch spider and broken float stanchions from mishandling the staked carburetor float pin.

Traction Motors, Controllers and Charging Faults

The G14E material explains its FET control system and provides motor, throttle-sensor, solenoid, charging-receptacle and direction-switch checks. Battery discharge-testing instructions include temperature-adjustment charts and recording sheets for individual battery readings.

The G19E supplement addresses its 48-volt GE motor, speed sensor, controller and automatic charger. Charger LED tables distinguish normal charging stages from abnormal cycles, while diagnostic sections separate rough acceleration, reduced speed, one-direction operation and no-run conditions according to solenoid response.

Rollaway-control diagnosis: Speed-sensor wiring, output and magnet checks help distinguish sensor faults from controller faults when the car fails to slow downhill. The text also warns that probing the controller plug carelessly can damage its female terminals and introduce further faults.

Electric-drive work requires securing the vehicle and discharging the controller capacitor before contact with power components. The gas-model sections address fuel-fire and rotating-drive hazards.

Assembly Drawings and Required Shop Tools

Illustrations include primary- and secondary-sheave exploded views, the G16A transmission/differential assembly, Main Metering System and Float System sections, and traction-motor layouts. Cable-routing drawings accompany wiring diagrams for G14-A, G14-E, G16A, G19E and G20A.

Tool identification: Listings name the G16A Tapered Clutch Holder YS-38518 and Clutch Spider Separator YG-42131. Electrical work references Pocket Tester YU-3112-C, Dynamic Spark Tester YM-34487 and G19E Speed Sensor Test Cord YG-42221, allowing the required equipment to be identified before work begins.

Maintenance charts organize service by rounds, operating hours, mileage and calendar time. Reference tables provide component-specific tightening sequences, approved lubricants, capacities, running clearances and inspection limits.

Some supplement cross-references identify the G14 manual as LIT-19616-00-70.

Examples of Head Inspection and Motor Test Data

For G16A cylinder-head inspection, the specified warp limit is less than 0.03 mm (0.001 in). Its valve section separately identifies the applicable seat cutters and inspection limits.

The G19E traction-motor testing section specifies field-coil resistance between F1 and F2 as 0.9–1.1 ohms at 20°C (68°F), alongside separate armature and insulation checks.
