1996–2007 Yamaha G2 & G9 Golf Car Manual Collection (P/N LIT-19616-G9-93)

The service material supplies repair procedures, while the owner's manuals cover operation and routine care. The model-specific parts catalogs and change bulletins support component identification alongside those procedures.

Coverage distinction: The broader identification charts include other Yamaha models for identification purposes; they do not extend the repair coverage to those models.

Gas Powertrain, Electric Drive and Chassis Service

• Engine repair: Engine removal, cylinder-head disassembly, valve-seat refacing, piston and crankshaft inspection, and camshaft/balancer timing.

• Carburetion: Carburetor disassembly, float-height adjustment, diaphragm fuel-pump overhaul, and throttle, choke and governor adjustments.

• Drive train: Primary and secondary sheave rebuilding, transmission and differential disassembly, and the serial-specific G9-EJ Dana axle changes.

• Chassis service: Brake-shoe and parking-brake adjustment, steering gearbox servicing, steering-knuckle inspection, and wheel-bearing replacement.

• Electrical diagnosis: Starter-generator and ignition tests, G.E. and Hitachi traction-motor inspection, and solenoid-relay and speed-controller checks.

• Diagnostic illustrations: G2-A/G2-E circuit diagrams, the G9-EC controller circuit, carburetor section views, cable-routing layouts and exploded assembly drawings.

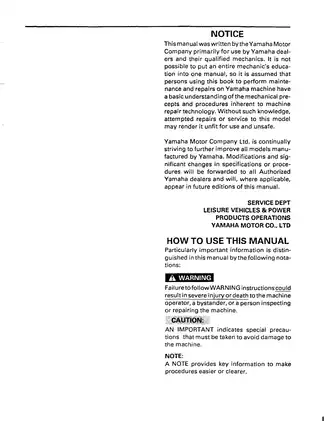

Yamaha wrote the service sections for dealers and qualified mechanics with basic repair knowledge; the owner's manuals address operation and minor maintenance.

Engine, Carburetor and Sheave Work

Internal engine coverage includes valve-guide inspection, connecting-rod bearing selection and piston-to-cylinder clearance checks. Component torque tables cover cylinder-head and transmission-case hardware, alongside wear limits and reduction-gear specifications.

The sheave procedures identify the primary sheave puller YG-01876 and secondary sheave holder YG-40103, with spring-preload and ramp-shoe inspection details. Primary-sheave notes warn that grease on the link-weight pivots attracts dirt and causes premature wear.

The carburetor chapter also warns that removing the clinched throttle-valve screws damages the shaft and requires a repair kit.

Electric Drive and Fault Isolation

The G2-E material separates G.E. and Hitachi motor inspection, including insulation, armature and field-coil tests, brush limits and commutator checks. The G9-EC supplement explains PWM/FET control, throttle-sensor testing, current limiting and protection circuits.

Symptom-based troubleshooting covers no movement, operation in only one direction, jerky acceleration and a motor that continues running after the accelerator is released. The circuit tests help distinguish switch, solenoid, controller and motor faults before component repair is selected.

Brake and Rear-Axle Changes

The brake bulletin distinguishes earlier two-spring assemblies from the three-spring Bendix system and identifies parts that are not interchangeable. The G9-EJ transmission bulletin likewise separates the Dana rear-axle assembly from the earlier design.

These distinctions connect the serial information above with the appropriate parts drawings, helping prevent selection of incompatible brake or axle components.

Owner Checks and Parts Identification

The owner's manuals add pre-operation checks, battery-care guidance, storage and return-to-service preparation, plus maintenance record sheets. The parts catalogs pair exploded views with part numbers, quantities and application remarks.

Follow the manual's precautions for supporting the raised car and isolating battery power before service.

Examples of Engine Settings and Traction-Motor Ratings

For G2-A tune-up work, the spark-plug section specifies a 0.7–0.8 mm electrode gap, and the valve-adjustment section lists 0.1 mm intake clearance with the engine cold.

The G2-E specifications distinguish the G.E. motor's 2.2 kW at 2,450 r/min from the Hitachi motor's 2.0 kW at 2,600 r/min. The G.E. component section identifies its output as a 30-minute rating; separate motor inspection sections provide the associated electrical and wear limits.

Text Search, Bookmarks and PDF Contents

Search access and diagram detail: Parts lists and identification sheets have searchable text, while most service and owner's-manual pages do not. Bookmarks open documents and parts sections; “Return” links depend on an external index file. Small wiring labels require zooming.

The collection is supplied as a 920-page printable PDF, combining the publications listed above with three additional front/end-matter pages. Covers, internal blank pages and the listed bulletins are already included in the page counts.
