Kazuma Panda, Lacoste & Falcon ATV Owner's Manual (2003–2010)
33 Pages • 1 Printable PDF (English) • Download
Kazuma Models Covered & Key Technical Specifications
Models & Model Codes: Panda (90-4SAR, 100-4SA, 110-4SAR), Lacoste (90-4SAR, 100-4SA, 110-4SAR), Falcon (90-4SAR, 100-4SA, 110-4SAR)
Sub-models / Variants: 90cc, 100cc, 110cc, 4-stroke, 3-speed semi-auto, 4-speed semi-auto, semi-auto plus reverse
Model Years: 2003–2010 (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010)
-
Engine displacement: 90 cc, 97.2 cc, 106 cc
-
Engine configuration: 4-stroke single cylinder, air-cooled
-
Fuel capacity: 4.5 L
-
Transmission: 3-speed semi-automatic with reverse (90-4SAR, 110-4SAR) or 4-speed semi-automatic (100-4SA)
-
Engine oil capacity: 700 ml (0.616 quarts) SAE 20W/50
-
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
-
Tire pressure: 50 kPa (7.2 psi)
-
Wheel bolt torque: 50–55 N·m (M10)
Kazuma Manual Features & Selected Content Preview

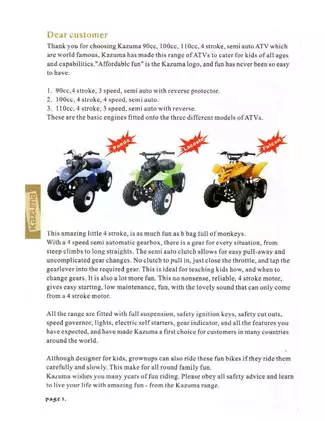

This Kazuma ATV owner's manual covers the 2003–2010 Panda, Lacoste, and Falcon semi-automatic models. The cover also names Raptor. The model tables and vehicle-specific repair sections cover the three models listed above.
PDF Navigation and Wiring Detail
Text search and diagram detail: PDF text search and embedded bookmarks are not available. Zoom in to read the small connector IDs and wire-color labels in the harness diagrams.

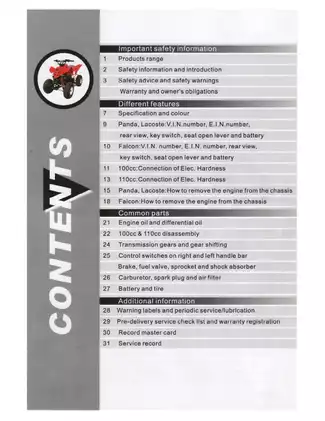

The download contains one printable English-language PDF with 33 pages. The total includes 27 main-content pages, three opening pages for the cover, safety warning, and contents, and three closing pages for pre-delivery checks, warranty registration, owner records, and service history.
Engine Removal, Harness Connections, and Routine Service
The selected topics below show the scope of the manual. It also identifies the fuel valve's on, off, and reserve positions and shows the seat release and battery location.
-
Engine repair: Step-by-step removal photos for Panda and Lacoste, a partial Falcon removal sequence, and illustrated disassembly of the 110cc engine.
-
Electrical connections: Front and rear wiring-harness diagrams, connector photographs, wire-color references, and battery wiring for the 100cc and 110cc layouts.
-
Transmission: Labeled gear-train and shift-mechanism photographs show the differences between the reverse and non-reverse assemblies.
-
Fuel and ignition: Step-by-step carburetor idle and mixture adjustment, plus spark plug service and air filter care.
-
Brakes and chassis: Brake adjuster and wheel-alignment locations, front suspension and rear shock views, tire specifications, and a periodic service and lubrication chart.
Owners can use the control and maintenance information to plan service. The brief repair captions assume mechanical familiarity, and the manual directs owners to a Kazuma-authorized dealer for servicing.
Vehicle and Engine Identification
Separate Panda/Lacoste and Falcon photographs show the vehicle identification number (VIN) and engine identification number (EIN) locations. Kazuma asks for both numbers when ordering spares so the dealer can match parts to the chassis and engine.
Engine Removal and Disassembly
The Panda/Lacoste removal sequence covers bodywork, the fuel tank, exhaust, carburetor, drive chain, electrical connections, and engine mounts. The Falcon sequence is incomplete. Printed page 19 is missing, so the photos jump from step 12 to step 25 (PDF pp. 21–22).
Left- and right-side engine views accompany the 110cc disassembly photos, which show the cylinder head, cam-chain sprocket and roller, cylinder, piston, and side covers. The engine repair section ends at disassembly. A full overhaul would require separate reassembly procedures and internal wear-limit data.
Wiring Harnesses and Ignition
The front and rear connection guides pair plug letters with photos of the CDI, ignition coil, regulator, magneto, starter relay, lights, and switches. The magneto connector is marked X in the C100HD001 harness guide and Y in the C110HD001 guide, a quick way to distinguish the two layouts. The diagrams show harness connections and connector IDs. Circuit-level pinouts and electrical diagnostic tests fall outside their scope.

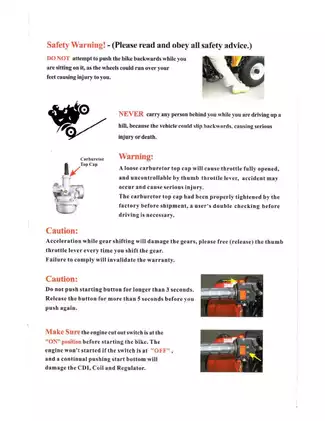

The starting cautions warn that repeated cranking with the engine cutout switch off can damage the CDI, ignition coil, and regulator. Review the manual's high-voltage ignition and fuel-handling warnings before servicing the ATV.
Carburetor, Lubrication, and Chassis Service
Left- and right-side carburetor views locate the idle and mixture screws, throttle cable adjuster, drain screw, choke, and top cap. The spark plug section lists D8EA and NGK C7HSA as interchangeable.
The lubrication section illustrates the engine dipstick and differential sight glass. It warns that incorrect oil levels can damage the engine or gearbox.
The handlebar views identify the throttle limiter, brake lever, and switch controls. The periodic chart covers checks for the steering, wheel bearings, brakes, and battery, and the pre-delivery checklist records the dealer's setup checks.
A Look at Idle, Differential Oil, and Tire Wear
The carburetor procedure gives a warm idle target of 1,500–1,600 rpm. The differential section specifies 250 mL of SAE 90 gear oil and shows the sight glass used to check the level.
For front and rear tire inspection, the manual gives a replacement threshold of less than 3 mm (0.12 in) of tread groove depth.
