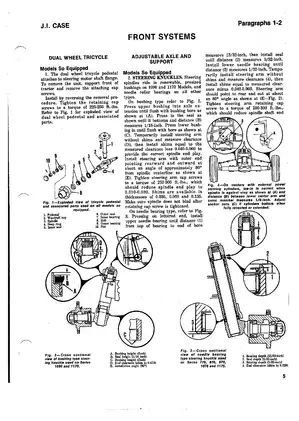

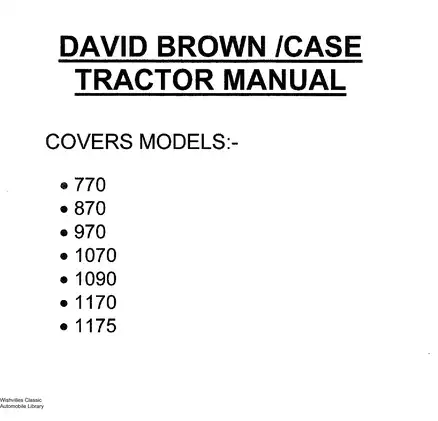

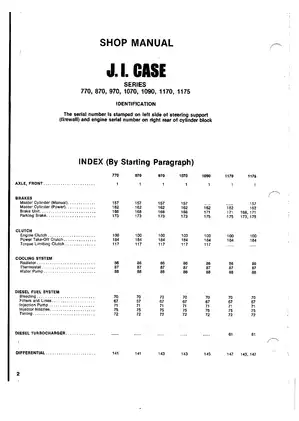

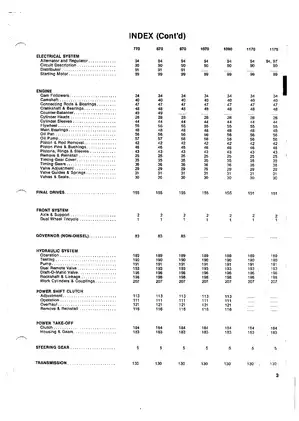

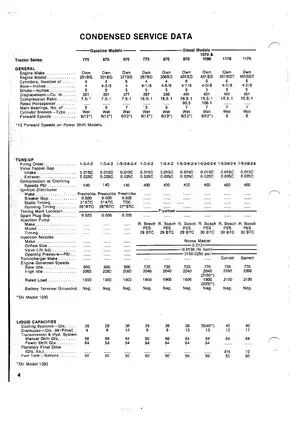

1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 1
1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 2
1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 3
1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 4
1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 5
1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual Preview image 6

1965-1970 David Brown™/Case 770, 870, 970, 1070, 1090, 1170, 1175 tractor shop manual

Models covered in this manual:

770, 870, 970, 1070, 1090, 1170, 1175, Selectamatic series / David Brown

  • David Brown 770: Produced from 1965-1970, available in select, deluxe, and orchard variants.
  • David Brown 870: Produced from 1966-1970, available in select and deluxe variants.
  • David Brown 970: Produced from 1967-1970, available in standard and deluxe models.
  • David Brown 1070: Produced from 1968-1970, mainly in a deluxe variant.
  • David Brown 1090: Introduced in 1969 and available till 1970.
  • David Brown 1170: Available from 1969-1970, with a unique turbo variant.
  • David Brown 1175: Produced in 1970, with enhanced features and functionalities.

Production year(s): 1965, 1966, 1967, 1968, 1969, 1970

File specifications

File size: 7.82 MB
File type: PDF
Language: English

Printable: Yes
Estimated download time: 0.16 Minutes
$19.99 Instant Download

Pay with Bitcoin

Product Information

Table of Contents

AXLE, FRONT (2WD)

  • Description and Operation
  • Overhaul

BRAKES

  • Adjustments, Bleed, Master Cylinder, Actuator
  • Description and Operation
  • Overhaul

CLUTCH

  • Adjustments
  • Description and Operation
  • Overhaul

COOLING SYSTEM

  • Radiator, Water Pump, Fan, Thermostat

DIESEL FUEL SYSTEM

  • Description and Operation, Adjustments, Fuel Injectors
  • Roosa Master Model DB Pump
  • CAV Pump

DIFFERENTIAL

  • Overhaul, Adjustments

ELECTRICAL SYSTEM

  • Description and Operation
  • Electrical Schematics
  • Adjustments, Testing and Diagnosis
  • Overhaul Starter and Alternator

ENGINE

  • Tune-Up, Cylinder Head, Valve Train, Engine Block, Engine Overhaul

FINAL DRIVE

  • Adjustments, Overhaul

FRONT SYSTEM

  • (Specific content to be added here)

HYDRAULIC SYSTEM

  • Adjustments, Description, Overhaul, Testing

POWER SHIFT CLUTCH

  • Description and Operation
  • Overhaul

POWER TAKE-OFF

  • Description and Operation
  • Overhaul

STEERING GEAR (MANUAL AND POWER)

  • Description and Operation
  • Overhaul

TRANSMISSION

  • Non-Power Shift - Overhaul
  • Power Shift - Adjustments, Overhaul

This 1965-1970 David Brown™ 770, 870, 970, 1070, 1090, 1170, 1175 utility tractor manual is a valuable resource for mechanics, technicians, and owners. It provides detailed specifications, operating instructions, maintenance procedures, and troubleshooting guidelines, helping users effectively service and maintain their equipment.

  • The pricing for this manual, handbooks, and repair guides is determined by the seller, and may vary on different pages. We recommend comparing prices before making a purchase.
  • Comments and ratings from other users are available at the end of the detail page, aiding in your purchase decision. Your review after purchasing can help other users make informed choices.
  • Download the repair manual now with a lifetime guarantee for the download, as outlined in our FAQs here.
  • For contacting the seller of the manual, please use our contact form, and we will handle your request.

How to Download Your Manual - Delivery Policy

**Delivery:** Download link will appear on the checkout page after your payment is complete.

Within a minute after completing the payment process, you will receive two emails from us. One for the completed payment and another with the download link. The download link is valid for 3 days.
